Removal Of Vertical Blades And Swing Motor - Daikin ARXG35E3V1B Service Manual

Indoor Unit
1.8

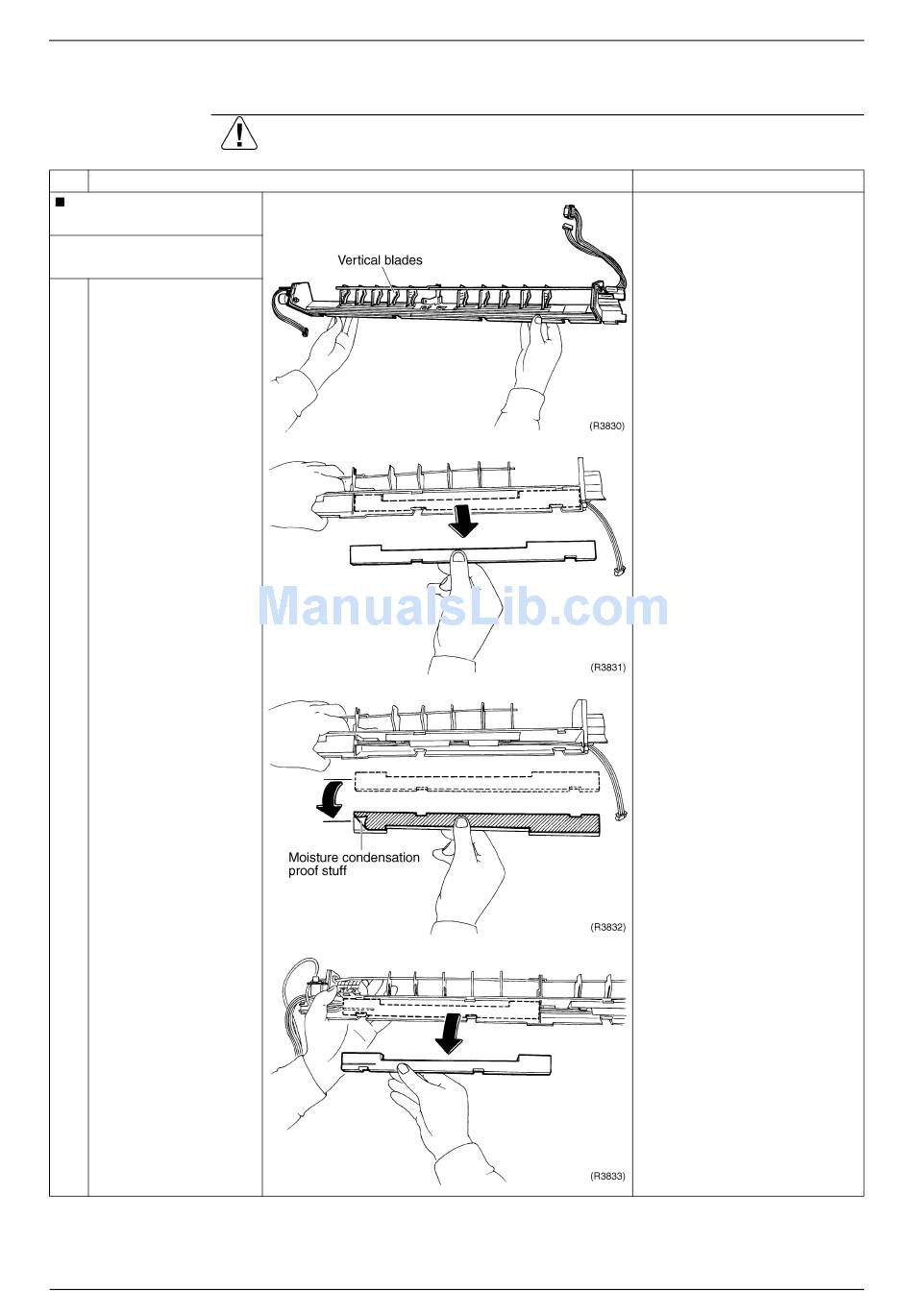

Removal of Vertical Blades and Swing Motor

Procedure
Step
Remove the assembly of
the outlet grille.
1. Remove the vertical
blades.
1
Release the 4 hooks
and remove the thermal
insulation.
2 Release the 4 hooks
and remove the thermal
insulation.
142
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
SiBE04-809
Points
Removal Procedure
