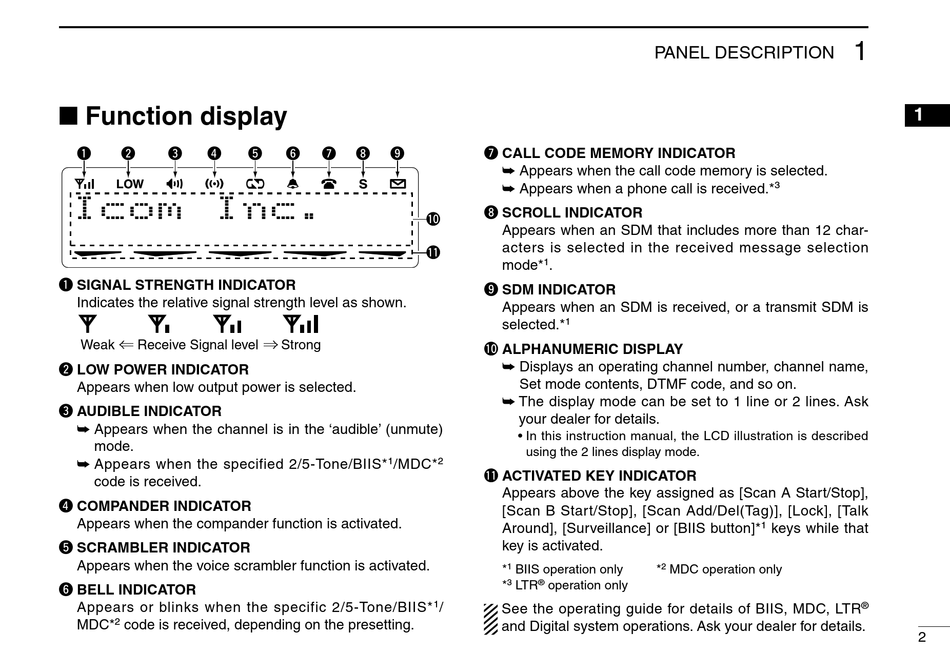

Function Display - Icom IC-F5060 SERIES Instruction Manual

■ Function display

q w e r
I c o m I n c .
q SIGNAL STRENGTH INDICATOR
Indicates the relative signal strength level as shown.
Weak Receive Signal level
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
➥ Appears when the channel is in the 'audible' (unmute)
mode.
➥ Appears when the specified 2/5-Tone/BIIS*
code is received.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
y BELL INDICATOR
Appears or blinks when the specific 2/5-Tone/BIIS*
2
MDC* code is received, depending on the presetting.
t y u i o
!0
!1
Strong
1 /MDC*
u CALL CODE MEMORY INDICATOR
➥ Appears when the call code memory is selected.
➥ Appears when a phone call is received.*
i SCROLL INDICATOR
Appears when an SDM that includes more than 12 char-
acters is selected in the received message selection
mode* 1 .
o SDM INDICATOR
Appears when an SDM is received, or a transmit SDM is
1
selected.*
!0 ALPHANUMERIC DISPLAY
➥ Displays an operating channel number, channel name,
Set mode contents, DTMF code, and so on.
➥ The display mode can be set to 1 line or 2 lines. Ask
your dealer for details.
• In this instruction manual, the LCD illustration is described
using the 2 lines display mode.
2
!1 ACTIVATED KEY INDICATOR
Appears above the key assigned as [Scan A Start/Stop],
[Scan B Start/Stop], [Scan Add/Del(Tag)], [Lock], [Talk
Around], [Surveillance] or [BIIS button]*
key is activated.
* 1 BIIS operation only
* 3 LTR ® operation only
1 /
See the operating guide for details of BIIS, MDC, LTR
and Digital system operations. Ask your dealer for details.
