2
BASIC OPERATION

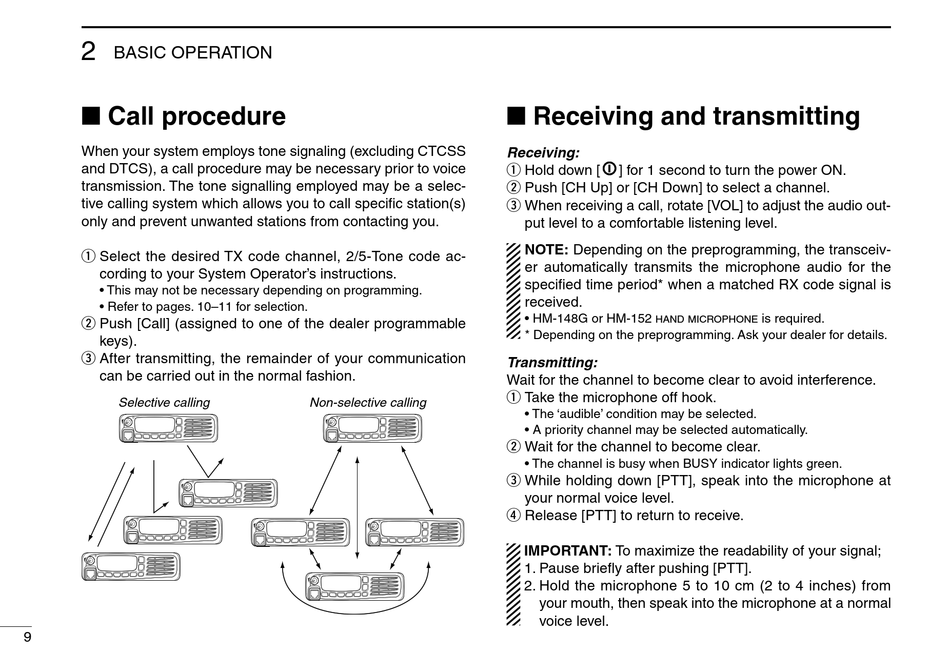

■ Call procedure

When your system employs tone signaling (excluding CTCSS
and DTCS), a call procedure may be necessary prior to voice
transmission. The tone signalling employed may be a selec-
tive calling system which allows you to call specific station(s)
only and prevent unwanted stations from contacting you.
q Select the desired TX code channel, 2/5-Tone code ac-
cording to your System Operator's instructions.
• This may not be necessary depending on programming.
• Refer to pages. 10–11 for selection.
w Push [Call] (assigned to one of the dealer programmable
keys).
e After transmitting, the remainder of your communication
can be carried out in the normal fashion.
Selective calling
9
Non-selective calling

■ Receiving and transmitting

Receiving:
q Hold down [ ] for 1 second to turn the power ON.
w Push [CH Up] or [CH Down] to select a channel.
e When receiving a call, rotate [VOL] to adjust the audio out-
put level to a comfortable listening level.
NOTE: Depending on the preprogramming, the transceiv-
er automatically transmits the microphone audio for the
specified time period* when a matched RX code signal is
received.
• HM-148G or HM-152
hand microphone
* Depending on the preprogramming. Ask your dealer for details.
Transmitting:
Wait for the channel to become clear to avoid interference.
q Take the microphone off hook.
• The 'audible' condition may be selected.
• A priority channel may be selected automatically.
w Wait for the channel to become clear.
• The channel is busy when BUSY indicator lights green.
e While holding down [PTT], speak into the microphone at
your normal voice level.
r Release [PTT] to return to receive.
IMPORTANT: To maximize the readability of your signal;
1. Pause briefly after pushing [PTT].
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak into the microphone at a normal
voice level.
is required.
