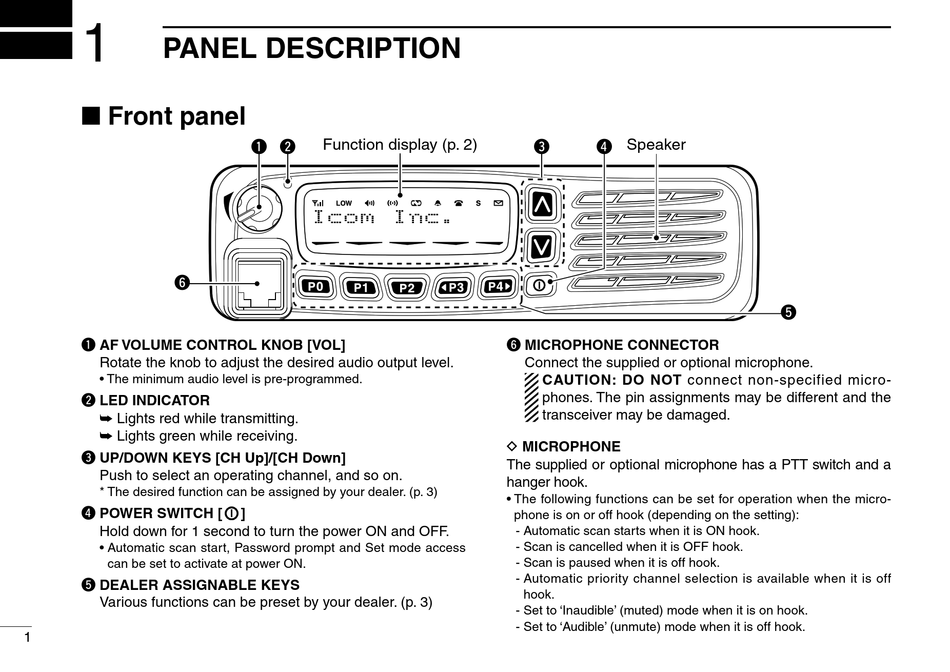

PANEL DESCRIPTION

■ Front panel

y
q AF VOLUME CONTROL KNOB [VOL]
Rotate the knob to adjust the desired audio output level.
• The minimum audio level is pre-programmed.
w LED INDICATOR
➥ Lights red while transmitting.
➥ Lights green while receiving.
e UP/DOWN KEYS [CH Up]/[CH Down]
Push to select an operating channel, and so on.
* The desired function can be assigned by your dealer. (p. 3)
r POWER SWITCH [
Hold down for 1 second to turn the power ON and OFF.
• Automatic scan start, Password prompt and Set mode access
can be set to activate at power ON.
t DEALER ASSIGNABLE KEYS
Various functions can be preset by your dealer. (p. 3)
1
Function display (p. 2)
q w
I c o m I n c .
]
Speaker
e r
y MICROPHONE CONNECTOR
Connect the supplied or optional microphone.
CAUTION: DO NOT connect non-specified micro-
phones. The pin assignments may be different and the
transceiver may be damaged.
D MICROPHONE
The supplied or optional microphone has a PTT switch and a
hanger hook.
• The following functions can be set for operation when the micro-
phone is on or off hook (depending on the setting):
- Automatic scan starts when it is ON hook.
- Scan is cancelled when it is OFF hook.
- Scan is paused when it is off hook.
- Automatic priority channel selection is available when it is off
hook.
- Set to 'Inaudible' (muted) mode when it is on hook.
- Set to 'Audible' (unmute) mode when it is off hook.
