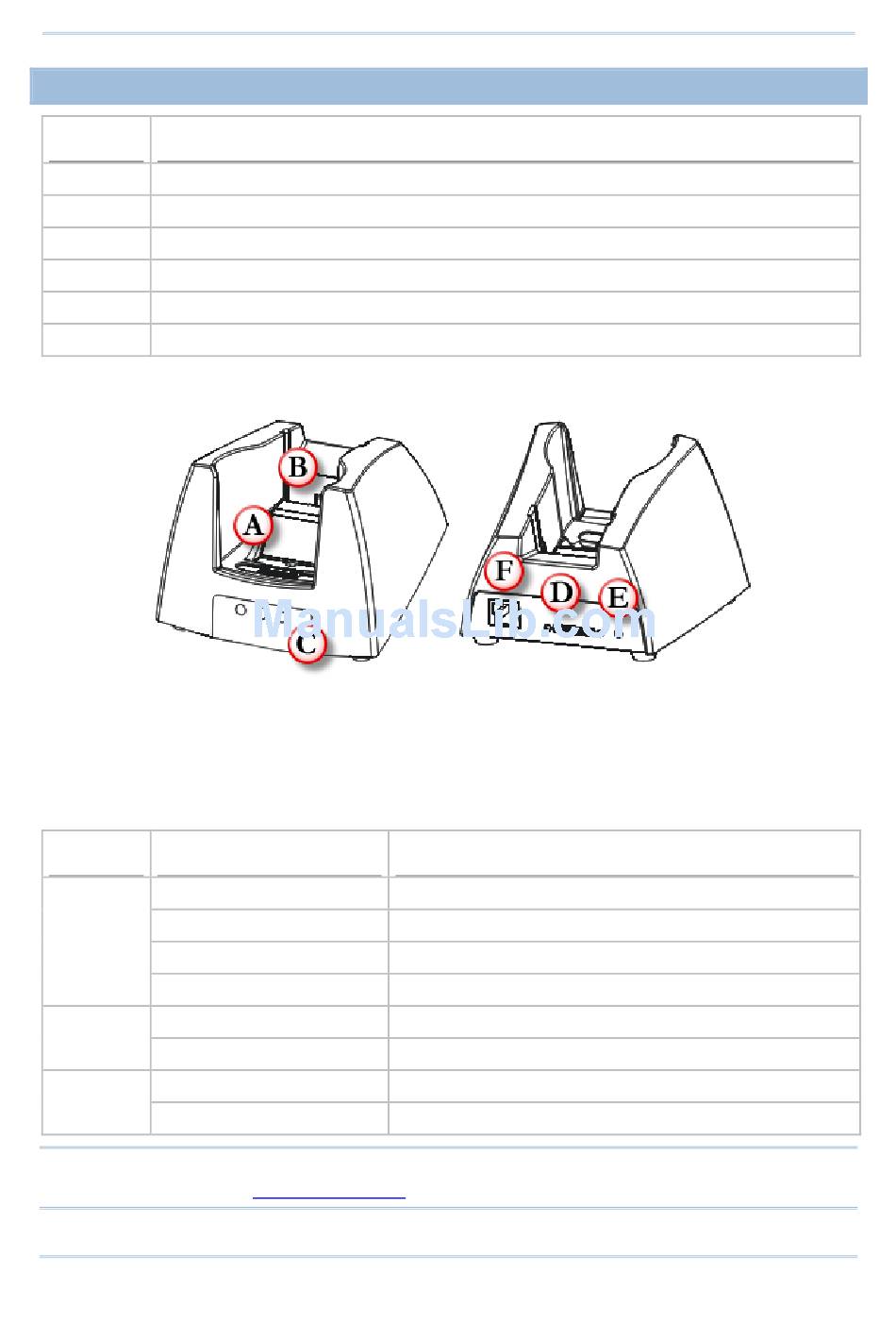

1.7.2 ETHERNET CRADLE

Item Description
A Charging slot for seating the mobile computer
B Charging slot for spare battery
C LED Indicators (POWER, DATA, READY)
D Cable Connector (for USB or RS-232)
E Power Jack
F Ethernet Port (RJ-45)
Figure 10: Ethernet Cradle
The cradle provides three LED indicators on the front panel to indicate connection status.
Indicator Status
POWER Off
Green, solid
Red, solid
Red, flashing
DATA Off
Green, flashing
READY Off
Green, solid
Note: For charging status of the mobile computer, please check the LED on top of the
screen. Refer to
Description
Power not ready
Power ready / Charging done
Charging spare battery
Error occurs
No activity
Data transmission
No activity
Connection established
1.5.1 Status LED.
