Air Arc Gouging; Connection - EWM TAURUS 355 Basic TDM Operating Instruction

Design and function
MMA welding
5.4.6

Air arc gouging

5.4.6.1

Connection

Read and observe the documentation to all system and accessory components!
During gouging, an arc burns between a carbon electrode and the workpiece, heating the workpiece until
it is molten. At the same time, the molten metal is blown out with compressed air. Special electrode
holders with a compressed-air connection and carbon electrodes are required for gouging.
Item Symbol
1
2
3
4
•
Insert the gouging torch cable plug into the "+" welding current connection socket and lock in place by
turning to the right.
•
Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
40
Description 0
Gouging torch
Connection socket, "+" welding current
Workpiece
Connection socket, "-" welding current

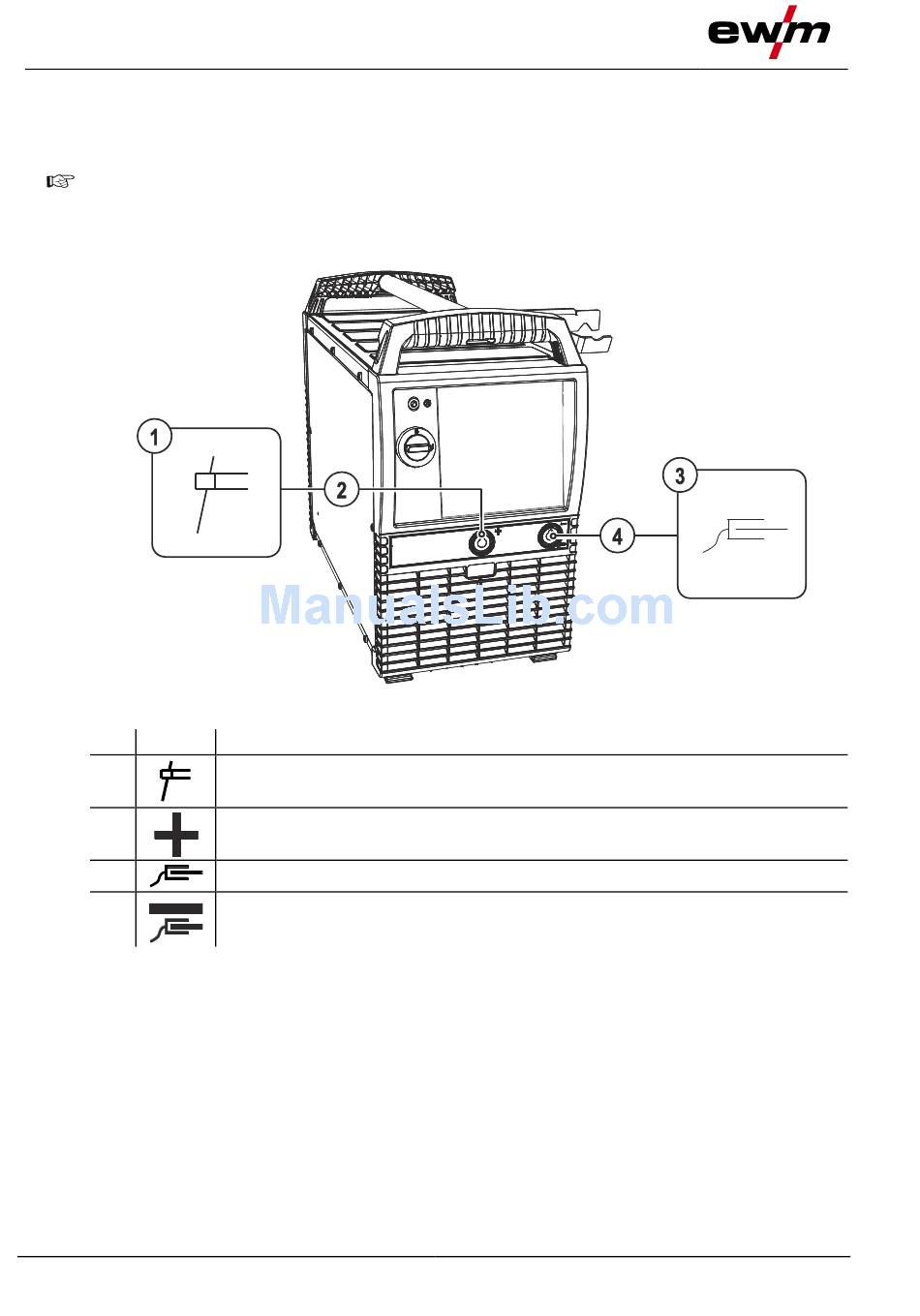

Figure 5-23
099-005221-EW501
05.09.2016
