Machine description – quick overview
Rear view

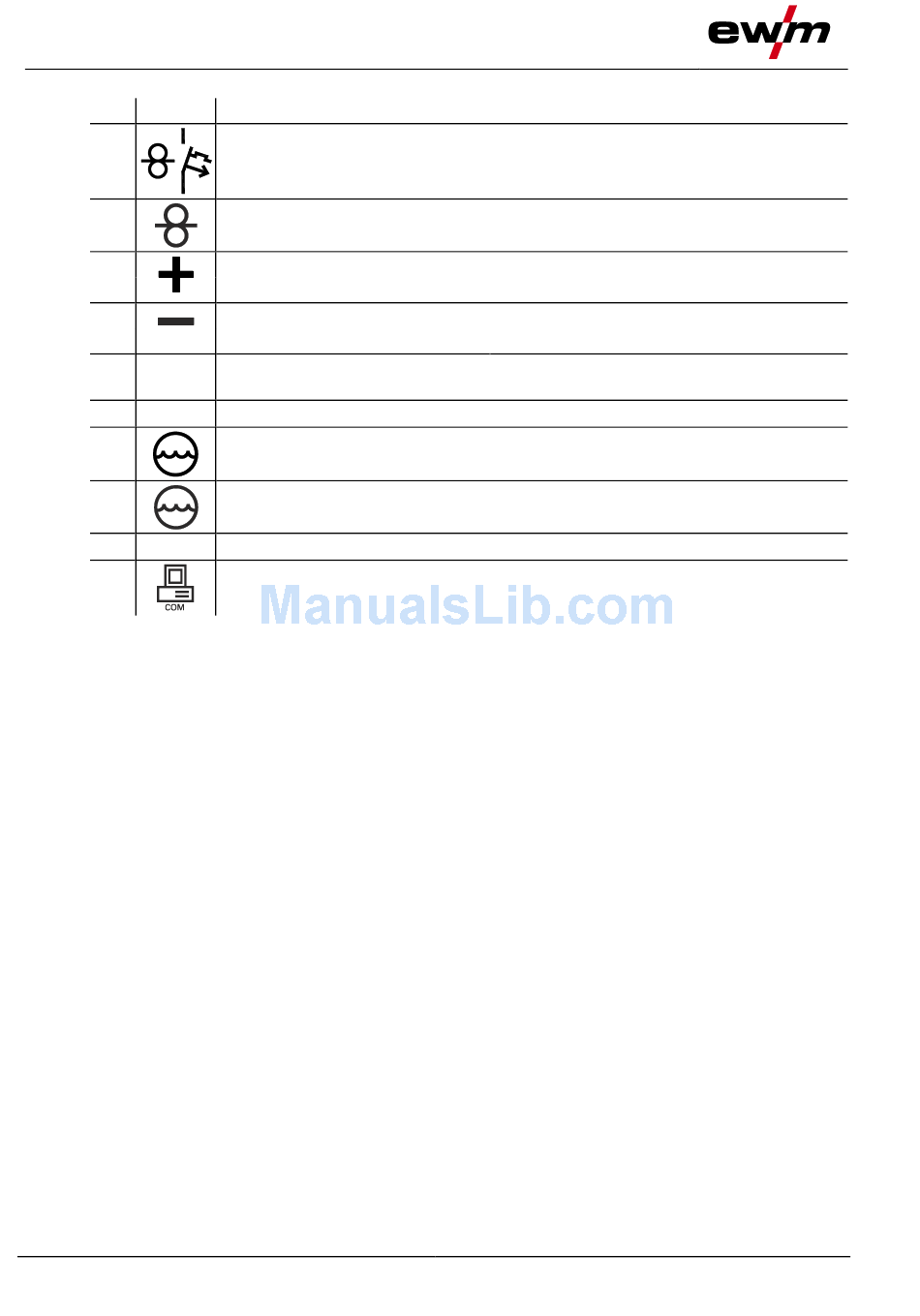

Item Symbol
1
2
3
4
5
6
7
8
9
10
18
Description 0
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
19-pole connection socket (analogue)
Wire feed unit control lead connection
Connection socket, "+" welding current
•
Standard MIG/MAG welding (intermediate hose package)
Connection socket, "-" welding current
•
MIG/MAG cored wire welding:
Stirrup
Intermediate hose package strain relief
Cooling air outlet
8-pole connection socket
Cooling unit control lead
4-pole connection socket
Cooling unit voltage supply
Mains connection cable > see 5.1.9 chapter
D-sub connection socket, 9-pole
With this machine series for maintenance purposes only (specialist staff)
Welding current to wire feed/torch
