Intermediate hose package strain relief

Missing or incorrectly fitted strain relief!
Connection sockets or connection plugs on the machine, or the intermediate tube package, may
be damaged if the strain relief is missing or incorrectly fitted. The strain relief takes the strain
from cables, plugs and sockets.
•
Check the strain relief function by pulling in all directions. Cables and hoses must have
sufficient play when the relief cord is fully stretched!
Item Symbol
1
2
3
•
Insert the end of the hose package through the strain relief of the hose package and lock by turning to
the right.
099-005221-EW501
05.09.2016
Description 0
Stirrup
Intermediate hose package strain relief
Snap hooks
Intermediate hose package strain relief > see 5.1.5 chapter
Design and function

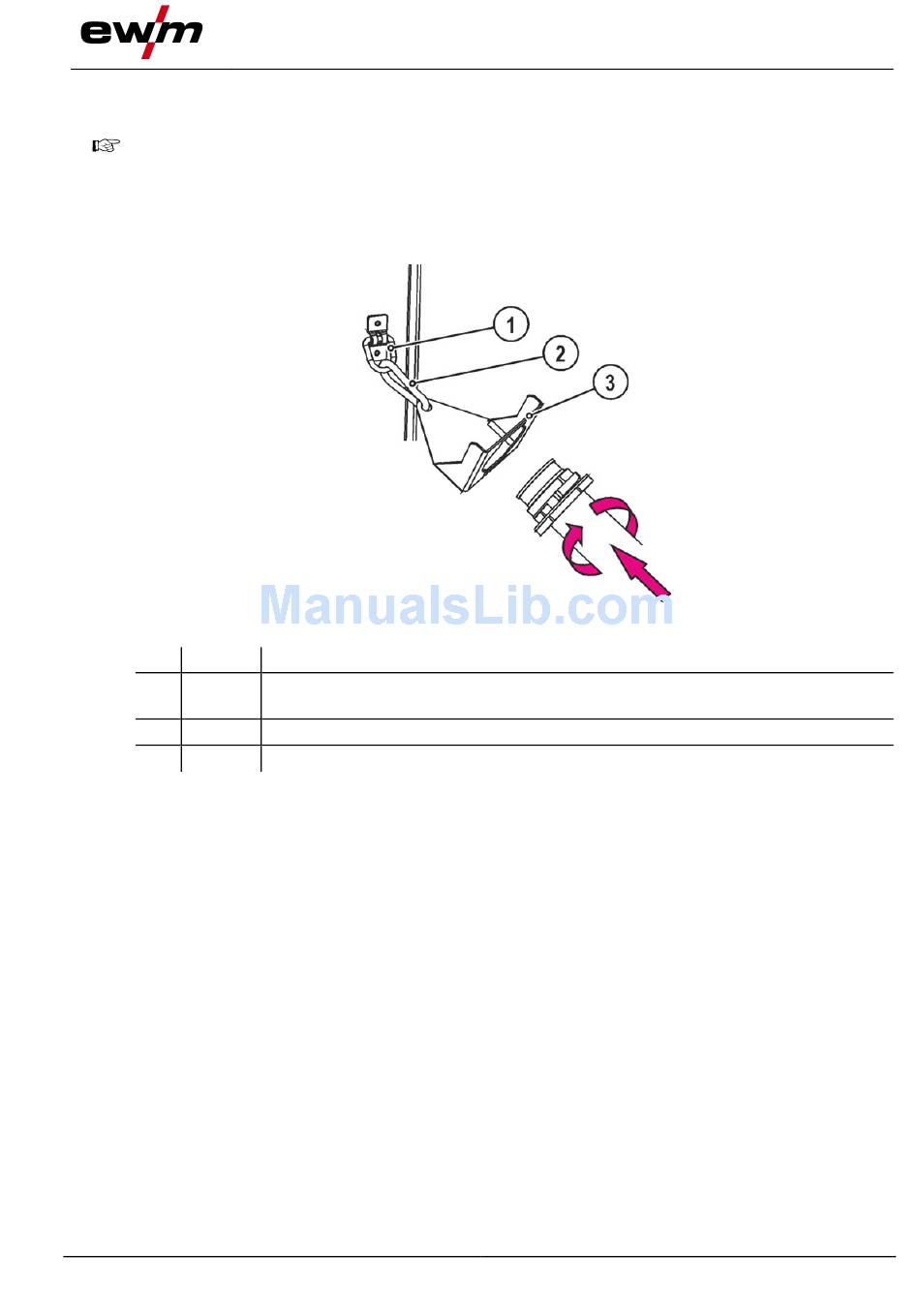

Figure 5-2
