8.
Mounting the speaker.
a.
Insert the speaker through the bottom of the hole in the ceiling that was cut in
step 2
on page 23 with the wires out of the way.
b.
Clamp the speaker to the C-ring by using a Phillips screwdriver to tighten the three
locking arms to the C-ring.

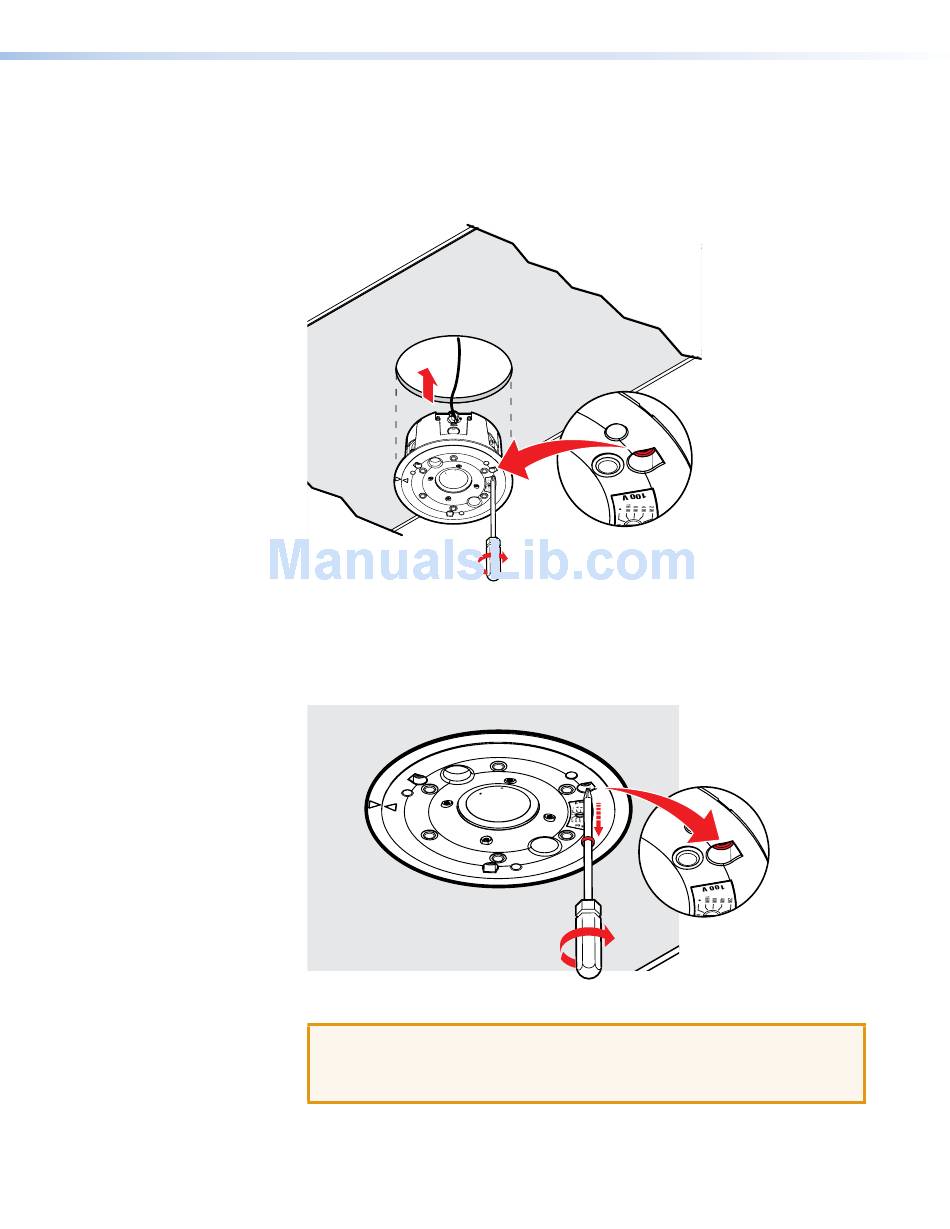

Figure 35.
Clamping the Speaker to the C-ring
Each of the three locking arm screws use an Opti-Torque indicator ring that snaps
and separates from its plastic ring when the screw is tightened to the correct
torque. The indicator ring falls down the screwdriver shaft. When this occurs, stop
tightening the screw to avoid overtightening the locking arms to the C-ring.
Figure 36.
Stop Tightening when the Opti-Torque Indicator Ring Falls
ATTENTION:
•
To avoid damaging the speaker, do not overtighten the three screws.
•
Pour éviter d'endommager l'enceinte, ne serrez pas trop les trois vis.
SF 3C LP and SF 3CT LP User Guide • Installation
28
