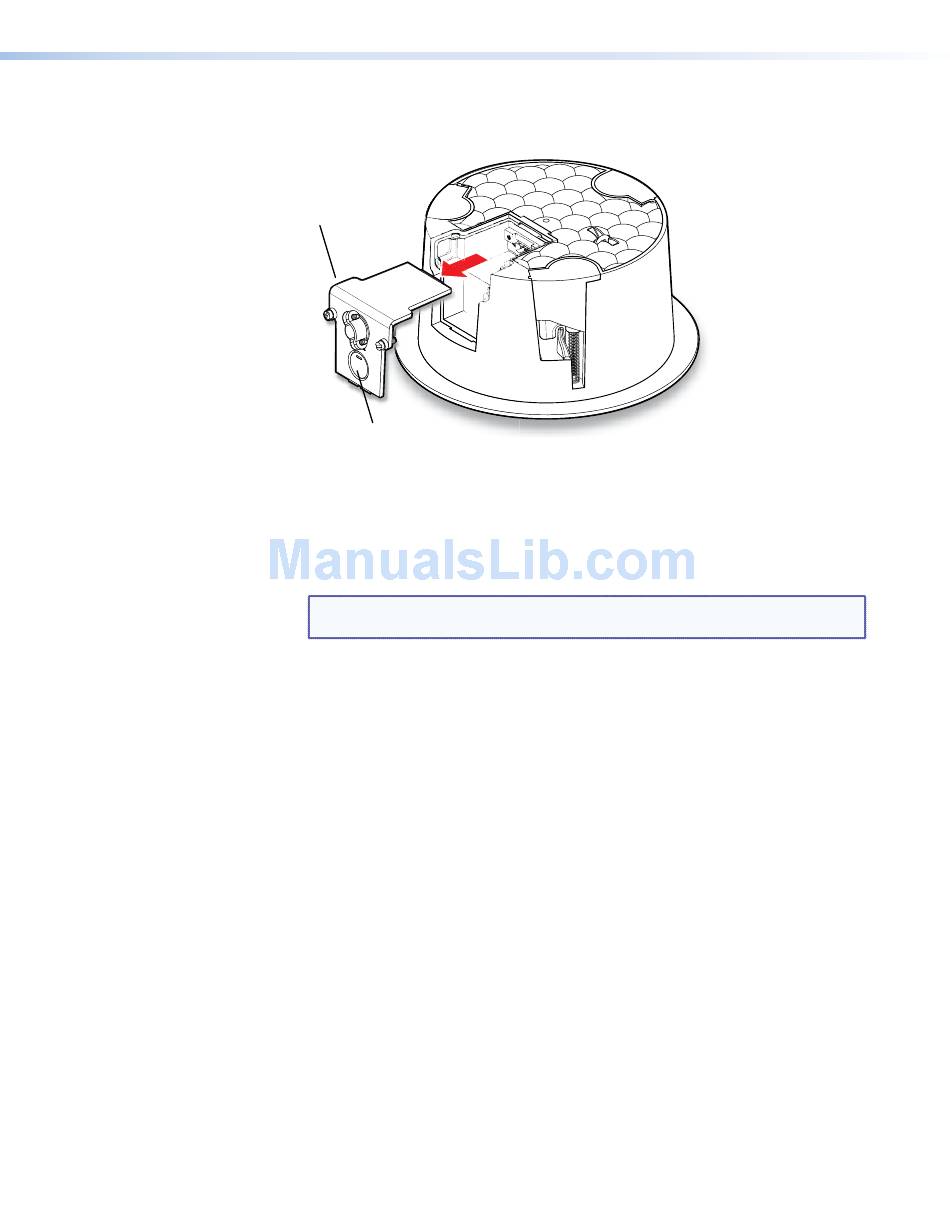

Loosen the two side cable conduit access plate screws and remove the plate

before wiring the speaker.

Remove the

cable conduit

access plate.

Alternate

Knockout

Figure 30.

Removing the Cable Conduit Access Plate

Configure the cable conduit access plate:

When not using conduit: Route the speaker wires through the cable clamp.

When using conduit: Remove the cable clamp and install the conduit into the

plate opening. Secure the conduit to the plate with the locking nut and pull the

speaker wires from the conduit.

NOTE: The plate has an alternate hole available by removing the knockout. See

step 6a

on the previous page to remove the knockout.

Strip 0.2 inches (5 mm) from the wire ends.

SF 3C LP and SF 3CT LP User Guide • Installation
