7. Attach two V-rails and one C-ring across the tile above the hole cut in
previous page, as described below.
a. Assemble two V-rail half sections so that they become one single piece:
i. Fit the tab of one end into the slot of the other end.
ii. Open the V-rail until it locks together.
iii.
Repeat this procedure for the other V-rail.

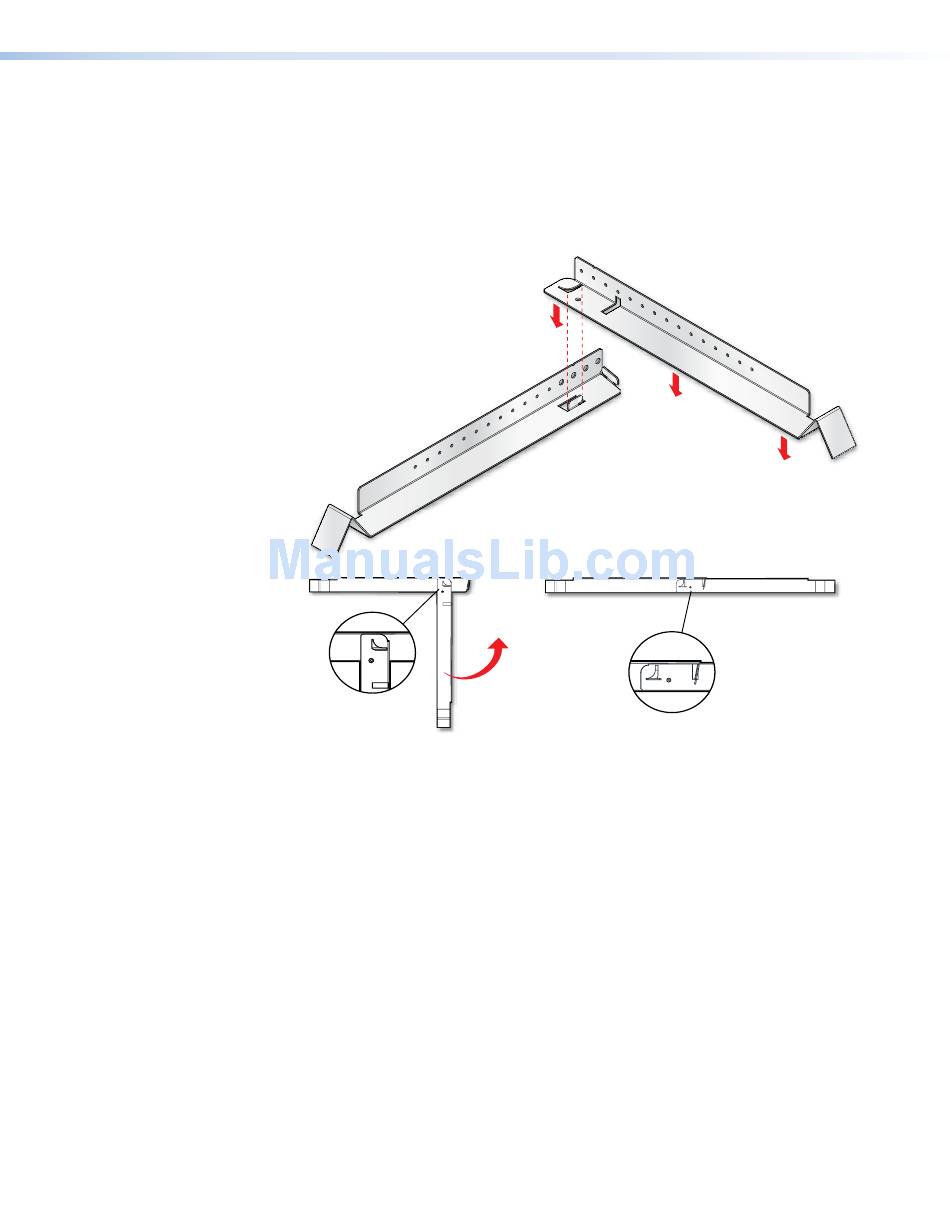

Figure 15. Assembling the V-rails
b. Remove a ceiling tile adjacent to the tile with the hole.
c. Place both assembled V-rails on the cut ceiling tile and position them equally on
either side of the hole. The ends of the V-rails go over the ceiling grid.
d. Place the C-ring assembly and position it on the two V-rails so that the C-ring is
centered over the hole.
