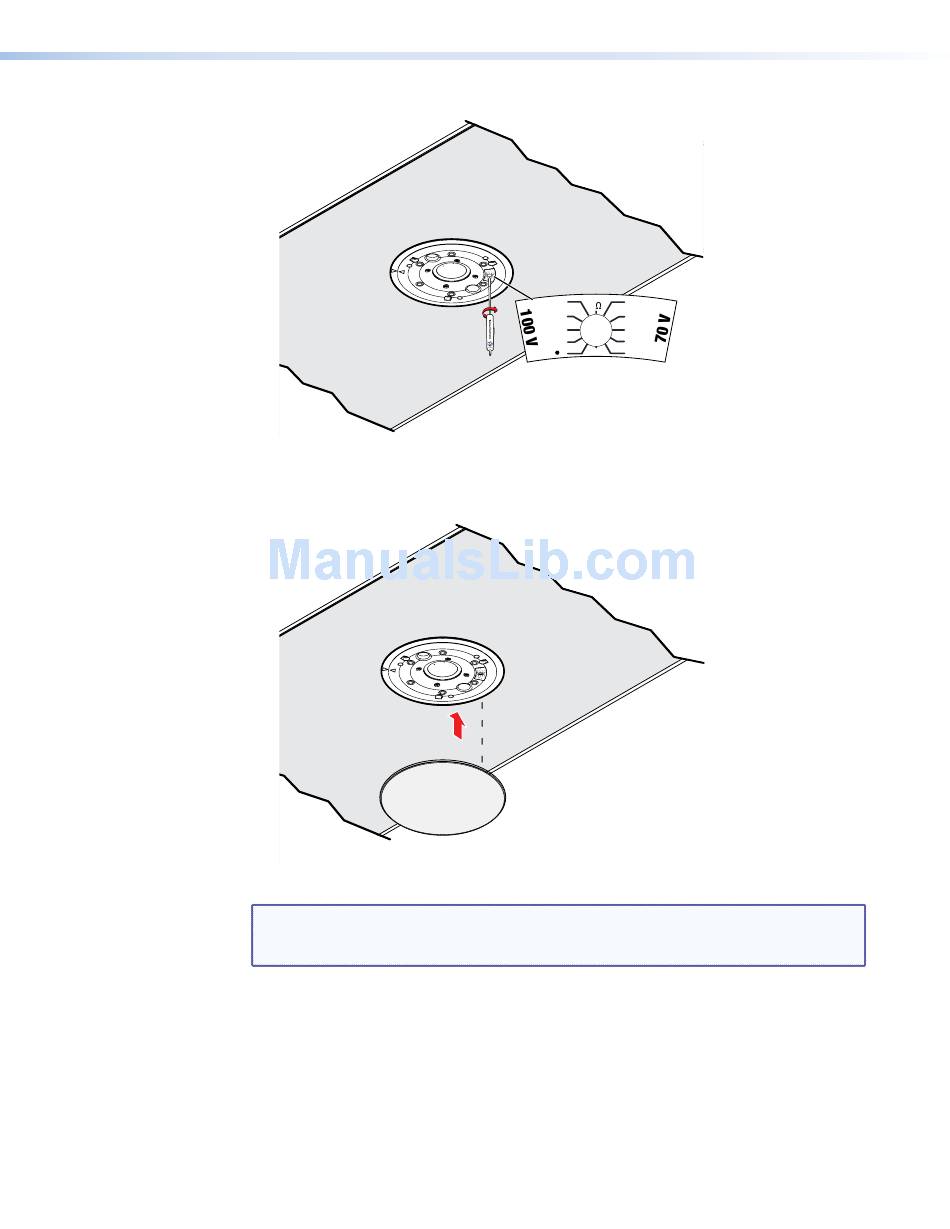

Figure 27.
Setting the Rotary Tap Selector Switch
18.
Install the grille. Position the grille so that it covers the baffle of the speaker. Six small
magnets secure the grille in place.
Speaker Grille
Figure 28.
Installing the Grille
NOTE: Specific test points can be used to troubleshoot speaker system problems.
Should problems be encountered, please see
on page 31.
2W
16W
8
4W
8W
8W
4W
16W
2W
1W
8Ω
Adjust the Tap Selector
Troubleshooting: Signal Test Points
SF 3C LP and SF 3CT LP User Guide • Installation
