Husky Altanium Neo2 User Manual page 16

Single Stack
Double Stack
Triple Stack
1.
2.

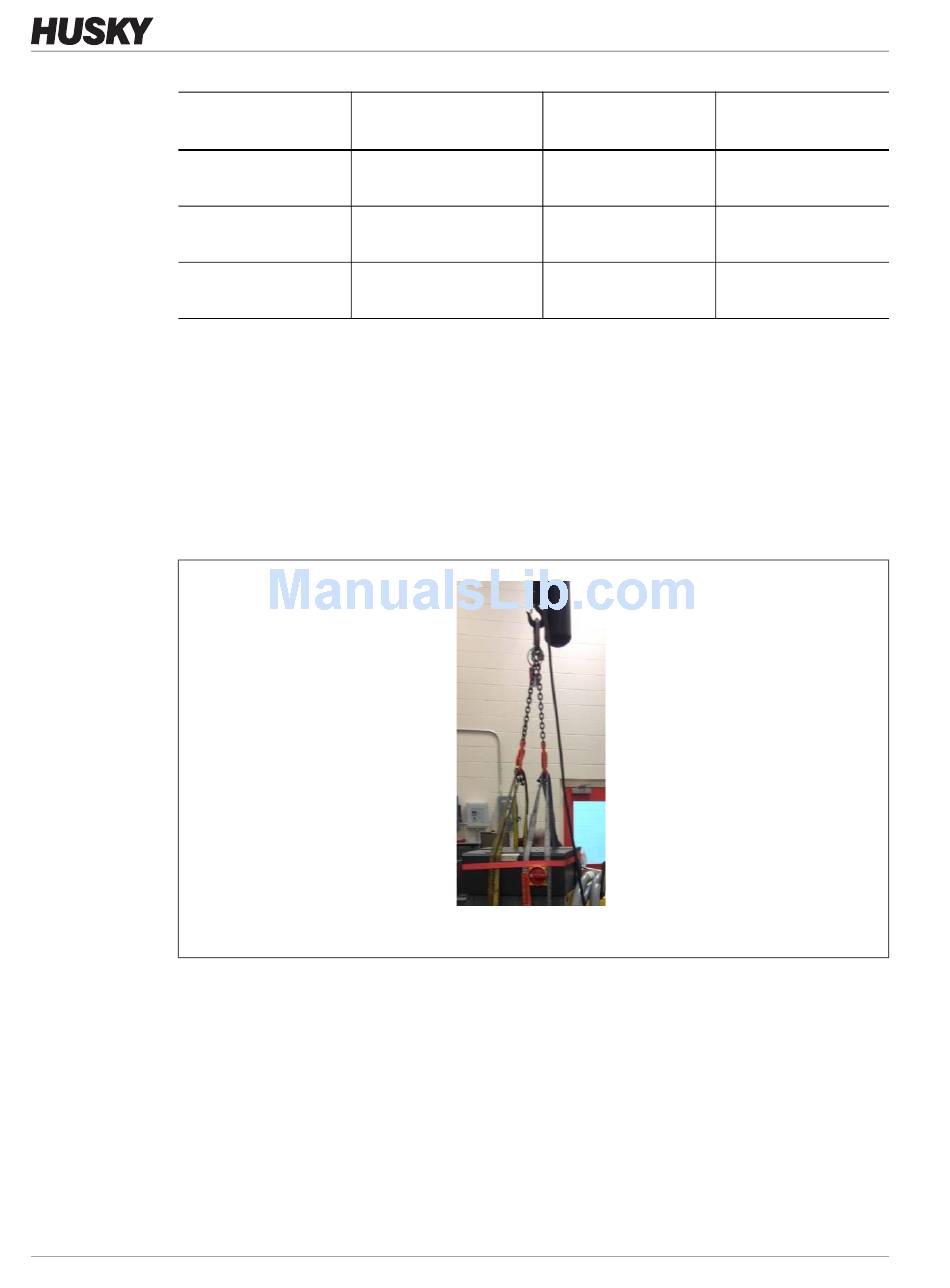

Figure 1-1 Attaching Straps to Lifting Device
6
v 1.4 — September 2015
Altanium Webbed Straps Rated
Controller 2903 kg (6400 lb)
Two, 2.44 m x 25.4 mm
(8 ft x 1 in.)
Two, 3.66 m x 25.4 mm
(12 ft x 1 in.)
Two, 3.66 m x 25.4 mm
(12 ft x 1 in.)
Place each of the webbed straps under the controller. See the table for the correct strap
lengths.
a. For single stack controllers, the webbed straps go under the equipment from left to
right.
b. For double and triple stack controllers, the webbed straps go under the equipment
from front to back.
Bring the straps up and above the Altanium controller and attach them to the lifting
device.
a. Make sure the straps are positioned between the caster wheels and the retaining
brackets under the base of the controller.
Ratchet Strap
One, 1.52 m (5 ft) 227 kg (500 lb)
One, 1.83 m (6 ft) 454 kg (1000 lb)
One, 2.44 m (8 ft) 907 kg (2000 lb)
Controller Lifting Instructions
Altanium Neo2
Lifting Device
(Lifting Ability)
