11.6.1 Viewing the SPI Communications Monitor

This screen can be used to monitor communications traffic. The screen displays transmit,
receive, error and status information for diagnostic purposes.
To view the SPI Communications Monitor:
1.
2.

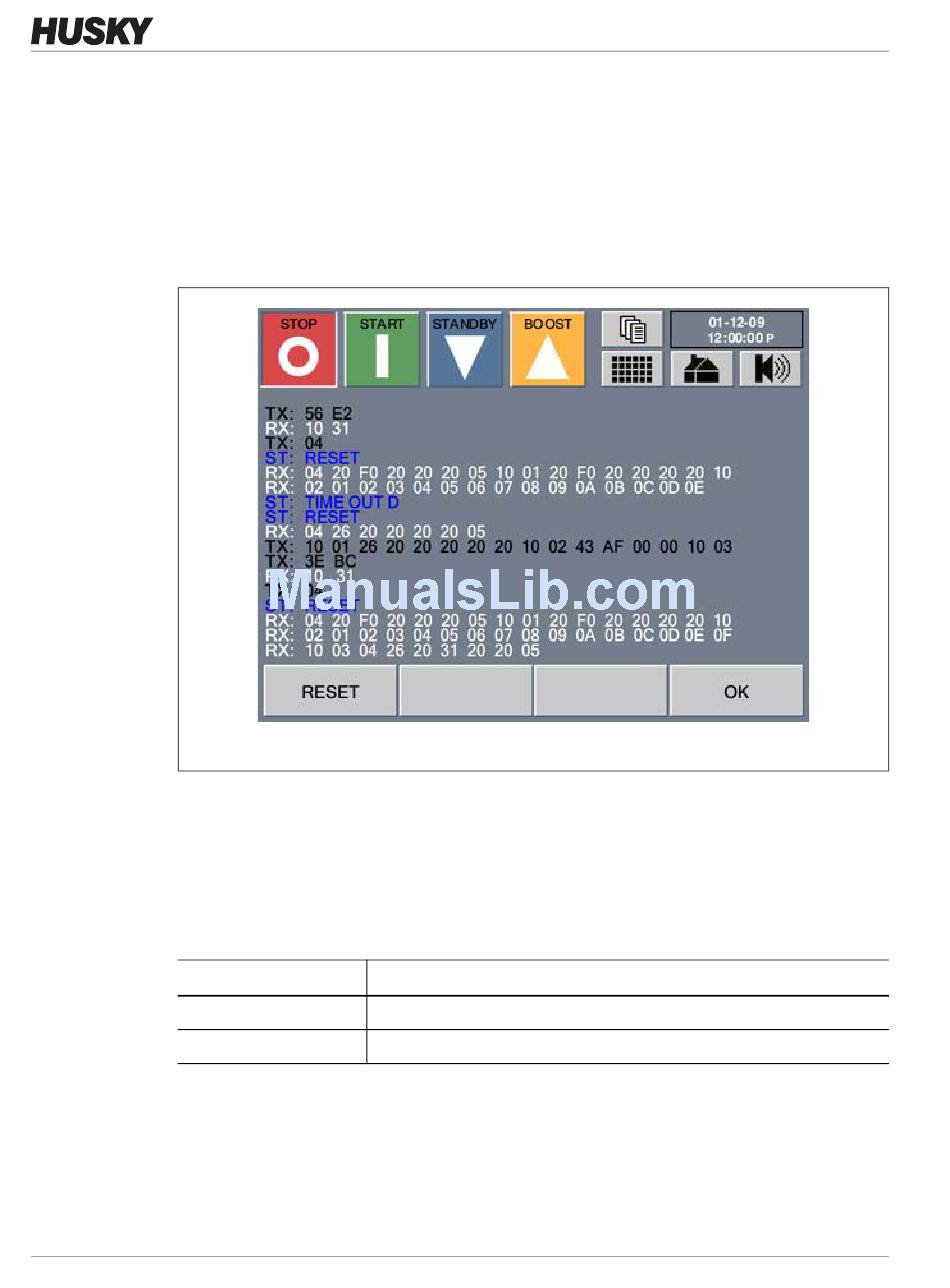

Figure 11-6 SPI Communications Monitor Screen
The screen is color coded to indicate the date type.
•
•
•
•
Table 11-10 SPI Communications Monitor
RESET
OK
96
v 1.4 — September 2015
Touch OPTIONS, then the SPI to open the SPI Communication screen.
Touch SPI MONITOR to open the SPI Communications Monitor screen.
Yellow - SPI protocol status
Blue - Data Error
White - Transmitted data
Black - Received data
Button
Touch to reset the SPI channel.
Touch OK to exit the screen.
Description
Viewing the SPI Communications Monitor
Altanium Neo2
