2.3 Rear View

2.3.1 4U (20-Bay) Models
2.3.1.1 GV-SDI-204H V5
No. Name
1
AC Power Switch
2
AC Power Input (Full Range)
3
USB 2.0 Port x 2
4
DVI-DL Output (DVI-D Signal Only)
5
HDMI Port
6
USB 3.0 Port x 4
7
Side R/L Port
8
Rear R/L Port
9
Audio Microphone In Port
10
Audio Line Out Port
Note: To connect two monitors, use ports No. 4, No. 5 or No. 18. The DVI-DL output (No. 4)
only supports the digital signal, and it can be only connected to a monitor with a DVI
connector.

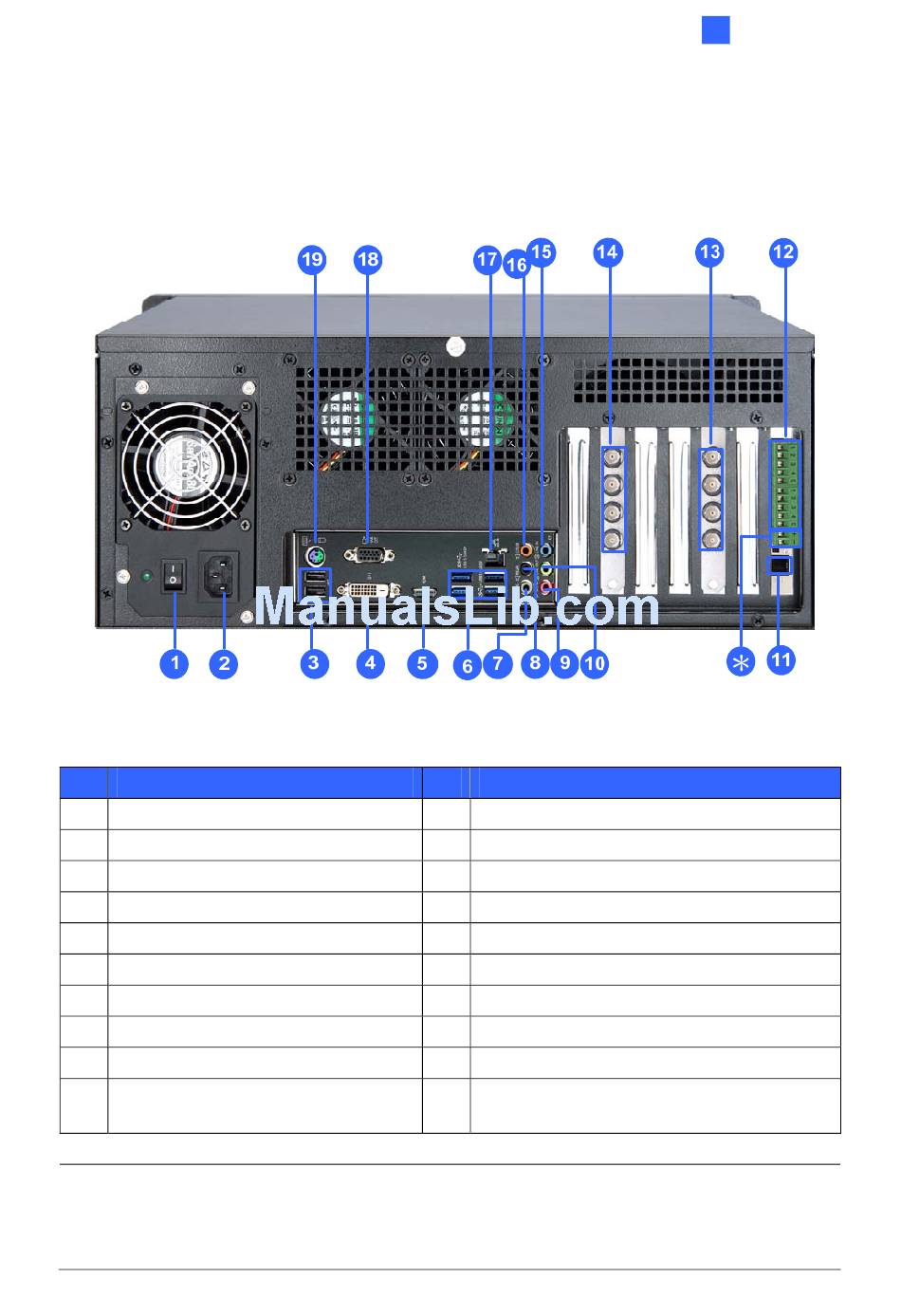

Figure 2-6
No. Name
11 RJ-11 Port
12 I/O Terminal Block
13 BNC Video 5-8 (For 8-Ch Model Only)
14 BNC Video 1-4
15 Audio Line In Port
Center / Subwoofer Port
16
Gigabit Ethernet Port
17
VGA Monitor Output
18
19
PS/2 Keyboard or Mouse
＊
The RS-485± ports are not functional on
GV-SDI-204H V5.
