GeoVision V5 User Manual page 27

2.3.1.3 GV-3008H V5
No. Name
1
PS/2 Keyboard Port
2
S/PDIF Port
3 Clear CMOS Switch
4 USB 2.0 Port x 4
5 eSATA
6 USB 3.0 Port x 2
7 Center / Subwoofer Port
8 Rear R/L Port
9 Audio Microphone in Port
10
Audio Line Out Port
11 DVI-DL Output (DVI-D Signal Only)
12 RJ-11 Port
For details on power supply on the rear panel, see Figure 2-6.
23 22 18 4
2 3
1 4

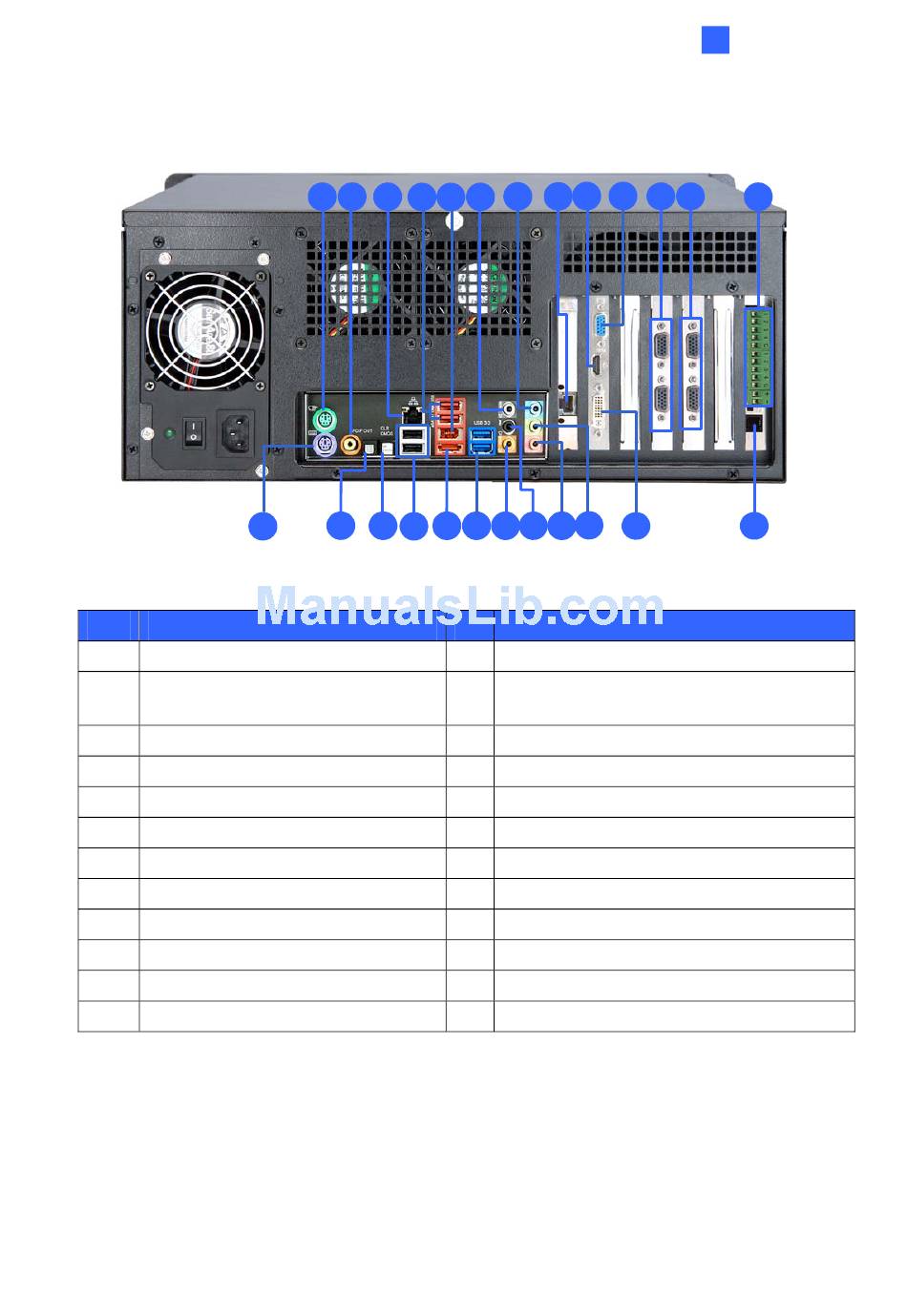

Figure 2-8
21 19 18 17
20
10
5 6 7 8 9
No. Name
13 I/O and RS-485± Terminal Block
I D-Type Audio and Video 9-16
14
(For 16-Ch Model Only)
15 D-Type Audio and Video 1-8
16 VGA Monitor Output
17 HDMI Port
18 Gigabit Ethernet Port x 2
19 Audio Line In Port
20 Side R/L Port
21 IEEE 1394 Port
22 S/PDIF Port
23 PS/2 Mouse Port
Overview
2
16 15 14 13
11 12
19
