Vga Monitor Output - GeoVision V5 User Manual

Note: The monitor you use must be capable of having a screen resolution of 1280 x 1024 and
display color of 32 bits.
Connecting to 3 Monitors
You can connect up to 3 monitors to the ports labeled below on the back panel of the GV-Hot
Swap Surveillance System V5. Here we use the 3U (16 / 8-bay) model as the example.

VGA Monitor Output

DVI-D Monitor Output HDMI Monitor Output

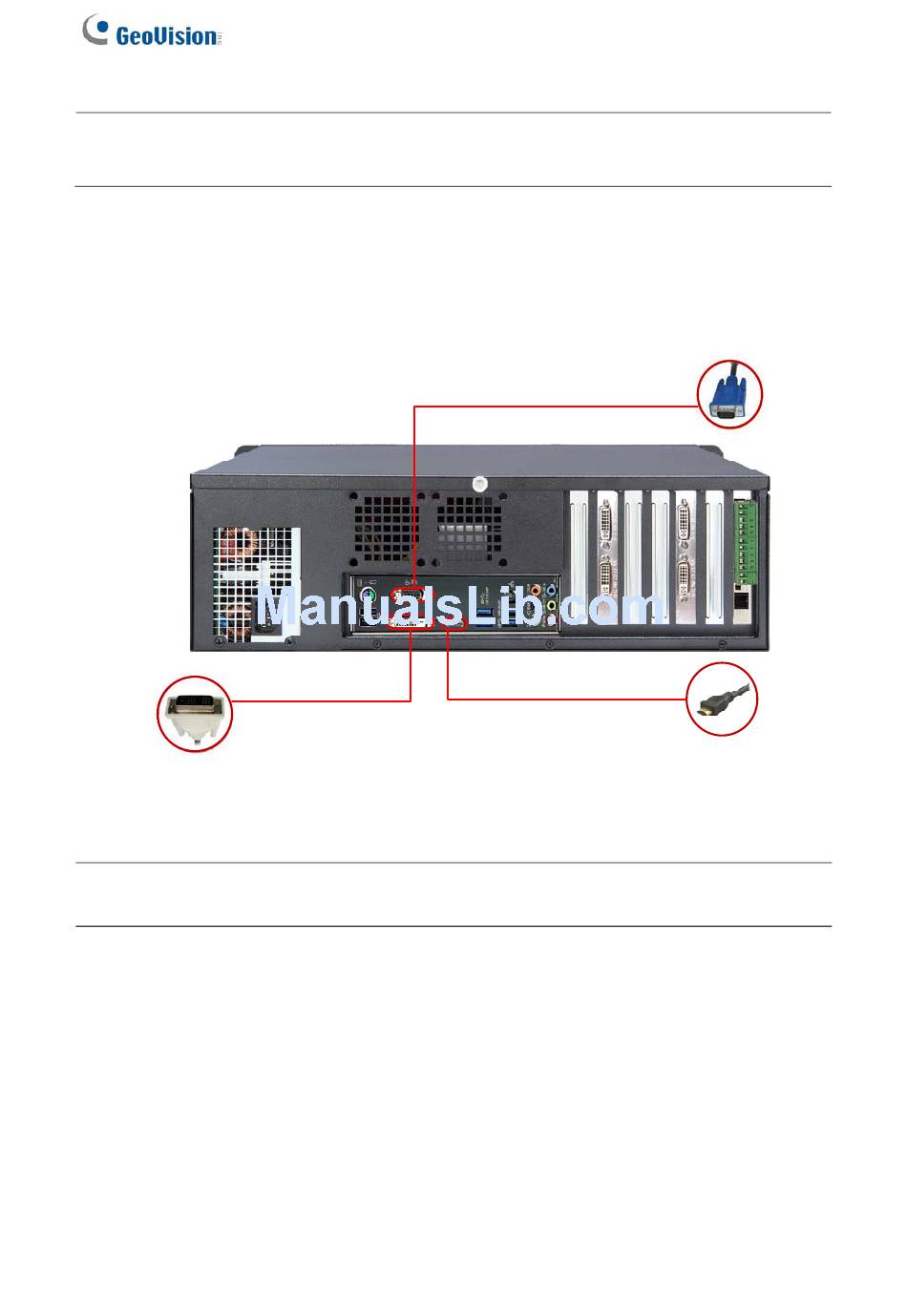

Figure 3-2
Note: Optionally, you can purchase Graphic Cards to connect up to 7 monitors. For details,
see 3.13.5 Graphic Cards.
