Parameter for which the region is defined
f
h Allows the user to change the region order.
The higher order regions will overwrite the
lower order regions for dot color.
j Displays region statistics
1! Allows you to edit the selected region
Sets the current configuration to the
1#
instrument and refreshes the display

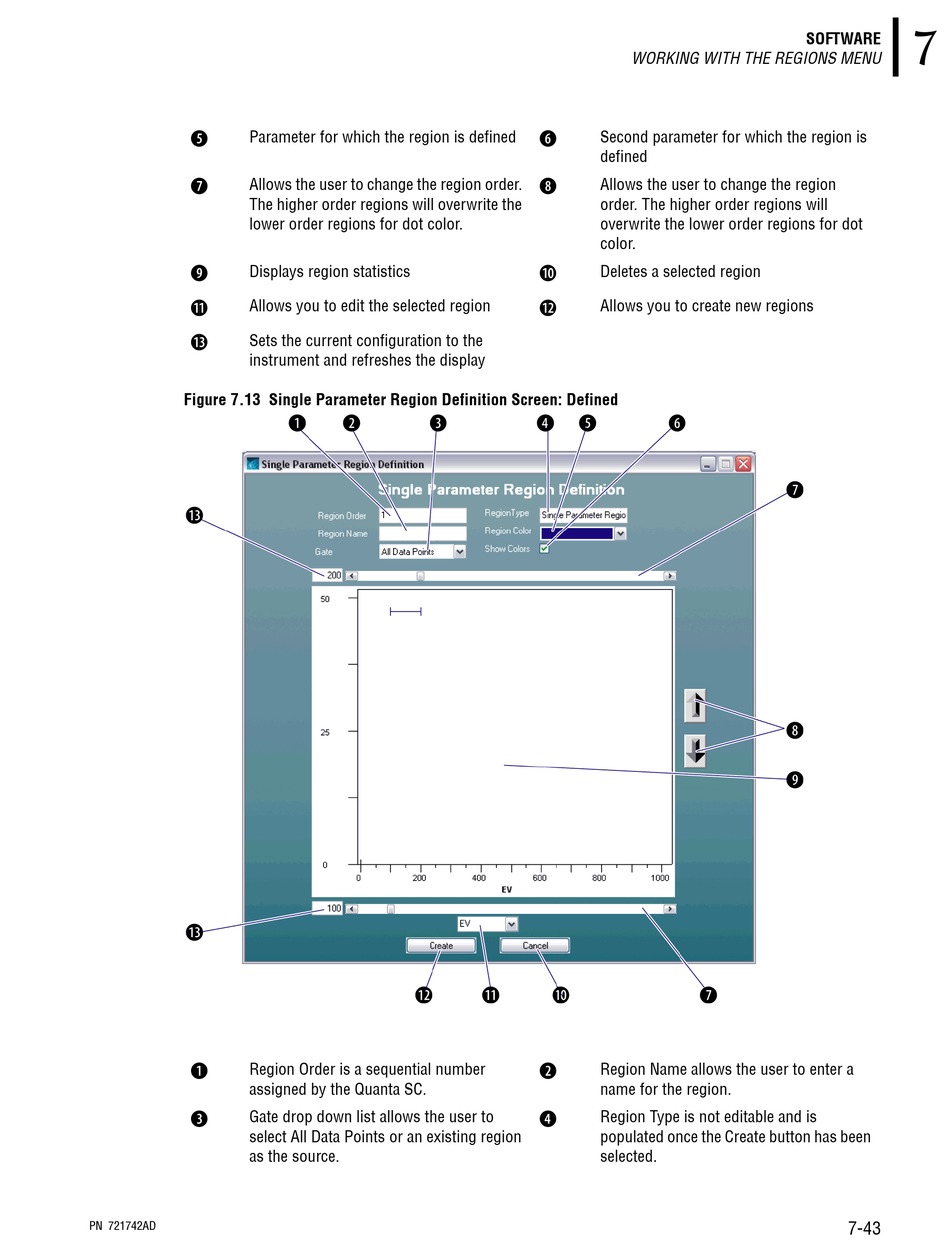

Figure 7.13 Single Parameter Region Definition Screen: Defined
b Region Order is a sequential number
assigned by the Quanta SC.
d Gate drop down list allows the user to
select All Data Points or an existing region
as the source.
PN 721742AD
WORKING WITH THE REGIONS MENU
Second parameter for which the region is
g
defined
i Allows the user to change the region
order. The higher order regions will
overwrite the lower order regions for dot
color.
1) Deletes a selected region
1@ Allows you to create new regions
c Region Name allows the user to enter a
name for the region.
e Region Type is not editable and is
populated once the Create button has been
selected.
7
SOFTWARE
7-43
