QUALITY CONTROL

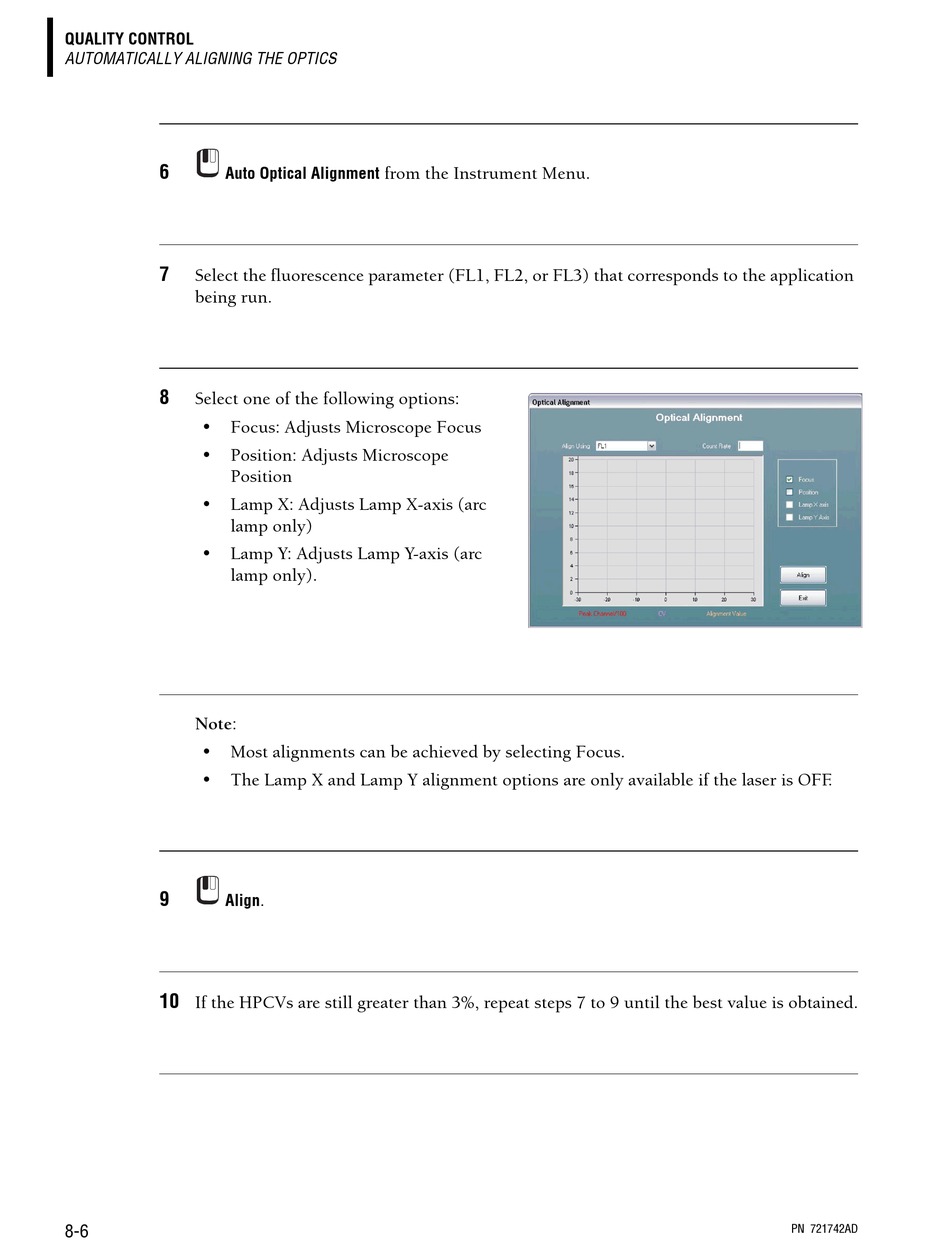

AUTOMATICALLY ALIGNING THE OPTICS
6
Auto Optical Alignment
7
Select the fluorescence parameter (FL1, FL2, or FL3) that corresponds to the application
being run.
8
Select one of the following options:
Focus: Adjusts Microscope Focus
r
Position: Adjusts Microscope
r
Position
Lamp X: Adjusts Lamp X-axis (arc
r
lamp only)
Lamp Y: Adjusts Lamp Y-axis (arc
r
lamp only).
Note:
Most alignments can be achieved by selecting Focus.
r
The Lamp X and Lamp Y alignment options are only available if the laser is OFF .
r
9
Align
10
If the HPCVs are still greater than 3%, repeat steps 7 to 9 until the best value is obtained.
8-6
from the Instrument Menu.
.
PN 721742AD
