Pss/Vm Afp Printing Using Tcp/Ip; Sample Pss Vm Printer Profile Definition Using Tcp/Ip; Setup In Os/400 Tcp/Ip Environment; Psf/400 Afp Printing Using Tcp/Ip - MPI linkcom 5 User Manual

8.4

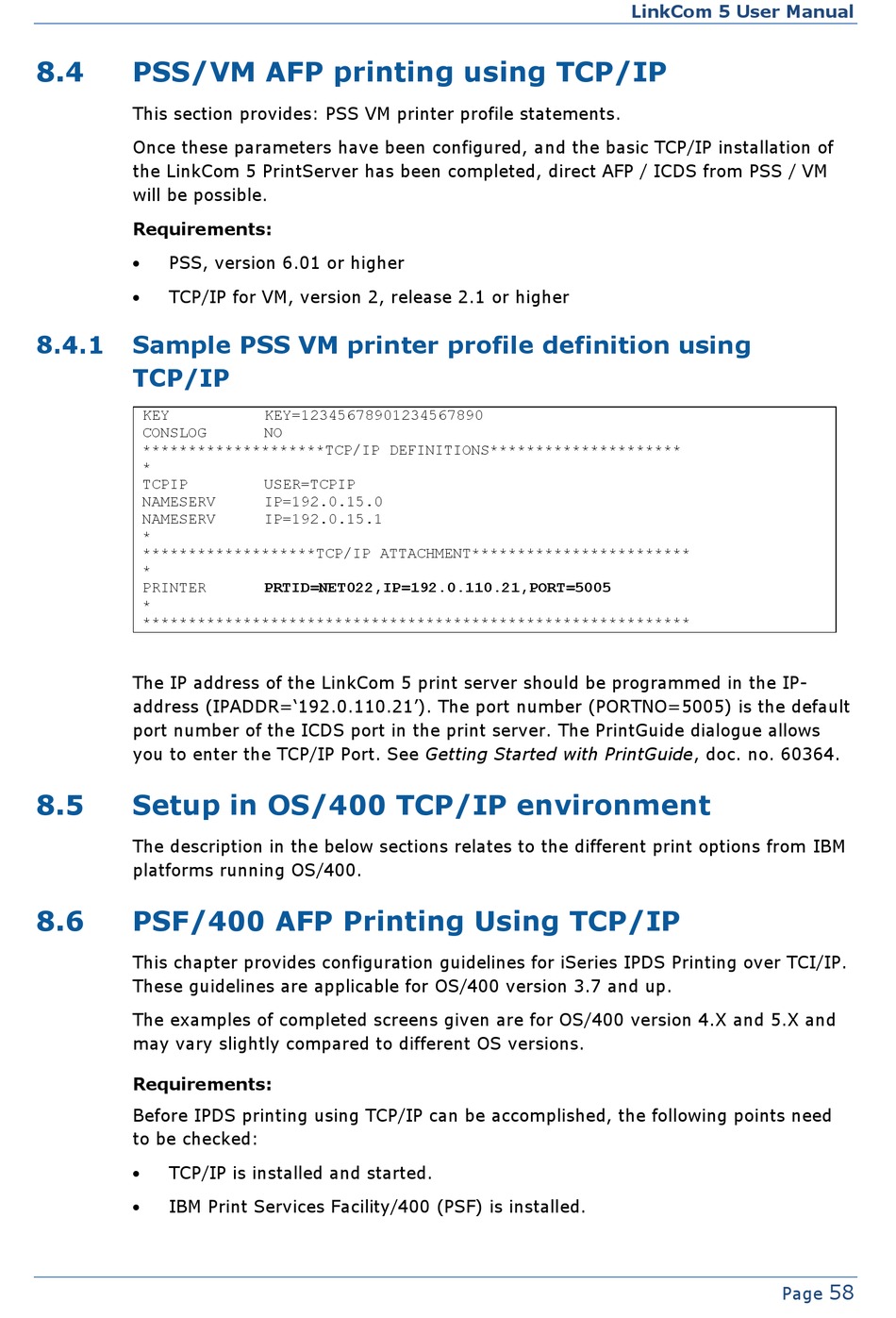

PSS/VM AFP printing using TCP/IP

This section provides: PSS VM printer profile statements.
Once these parameters have been configured, and the basic TCP/IP installation of
the LinkCom 5 PrintServer has been completed, direct AFP / ICDS from PSS / VM
will be possible.
Requirements:
 PSS, version 6.01 or higher
 TCP/IP for VM, version 2, release 2.1 or higher
8.4.1 Sample PSS VM printer profile definition using
TCP/IP
KEY
CONSLOG
********************TCP/IP DEFINITIONS*********************
*
TCPIP
NAMESERV
NAMESERV
*
*******************TCP/IP ATTACHMENT************************
*
PRINTER
*
************************************************************
The IP address of the LinkCom 5 print server should be programmed in the IP-
address (IPADDR='192.0.110.21'). The port number (PORTNO=5005) is the default
port number of the ICDS port in the print server. The PrintGuide dialogue allows
you to enter the TCP/IP Port. See Getting Started with PrintGuide, doc. no. 60364.
8.5

Setup in OS/400 TCP/IP environment

The description in the below sections relates to the different print options from IBM
platforms running OS/400.
8.6

PSF/400 AFP Printing Using TCP/IP

This chapter provides configuration guidelines for iSeries IPDS Printing over TCI/IP.
These guidelines are applicable for OS/400 version 3.7 and up.
The examples of completed screens given are for OS/400 version 4.X and 5.X and
may vary slightly compared to different OS versions.
Requirements:
Before IPDS printing using TCP/IP can be accomplished, the following points need
to be checked:
 TCP/IP is installed and started.
 IBM Print Services Facility/400 (PSF) is installed.
KEY=12345678901234567890
NO
USER=TCPIP
IP=192.0.15.0
IP=192.0.15.1
PRTID=NET022,IP=192.0.110.21,PORT=5005
LinkCom 5 User Manual
Page
58
