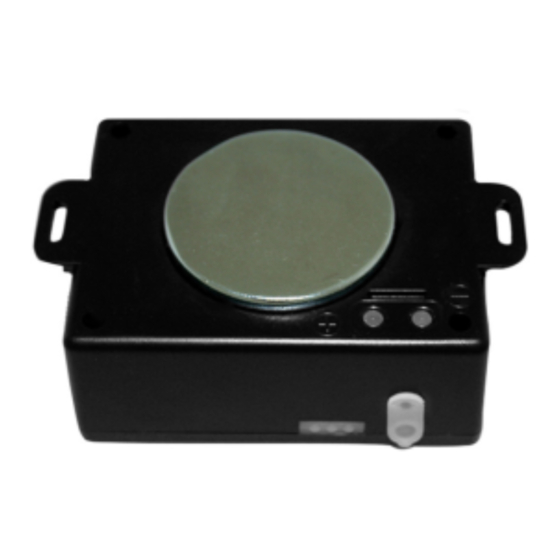

CCTR-800+ Portable GPS Tracker User Manual
Welcome to use this portable GPS tracker. This product is with GPS module and GSM module, that has
many new and unique functions, such as extra big battery (5200mAH), water-Proof, powerful magnetic, LBS
locate without GPS signal, check current location by iOS iPhone & Android App / Web / SMS / WeChat etc. Its
standby time can reach over 1 month(about 50 days, work mode 1, report mode 0). User can control different
working mode for different using, it can work without platform, just send SMS to check current location, also it
can upload location to sever by user setting time interval, and more sending sms can make the tracker to go to
sleep and weak up & locate one time every day, This GPS tracker suit for personal tracking ,vehicle tracking or
outdoor workers tracking.
This tracker also have LBS locating function (mobile phone base station CELL ID), if no GPS signal in
some place, such as underground park, indoor room, or around high building with bad GPS signal, the tracker
will locate with LBS (normally the LBS CELL ID locating precision is about 50-500m in the city, and the GPS
locating precision is about 10m).
Using the unique user name and password (Default user name is the last 7 digital of the tracker ID,
password is same with user name), user can check the history track max to 6-12 months, the real time location,
and set the over speed alarm, the geo-fence alarm and so on. The website is www.999gps.net. It suit for
personal user or fleet user, and it can locate object by visiting website, wap visiting by phone, Android App or
iOS iPhone App on mobile phone, WeChat on mobile phone (Android,iPhone,Symbian,Windows
phone,Blackberry), sending sms to get location Google map link etc.
Scan the following QR code or click the following link can download or read online the manual in Word or
Pdf format.
Word Version:
http://www.igps.info/en/cctr-800+-gpstracker-en-v2.doc
Pdf Version:
http://www.igps.info/en/cctr-800+-gpstracker-en-v2.pdf
QR-Manual Download (Word)
iPhone App Download
QR-Manual Download (Pdf)
Android App Download
-1-
---V2 20160626

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCTR-800+ and is the answer not in the manual?

Questions and answers

Related Manuals for Carscop CCTR-800+

Summary of Contents for Carscop CCTR-800+

  • Page 1 CCTR-800+ Portable GPS Tracker User Manual ---V2 20160626 Welcome to use this portable GPS tracker. This product is with GPS module and GSM module, that has many new and unique functions, such as extra big battery (5200mAH), water-Proof, powerful magnetic, LBS locate without GPS signal, check current location by iOS iPhone &...

  • Page 2: Product Picture

    Product Picture: Car Charger & Charging Wire Charging Board External Power Adapter Function Specification:  Portable Design,No installation,Easy using;  Big Li-battery(5200mAH) standby time up to 50 days;  SMS/Calling/App/Web/Wechat Locate;  Can be worked without platform;  5 different Geo-fence in or out alarm can be set; ...

  • Page 3: Before Using

     Green Power LED OFF continuously : Power off  Red GSM LED Flash once : Upload location to server OK  Red GSM LED Flash twice : Upload location to server Fail Before Using: 1. At first to buy a GSM phone SIM card which have SMS service and incoming caller ID service & GPRS data service, in which the SIM card phone number is the very tracker number and all the operation for the tracker is to this number, such as locating immediately, add &...
  • Page 4  We recommend using OEM charger to recharge the tracker. this tracker use the 5V DC voltage to recharge, so too high voltage or AC voltage may damage the tracker or even cause accidents.  Use the car adapter or home charger or PC USB to recharge the tracker: insert the USB wire into the charge board and car adapter or home charger or PC USB, and put the tracker on the charging board, If the LED on the adapter is RED, it means it is recharging, if the LED on the adapter is GREEN, it means the recharging is finished.
  • Page 5 5. Battery Low Alarm When the battery voltage in the tracker is too low, the tracker GREEN LED will flash 3 or 4 times, and send battery low alarm information to authorized number, and later if the battery power is too low, it will power off automatically.
  • Page 6 on web or app, if the tracker keep moving, the battery time ca reach 3 days, if the tracker move 1 hour every day, the battery time ca reach 20 days. Change the upload time interval to longer can save battery time (please refer the following Locate Operation &...
  • Page 7 1. Add authorized phone number Send SMS“ADDPHONE*123456*A*phonenumber” or “401*123456*A*phonenumber” to tracker is OK, “ADDPHONE” and “401” are fixed command; “123456” is password; “A” is authorized number location, every tracker have 3 authorized phone number locations, A and B, and C, so you can set 3 phone numbers, phonenumber means the mobile phone number you want to set, if the add operation is success, the tracker will send back the information ”Add Preset Phone OK”, if the password is not right, the operation is fault, the...
  • Page 8 4. Sending SMS trigger reply Google map link SMS(Platform is not necessary): Send SMS “URL*123456” or “456*123456” to the tracker also can trigger the tracker locate & reply SMS with current location with Google map link, “URL” and “456” is a command, “123456” is password; if the password is not right, the operation is fault, the tracker will send back information “Wrong Password.
  • Page 9 send location to user by SMS (“123” and “LOCATE” command reply location text description, “456” and “URL” command reply location Google map link), if the password is not right, the operation is fault, the tracker will send back information “Wrong Password. This command will not stop automatically until user send SMS “000*123456”...
  • Page 10 “123456” is password, the tracker will send back the information “Set Shock Alarm OFF” to indicate the operation is success and disable the shock alarm, After disable the shock alarm, the system will not check shock sensor again. If the authorized number have been set, use the authorized phone number to send SMS “ALARMON#” or “789#”...
  • Page 11 the tracker will be turned on and locate and then send the location information with Google map link to user by SMS, again a few minutes later, the tracker will be turned off, and waiting the timer is up and repeat the above process.
  • Page 12 platform every setting interval time (default is 30 seconds, time interval setting please refer the following 11, for personal using we recommended 300-600seconds), if the tracker stop moving, 5 minutes later, the tracker will stop uploading LBS location to platform. In this mode, if the LBS location can not be got, the setting interval time later, the tracker will begin another locating.
  • Page 13 In the normal mode press the button ON/OFF on the tracker and don’t release (Press button over 6 seconds), the GREED LED will flash quickly, later the LED will be turned OFF, then release the button, the tracker will send SOS help information to all 3 preset phone, and then call the authorized number A first, if no answered then B and C, if 3 authorized number all no answered, then stop calling.
  • Page 14 5. Set Alarm by Calling: ON/OFF Send SMS “CALLON*123456” (Call to authorized number) or “CALLOFF*123456” (No calling) to the tracker, “CALLON” or “CALLOFF” is a command, “123456” is the tracker password, the tracker will send back the information “Alarm by calling : ON” or “Alarm by calling :OFF”, If the alarm by calling is ON, then when the alarm is triggered, the tracker will call the authorized number to notice the alarm, the default setting is ON.
  • Page 15 kind of SIM card , after set by the following step, sending SMS to tracker can check the tacker SIM card money or data balance. Set sending SMS or call USSD number to check balance: Send SMS “BALANCEMODE*123456*SMS” to the tracker, it means sending SMS to check balance, in which, “BALANCEMODE”...
  • Page 16 9. Enable And Disable Overspeed Alarm (No Platform Necessary) Send SMS “OVERSPEEDALARMON*123456*SSS” or “111*123456*SSS” to the tracker number, “OVERSPEEDALARMON” or “111” are command, “123456” is password, “SSS” is the setting alarm speed, unit is km/hour. The tracker will send back the information “Set Overspeed Alarm On :SSS km/h” . After enable overspeed alarm, the system will check the speed every 5 minutes.
  • Page 17 the geo-fence circle, if the tracker has go out the geo-fence circle, the tracker will send out geo-fence alarm information to all authorized number, and only send once, if the tracker go into the geo-fence and go out the geo-fence again, the tracker will send alarm information again. The geo-fence alarm SMS is as follow: Out Geofence (A) Alarm https://maps.google.com/maps?q=22.67680N,114.15188E...
  • Page 18 “GGG” is the radius of the geo-fence circle (the center of the circle is the tracker current location), unit is km, it is from 001 to 999. After receive the command, the tracker will locate immediately, after located, the tracker will set current location as the geo-fence center and GGG as the geo-fence radius (unit is km), the tracker will send back the information “In &...
  • Page 19 center point of the gen-fence E circle, and set GGG km as the radius of the gen-fence E circle. the tracker will send back the information “Set Geofence (E) 22.680307N,114.146843E, GGGkm”. Note：This command only set the geo-fence circle center point & radius, not enable the geo-fence alarm, the geo-fence circle center point longitude &...
  • Page 20 a command, “123456” is password, the tracker will send back information “ Cancel All Alarm Setting”, and cancel all alarm setting (including the 4 alarm setting in 12, also cancel geo-fence alarm,over speed alarm) . This command will cancel all alarm setting, including the 4 alarm canceled in 12, also this command will cancel Geo-fence alarm &...
  • Page 21 password. The tracker will send back information “Set factory setting OK”, then the tracker will cancel all the alarm setting in the tracker, and also delete all the authorized phone number, delete the APN and GPRS user name and password,change the tracker password to 123456, reset the IP address, reset the system working mode and the interval time, and so on.

  • Page 22: Trouble Shooting

    Set Website Server IP address The tracker IP address has been set to default : 58.64.155.133,8011 in factory, For normally this is not necessary to change, If our server IP is changed, we will notice on the website. But if you need upload location to your own server, send SMS “IP*123456*100.101.102.103,8888”...

  • Page 23: Packing List

    Specification: GSM Module SIMCOM GPS Module U-Blox GSM Frequency 850/900/1800/1900Mhz (4 Band) GPS channel 24 channels GSM / GPS Antenna Built in Locate precision 10-20 Meters GPS Cold Start Time 36 seconds GPS Hot Start Time 1 second Working Voltage 5V DC Recharging Current <...
  • Page 24 Customer User Mobile Phone Tracker SIM card Date Year month Model CCTR-800+ ID Number Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice customer, if you have any problem please contact us, thanks ! -24-...
