CCTR-809 Asset GPS Tracker User Manual
Welcome to use this asset GPS tracker. This product is with GPS module and GSM module, it use internal
high capacity battery, it is not necessary external power supply, it will weak up every day by setting time
interval(normally every day 1-2 times), it receive GPS Location (outdoor,10-20m precision) & LBS location
(indoor,50-500m precision) and upload the location to internet server, and then sleep automatically, user login
server with given user name & password can locate the tracker. If the tracker break the setting geo-fence, it will
send sms to notice owner, the working time can reach 3-5 years, it is water-proof with strong magnet, specially
suit for rent machine, vehicle, instrument, engineer sets tracking.
The tracking website is
password, the last location will display on the map (the default given user name & password is the last 7 digital
of the tracker ID, the ID label is on the back of the tracker case), using Android App or iOS iPhone App also can
tracking the tracker, the user name & password is same with the website.
Scan the following QR code can download & install app on mobile phone.
Scan the following QR code or click the following link can download or read online the manual in Word or
Pdf format.
Word Version:
http://www.999gps.org/en/CCTR-809-GPStracker-en-V1.doc
PDF Version:
http://www.999gps.org/en/CCTR-809-GPStracker-en-V1.pdf
www.999gps.net
iPhone App Download
QR-Manual Download (Word)
, visiting this website & login with the given use name &
Android App Download
QR-Manual Download (Pdf)
-1-
---V1 201510
Advertisement
Table of Contents
Related Manuals for Carscop CCTR-809
Summary of Contents for Carscop CCTR-809
- Page 1 CCTR-809 Asset GPS Tracker User Manual ---V1 201510 Welcome to use this asset GPS tracker. This product is with GPS module and GSM module, it use internal high capacity battery, it is not necessary external power supply, it will weak up every day by setting time interval(normally every day 1-2 times), it receive GPS Location (outdoor,10-20m precision) &...
-
Page 2: Product Picture

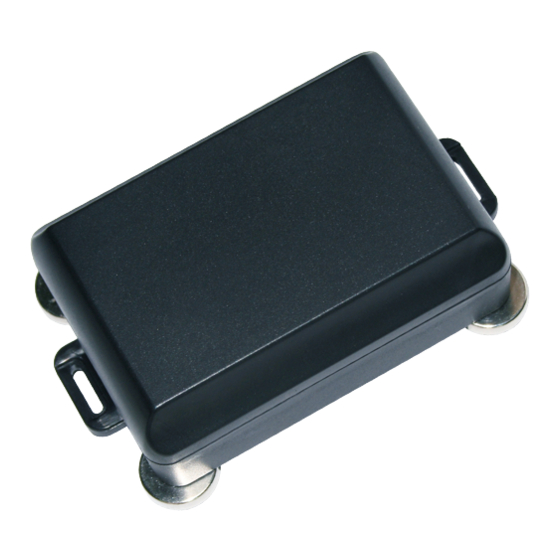

Product Picture: Packing Manual Battery Screw Main Unit magnet Function Specification: 3-5 Years battery working time (1-2 location / Day); No installation,No power supply, Easy using; IP67 Water-proof, can be used in open air; 4 low self-consuming Li-battery (6000mAH); ... -
Page 3: Before Using
Before Using: 1. Install SIM card: Buy a GSM SIM card which have SMS service and incoming caller ID service & GPRS data service, in which the SIM card phone number is the very tracker number and all the operation for the tracker is to this number, such as locating immediately, add &... - Page 4 When the battery voltage in the tracker is too low, the tracker GREEN LED will send battery low alarm information to authorized number automatically. Note: This battery is not rechargeable battery, it can not be recharged. 4. Back to Factory Setting (Default Setting) Sending SMS “FACTORY*123456”...
- Page 5 is :2345678 or 123456, user can change the password). 9. iPhone Android App also use the same user name and password with website login, downloading & installation please refer the platform operation guide. 10. This tracker can auto download & configure APN & GPRS user name & password, if the auto configure is not right, the tracker can not upload location to server, then you need send SMS to tracker to change the APN &...
- Page 6 tracker password, this password is different with the tracking platform login password. Note: Only The authorized phone can check the password. 5.Change Tracker Password Send SMS “CHANGEPASSWORD*123456*888888” to the tracker number, “CHANGEPASSWORD” is command; “123456” is old password; “888888” is new password; if the operation is success, the tracker will send the information “...
- Page 7 shock sensor trigger, the tracker will turn off GPS & GPRS, and stop upload location to server, and then power off, at this condition the tracker can not receive any sms & calling. The time interval default is 30 seconds, and it can be changed by sending SMS “INTERVAL*1234568*T” (T is from 030 to 999, unit is seconds).
- Page 8 APN & GPRS user name password is right, the APN name and GPRS user name & password please call your tracker SIM card mobile phone company to confirm, the auto configuration APN & GPRS of the tracker please sending SMS “CHECK*123456” to the tracker to check. if the APN & GPRS are not right, please set by the following description.
- Page 9 M1,24 :Working mode 1, 24 hours GPS 9 :GPS signal (Satellite) GPSON :GPS module is ON GSM:-95dBm :GSM signal CMNET :Current APN User :GPRS User Name Password :GPRS Password 460,00,255,1,9376,3613,07 :GSM Base Station Information "MCC,MNC,TA,NUM,LAC, CID,RXLEV ,LAC2,CID2,RXLEV2..." :Built in Battery Power 13.
- Page 10 If the tracker can not get the location text description, the tracker will reply the location with Google map link SMS to user, please refer the following 3. And If no GPS signal in that place the tracker will locate by LBS (Cell ID GSM network base station), and reply the LBS location with Google map link.
- Page 11 4. LBS Located (GSM network Cell ID Locate): When the tracker is triggered to locate, if the tracker is in the place where there is no GPS signal, such as underground park, indoor room, the tracker will reply SMS with CELL ID location to user, and the precision is about 50-500m, according to the around mobile phone base station density.
- Page 12 the information “Set Overspeed Alarm On :SSS km/h” . After enable overspeed alarm, the system will check the speed every 5 minutes. If the speed is higher than the setting speed, the tracker will send alarm and location information by SMS to the authorized phone number A (only send to A), The authorized phone will receive max 3 alarm SMS per hour, one hour later it will be active again.
-
Page 13: Platform Operation
is password, After receive the command, the tracker will locate immediately, after located, the tracker will set current location as the geo-fence center and 500 meters as the geo-fence radius (unit is meters), the tracker will send back the information “Move Alarm On”, if the tracker can not locate, the tracker will reply “Can not locate, Set Move Alarm Fail”. -
Page 14: Troubleshooting
Platform User Guide Word Version Platform User Guide Word Version Trouble Shooting Please confirm that the SIM card PIN code has been disabled, it means if mobile phone use this SIM card, it is not necessary to input any password. This tracker use 2G GSM network, and it upload tracking only through 2G GPRS, some 3G &... -
Page 15: Packing List
Warning: this device is just a auxiliary product that applying the location of current object, we have not any responsibility if you have damage or lost in using this tracker. Customer User Mobile Phone Tracker SIM card Date Year month Model CCTR-809 ID Number -15-... - Page 16 Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice customer, if you have any problem please contact us, thanks ! -16-...
