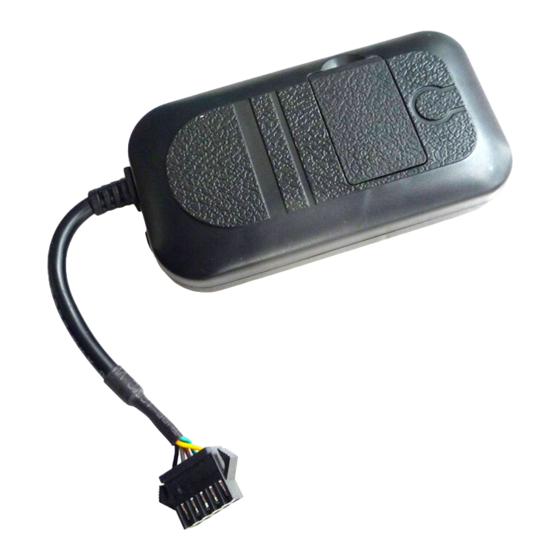

Welcome to use this real time car GPS tracker CCTR-803B.This product is with GPS module (with A-GPS
function for fast locating) and GSM module (with LBS locate without GPS), that has many new and unique
functions, such as built in rechargeable battery for power down alarm & tracker removed alarm, external
microphone for listen sound in car, remote turn off car engine,SOS button, playing back history tracking on
website or mobile phone, SMS locate with Google map link, sensitive shock sensor built in to control power
saving etc. the tracker can auto configure APN & GPRS setting, it is very easy to install and use, just connect
the power supply is OK, the working voltage range is 9-36V, it can be used for car (12V) or tuck (24V) bus etc.
The tracker sends the present location information through GPRS to internet server, so that user visit the
website
www.999gps.net
the ID, password is same with user name or is 123456, for example ID is 803201512345678, user name is
2345678, password is 2345678 or 123456) through any PC or mobile phone with available internet, current
location checking, history tracking playing back, alarm & running report etc can be operated, normally the
platform service charge is free (some distributor maybe sale different package of 1 year service charge free),
please confirm expired date after login the website, and the tracker will be active after the tracker power on.
User also can download Android or iPhone iOS app software to android or iPhone mobile phone, click the
app, logon with user name and password, you can locate current location & display history tracking, the user
name and password is same with the website login. Also following GPSTrack1 official account on WeChat
software, map or text description location can be send back by WeChat. Basically using mobile phone send
SMS or call the tracker can get the SMS of the current location Google map link.
This GPS tracker can be used as car alarm, fleet management, driver management etc, it can be used for
tracking cars, company vehicles, buses, taxis, trucks, etc.
iPhone App Download
CCTR-803B Car GPS Tracker
with the applied user's name and password (default user name is the last 7 digital of
QR-Manual Download (Word)
QR-Manual Download (Pdf)
Android App Download
-1-
-V2-20150601
Wechat Official Account
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carscop CCTR-803B
Summary of Contents for Carscop CCTR-803B
- Page 1 CCTR-803B Car GPS Tracker -V2-20150601 Welcome to use this real time car GPS tracker CCTR-803B.This product is with GPS module (with A-GPS function for fast locating) and GSM module (with LBS locate without GPS), that has many new and unique functions, such as built in rechargeable battery for power down alarm &...
-
Page 2: Before Using
Product CCTR-803B Wires Holder Microphone Socket SOS Button Indicator External microphone Before Using Power ON / OFF If the tracker is powered OFF, turn the switch to the on position with slim stick, the tracker will power on, the LED will flash, please refer the following 3 for detail LED flash indicator. - Page 3 : can not upload tracking Power supply For CCTR-803B, the tracker uses the 9-36V DC power supply, too high voltage or AC voltage may damage the tracker or even cause accidents, it is necessary connecting to car battery all the time, after the...
- Page 4 the SOS button to the tracker SOS wire is OK. The external microphone need insert to the socket beside the wires on the case, and install the microphone in hidden place near the driver so that the tracker can have clear voice For car security the tracker need be installed in hidden place, normally the back of the seat or arm rest box or under the back window or room on the panel etc.
- Page 5 3. Check LED flash, refer Before Using 3 for detail, If Green LED flash once means GSM and GPS signal well. And Red LED flash once means the location has been uploaded to the server. 4. Call the tracker or send SMS “LOCATE*123456” or “URL*123456” to the tracker, the tracker will reply the tracker location with text description or Google map link by SMS.
- Page 6 password; “A” is authorized phone number location, there are 3 locations “A” and “B” and “C”; if the delete operation is success, the tracker will send back the information ”Delete Preset Phone OK”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. Check authorized phone number by SMS Send SMS “CHECKPHONE*123456”...
- Page 7 Most SIM card can send a SMS or call a specified USSD command number to get a SMS with SIM card money or data balance, for example PCCW mobile phone SIM card, call ##121#, Union mobile phone send SMS CXYE to 10010, the mobile phone company will send back the SMS with money & data balance. for this kind of SIM card , after set by the following step, sending SMS to tracker can check the tacker SIM card money or data balance.
- Page 8 sender, every mobile phone company reply SMS is different. If the authorized number have been set, use the authorized phone number to send SMS “BALANCE#” to the tracker also can trigger the tracker to check balance. 6. Set GPRS Mode: KEEPONLINE / SHOCKCONTROL Send SMS “KEEPONLINE*123456”...
- Page 9 in which, “ID” is the fixed command and “123456”is the password. Having successfully been made, there will be a SMS “ID: 801201512345678”, in which, “801201512345678” is the ID and every tracker corresponds to the only number. This number is used to differ the tracking uploaded to the website from others. the last 7 digital number of the tracker ID is the user name and password of the tracker on the platform, for example the tracker ID is : 801201512345678, and then the user name on the platform of this tracker is : 2345678, and the platform password for this user name also is :2345678 or 123456,user can login the platform...
- Page 10 “123456” is the password of the tracker; “username” is the mobile company GPRS user name, “password” is the mobile company GPRS password, if the operation is success, the tracker will send back the information “Username:username, Password:password”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
-
Page 11: Locate Operation
User, ;GPRS user name Password, ;GPRS password 46000, ;Sim Card MCC+MNC e1d/24a0, ;Current Cell ID Battery:88% ;Battery Note: This command usually be used to check the tracker current status & configuration, if the tracker can not work well, this command can check what the problem is. 15. - Page 12 2. Sending SMS to trigger report location by text description Send SMS “LOCATE*123456” to the tracker, “LOCATE” is a command, “123456” is password. If the operation is success, the tracker will send back the information as above. If the authorized number have been set, use the authorized phone number to send SMS “123#” to the tracker also can trigger the tracker locate and reply the location with text description.
- Page 13 Note: this location is locate by GSM base station ID, the precision is not very high, in the city maybe 30-50 meters, in the country mabe over 1 km, so the location is only used for reference. If the LBS can not get the location either, the tracker will reply “Can not get location, please try again later”. 5.
- Page 14 “OVERSPEEDALARMOFF*123456” (Disable over speed alarm) to the tracker, “OVERSPEEDALARMON” or “OVERSPEEDALARMOFF” is a command, “123456” is password, “xxx is the setting speed limited”, the tracker will send back the information “Set Over Speed Alarm ON” or “Set Over Speed Alarm OFF” to indicate the operation is success, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 15 Password”. The output current of the tracker is smaller than 500mA, so a relay is necessary to install to turn off the car engine, and also a diode is necessary to add to protect the tracker driving wire, the diagram is as follow: The remote turn off car engine can be disabled by “CANCELALARM*123456”...
- Page 16 Platform User Guide Word Version Platform User Guide Word Version Notes & Trouble Shooting: Please confirm that the SIM card PIN code has been disabled, it means if mobile phone use this SIM card, it is not necessary to input any password. Otherwise the tracker can not find GSM network, the Green LED will keep ON .
-
Page 17: Specification
move the tracker in the open air (Indoor room can not receive GPS signal) . 10. If the tracker can not send back information by SMS, please confirm the SIM card has enough money, and has ID caller display function and SMS service function, and please read the SMS information of the tracker sending back, and check the instruction &... - Page 18 Customer Name Customer Phone SIM card Number Model CCTR-803B ID Number Purchase Date Expired Date Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice...
