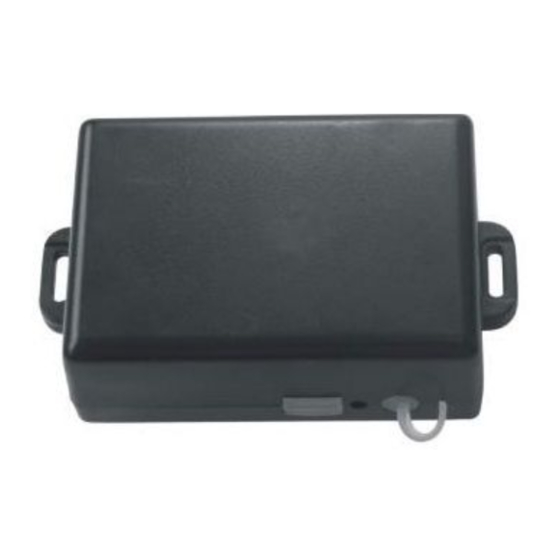

Carscop CCTR-800 Manual

Portable gps tracker
Hide thumbs Also See for CCTR-800:

Advertisement

Quick Links

Download this manual
Welcome to use this portable real time GPS tracker CCTR-800.This product is with GPS module and
GSM module, that has many new and unique functions, such as big chargeable battery, strong magnetic pin,
water-proof, real time uploading current location to server, uploading location to server function can be enabled
& disabled by user (controlled by SMS), playing back history tracking on website or mobile phone, SMS locate
with google map, sensitive shock sensor built in to control power saving etc. It contains high capacity
rechargeable polymer battery (2000mAH), and intelligent power saving makes the tracker can work max to 2-3
months in the power-saving-mode.
This CCTR-800 can be used as personal tracker without platform, send SMS to turn off the uploading
server function, and trigger locate by SMS or calling is OK.
Using the unique username and password, you can check the history track max to 6-12 months, the real
time location, and set the over speed alarm, the geo-fence alarm and so on. The website is www.999gps.net. It
is suit for personal user or fleet user, and it can locate object by visiting website, wap visiting by phone, Android
App or iOS iPhone App on mobile phone, WeChat on mobile phone (Android,iPhone,Symbian,Windows
phone,Blackberry), sending sms etc.
The CCTR-800 is specially designed for portable tracking, such as cars trucks bus personal & moving
equipment tracking, it is no installation and easy to use, put the tracker in car or bring in bag is OK.
iPhone App Download
CCTR-800 Portable GPS Tracker
QR-Manual Download (Word)
QR-Manual Download (Pdf)
Android App Download
-1-
-20140716
Wechat Official Account

Advertisement

loading
Need help?

Need help?

Do you have a question about the CCTR-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carscop CCTR-800

Summary of Contents for Carscop CCTR-800

  • Page 1 (2000mAH), and intelligent power saving makes the tracker can work max to 2-3 months in the power-saving-mode. This CCTR-800 can be used as personal tracker without platform, send SMS to turn off the uploading server function, and trigger locate by SMS or calling is OK.

  • Page 2: Before Using

    Product USB Charging Wire 12/24V Car Adapter The following is the optional accessory 12-24V DC Adapter Home AC Adapter (USA) Home AC Adapter (Europe) Before Using Power ON / OFF If the tracker is powered OFF, press and hold the SOS Button and release after the GREEN LED is ON, then the tracker is powered ON.
  • Page 3 4.1 Use Car charger, connect the USB wire to car charger and CCTR-800 tracker, insert the car charger to car is OK, if the LED on the car charger change to Green, it means the charging is finished. The fully charging need about 5-10 hours.
  • Page 4 Low power Battery:8% Back to default set (Factory configuration) Send the SMS command to the tracker can reset to the factory configuration. The SMS command is FACTROY*123456. Please see the detail in following description. ANTENNA The Antenna of GSM and GPS are built in the tracker. So please leave the tracker away from big metal, that will reduce the GSM and GPS signal.
  • Page 5 Basic Locate Operation & Setting 1. Add authorized phone number Send SMS“ADDPHONE*123456*A*number”(Not including the quotation marks “ ”, Number means the telephone number you want preset, the following is same) to tracker is OK, “ADDPHONE” is a command; “123456” is password; “A” is authorized number location, every tracker have 3 authorized phone number locations, A and B, and C, so you can set 3 phone numbers, if the add operation is success, the tracker will send back the information ”Add Preset Phone OK”, if the password is not right, the operation is fault, the...
  • Page 6 direction to user. The SMS information sample is as follow: Latitude:22.679675N Longitude:114.147141E Speed(km/h):45.0 Direction:303.30 ： 2013/02/02 08:29:06 Battery ： The unit of latitude and longitude is 'DEG.'. The unit of direction is 'DEG.' which means the angle between the moving direction and the due north anticlockwise. 303.30, for example, means the car is in the northwest and the angle between the due north is 59.70 DEG.(360-303.30= 59.70), like below.
  • Page 7 Send SMS “CHANGEPASSWORD*123456*888888” to tracker, “CHANGEPASSWORD” is a command; “123456” is old password; “888888” is new password; if the operation is success, the tracker will send the information “ New Password： 888888” to every preset phone number, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
  • Page 8 The tracker has 3 GSM work modes. Mode 1 (Factory Mode) ------ Shock control standby Send SMS “MODE*123456*1” to the tracker, “MODE” is a command, “123456” is password, “1” is the mode 1. If the operation is success, the tracker will send back the information “SET MODE 1 OK”. This mode is the default GSM work mode.
  • Page 9 the interval time from 30 to 999, unit is second. The tracker will send back information “Set Interval yyy OK”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. 30 seconds is the default interval time. Longer upload interval time can save battery and GPRS data cost, but this will make the total mileage to more error.
  • Page 10 send back information “Reset Tracker and cancel all alarm setting”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. The tracker will power off and then power on automatically, this will take a few minutes, and then cancel all the alarm setting in the tracker, including shock alarm, move alarm, geo-fence alarm, over speed alarm, etc.
  • Page 11 Shock Alarm https://maps.google.com/maps?q=22.67680N,114.15188E Battery:91% In the default, the shock alarm is OFF. 13. Enable And Disable Overspeed Alarm: Send SMS “OVERSPEEDALARMON*123456*xxx” or “OVERSPEEDALARMOFF*123456” to tracker, “OVERSPEEDALARMON” or “OVERSPEEDALARMOFF” is a command, “123456” is password, “xxx” is the preset max speed, unit is km/hour. The tracker will send back the information “Set Overspeed Alarm On” or “Set Overspeed Alarm Off”...
  • Page 12 15. Enable And Disable Geo-fence Alarm Send SMS “GEOFENCEALARMON*123456*zzz” or “GEOFENCEALARMOFF*123456” to the tracker, “GEOFENCEALARMON” or “GEOFENCEALARMOFF” is a command, “123456” is password, “zzz” is the radius of the geo-fence circle, unit is km. The tracker will send back the information “Set Geofence Alarm On” or “Set Geofence Alarm Off”...

  • Page 13: Troubleshooting

    this kind of 3G SIM card can be used in this tracker, please call mobile phone company to confirm the sim card support 2G GSM network or not. 2. Please confirm that the SIM card PIN code has been disabled, Otherwise the tracker can not find GSM network, the Green LED will keep ON.

  • Page 14: Specification

    set the authorized phone number, use the authorized phone call the tracker, or delete the authorized phone number. 6. Can not login the platform: send SMS to check the ID of the tracker, then try again, if not success please contact your supplier. 7.
  • Page 15 Customer Name Customer Phone Tracker SIM card Model CCTR-800 Serial Number Purchase Date Expired Date Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice...
