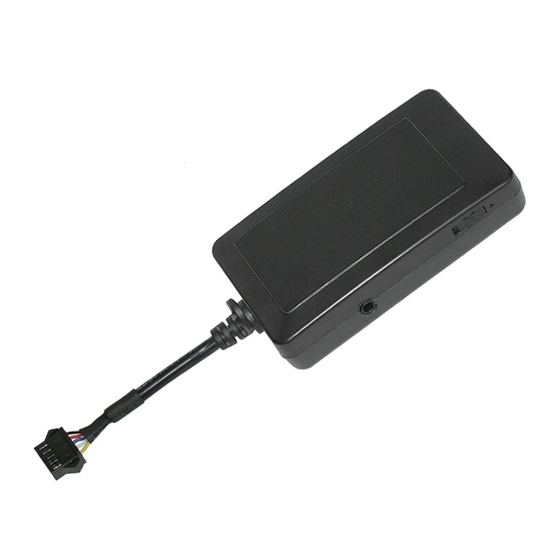

Welcome to use this real time car GPS tracker CCTR-805G.This product is with GPS module and 2G
GSM / 3G WCDMA module (with LBS locate without GPS), that has many new and unique functions, such as
built in rechargeable battery for power down alarm & tracker removed alarm, external microphone for listen
sound in car, remote turn off car engine,SOS button, playing back history tracking on website or mobile phone,
SMS locate with Google map link, sensitive shock sensor built in to control power saving etc. the tracker can
auto configure APN & GPRS setting, it is very easy to install and use, just connect the power supply is OK, the
working voltage range is 9-40V, it can be used for car (12V) or tuck (24V) bus etc.
The tracker sends the present location information through GPRS to internet server, so that user visit the
website
www.999gps.net
the ID, password is same with user name or is 123456, for example ID is 803201512345678, user name is
2345678, password is 2345678 or 123456) through any PC or mobile phone with available internet, current
location checking, history tracking playing back, alarm & running report etc can be operated, normally the
platform service charge is free (some distributor maybe sale different package of 1 year service charge free),
please confirm expired date after login the website, and the tracker will be active after the tracker power on.
User also can download Android or iPhone iOS app software to android or iPhone mobile phone, click the
app, logon with user name and password, you can locate current location & display history tracking, the user
name and password is same with the website login. Basically using mobile phone send SMS or call the tracker
can get the SMS of the current location Google map link.
This GPS tracker can be used as car alarm, fleet management, driver management etc, it can be used for
tracking cars, company vehicles, buses, taxis, trucks, etc.
iPhone App Download
CCTR-805G 3G Car GPS Tracker
with the applied user's name and password (default user name is the last 7 digital of
QR-Manual Download (Word)
QR-Manual Download (Pdf)
Android App Download
-1-
-V2-201512
Wechat Official Account
Advertisement
Table of Contents
Related Manuals for Carscop CCTR-805G
Summary of Contents for Carscop CCTR-805G
- Page 1 CCTR-805G 3G Car GPS Tracker -V2-201512 Welcome to use this real time car GPS tracker CCTR-805G.This product is with GPS module and 2G GSM / 3G WCDMA module (with LBS locate without GPS), that has many new and unique functions, such as built in rechargeable battery for power down alarm &...
-
Page 2: Before Using
Product CCTR-805G SIM Card Wires Holder Indicator SOS Button ON/OFF Switch Microphone Microphone Socket Before Using Power ON / OFF Turn the switch to the on position beside the tracker, the tracker will power on, if the tracker battery is low, the power &... - Page 3 Note: 1> This tracker use 2G GSM & 3G WCDMA network (Please confirm this 3G module frequency can be used in the SIM card 3G network, the frequency band is list in the end of this manual), and it upload tracking only through internet, it can not work in CDMA network or CDMA2000 network.
- Page 4 The SOS function need installing the external SOS button, install the external SOS button in a hidden place that driver can press the button, connect one wire of the SOS button to GND (car body), another wire of the SOS button to the tracker SOS wire is OK. Microphone Installation Hole The external microphone need insert to the socket beside the wires on the case, and install the...
- Page 5 Simply Using Step 1. First to buy a 2G GSM or 3G WCDMA mobile phone SIM card and enable data service, order a data package 20-30M (Normally most of the tracker every month data cost is lower than 20MB), install in the tracker, please refer Before Using 2.
- Page 6 Setting”. Add authorized phone number Send SMS“ADDPHONE*123456*A*number”(Not including the quotation marks “ ”, Number means the telephone number you want preset, the following is same) to tracker is OK, “ADDPHONE” is a command; “123456” is password; “A” is authorized number location, every tracker have 3 authorized phone number locations, A and B, and C, so you can set 3 phone numbers, if the add operation is success, the tracker will send back the information ”Add Preset Phone OK”, if the password is not right, the operation is fault, the...
- Page 7 “KEEPONLINE” or “SHOCKCONTROLGPRS” is a command, “123456” is the tracker password, if the operation is success, the tracker will send back the information “GPRS: Keep Online” or “GPRS: Shock Control”, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 8 This tracker use GPRS to upload the information to internet server, most SIM card need active GPRS service first by SMS, the tracker can configure APN automatically after power on according different SIM card, if the APN & GPRS user name password are not right, the tracker can not upload location to platform (Red LED will flash twice, and the location can not update on the platform), then you need sending SMS to tracker to change them manually, please confirm the auto configuration of APN &...
- Page 9 Password,46000,e1d/24a0,93% V Mar 08 2015, ;Software version date CC830, ;TCP/IP Protocol name 805201512345678, ;ID number d3.igps.info ;Server Domain Name 58.64.155.133,8011, ;Server IP & Port ;Uploading time interval is 30 seconds 13987654321, ;Authorized number (A/B/C) GPS OK , ;GPS status ShockControlGPS, ;GPS module shock control WCDMA ;Current network is WCDMA...
-
Page 10: Locate Operation
1> If forgot the password, you can not reset by the SMS command. 2> After back to default set, if the IP/APN/GPRS name & password are changed manually, you need set these again by sending SMS. Locate Operation 1. Making a Call to trigger report location by text description Using authorized phone call the tracker, after ring 3 times, the tracker will hang up the call automatically and locate immediately, a few seconds later, the tracker will send back the location information with text description by SMS to the caller. - Page 11 If the authorized number have been set, use the authorized phone number to send SMS “URL#” to the tracker also can trigger the tracker locate and reply the location with Google map link. 4. LBS Locate with Google map link without GPS signal After sending SMS or calling the tracker to trigger locate, if the tracker can not receive GPS signal or GPS signal weak (underground park or indoor etc), the tracker will change to LBS locate (located by GSM network base station), and reply a location with Google map link to the caller or sender.
- Page 12 tracker also can trigger the tracker to enter arm state. The shock alarm SMS is as follow: Shock Alarm https://maps.google.com/maps?q=+40.756441,-73.986378 Send SMS “SHOCKALARMOFF*123456” to tracker, “SHOCKALARMOFF” is a command, “123456” is password, the tracker will send back the information “Set Shock Alarm OFF” to indicate the operation is success and disable the shock alarm, if the password is not right, the operation is fault, the tracker will send back information “Wrong Password”.
- Page 13 the password is not right, the operation is fault, the tracker will send back information “Wrong Password”. Note: RESET and FACTORY also can cancel all alarm setting, about the difference please see above. 8. Listening or Monitor sound around tracker Send SMS “LISTEN*123456”...
- Page 14 Platform Operation Guide The platform operation please refer the platform operation guide, scan the following QR code or click the website link to download the platform manual, visit website www.999gps.net and click the Manual icon also can download the platform manual. Platform User Guide Word Version Platform User Guide Word Version Notes &...
-
Page 15: Specification
After power on the tracker, the tracker GREEN LED keep on, and it has not any repose, and no ring, please confirm the SIM card has been installed properly, the SIM card PIN code is disable, and the SIM card has enough charge, and the mobile phone can work well in that place. -
Page 16: Warranty
Customer Name Customer Phone SIM card Number Model CCTR-805G ID Number Purchase Date Expired Date Distributor Notes: The explanation of this manual is belonged to our company, some small changes may not notice...
