Route Inputs and Outputs

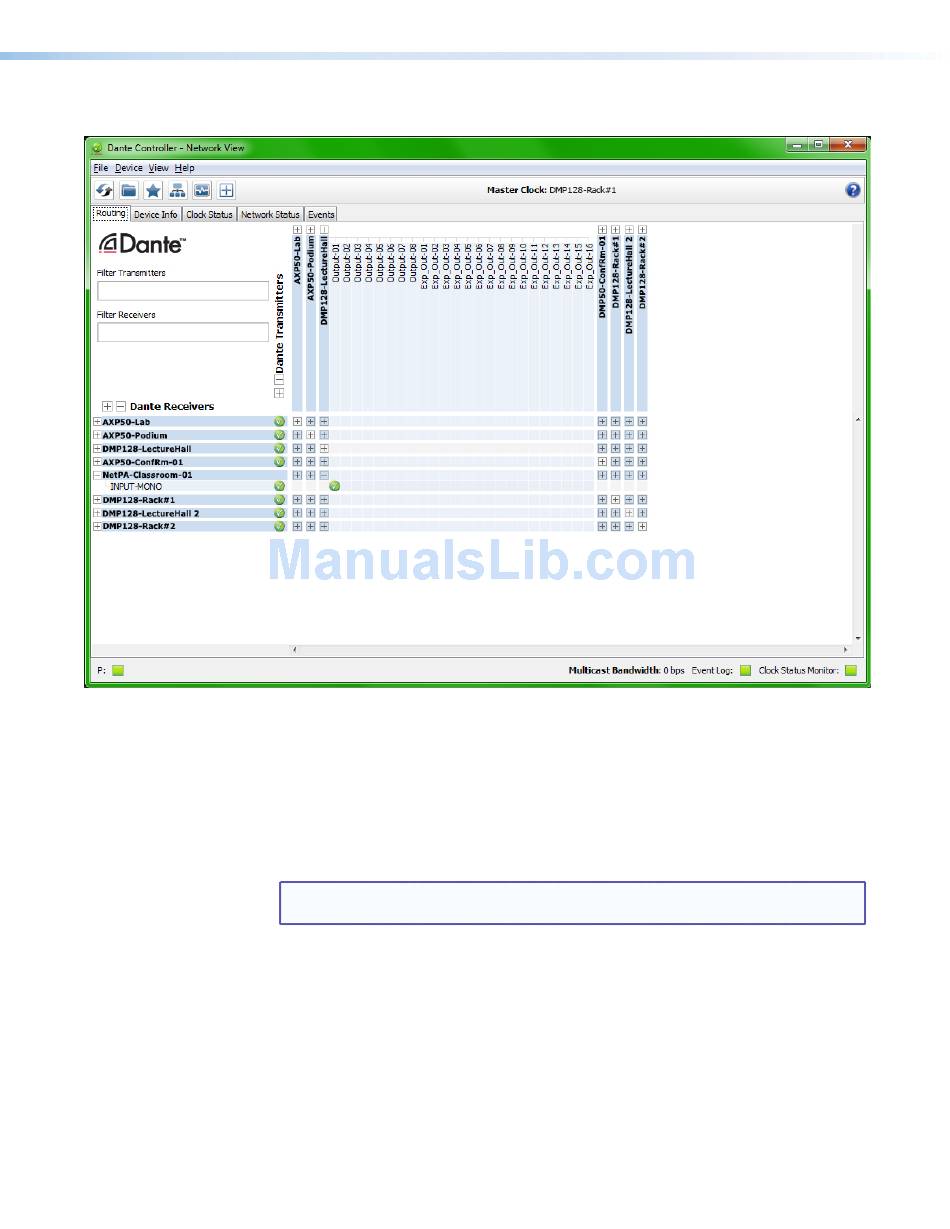

Figure 14.
1. Click the
Classroom-01 in the example above).
All device outputs (transmitters) display horizontally.
2. Click the junction of the desired connection
(Example: DMP128-LectureHall Output-01 to NetPA-Classroom-01 INPUT-MONO).
A checkmark at the junction indicates the connection is made. A checkmark is also
placed next to the receiver channel.
NOTE: An input (receiver) can only connect to one output (transmitter). An output
(transmitter) can connect to multiple inputs (receivers).
3. Click the junction again to disconnect the input from the output.
Routing Inputs and Outputs
box next to the input channels (receivers) on the NetPA (NetPA-
+
