Selecting Inputs and Outputs for Dante

Dante Controller is used for all network level signal routing of AT bus inputs and outputs.
The digital input channels of the NetPA AT are shown in Dante Controller as receivers. The
digital inputs are available in Dante Controller for routing to other Dante devices.

Routing Signals using Dante

Channels received from the network are routed using the
screen,
Figure 12.
The transmitters, listed horizontally along the top of the screen, and the receivers, listed
vertically down the left side, form a matrix whose intersections are the connection points
between the receivers and transmitters.
•
•
One of the following icons appears at each connection intersection, indicating the status of
both the transmitter and receiver channels and the connections (subscriptions):
Icon
tab (see figure 12).
Routing

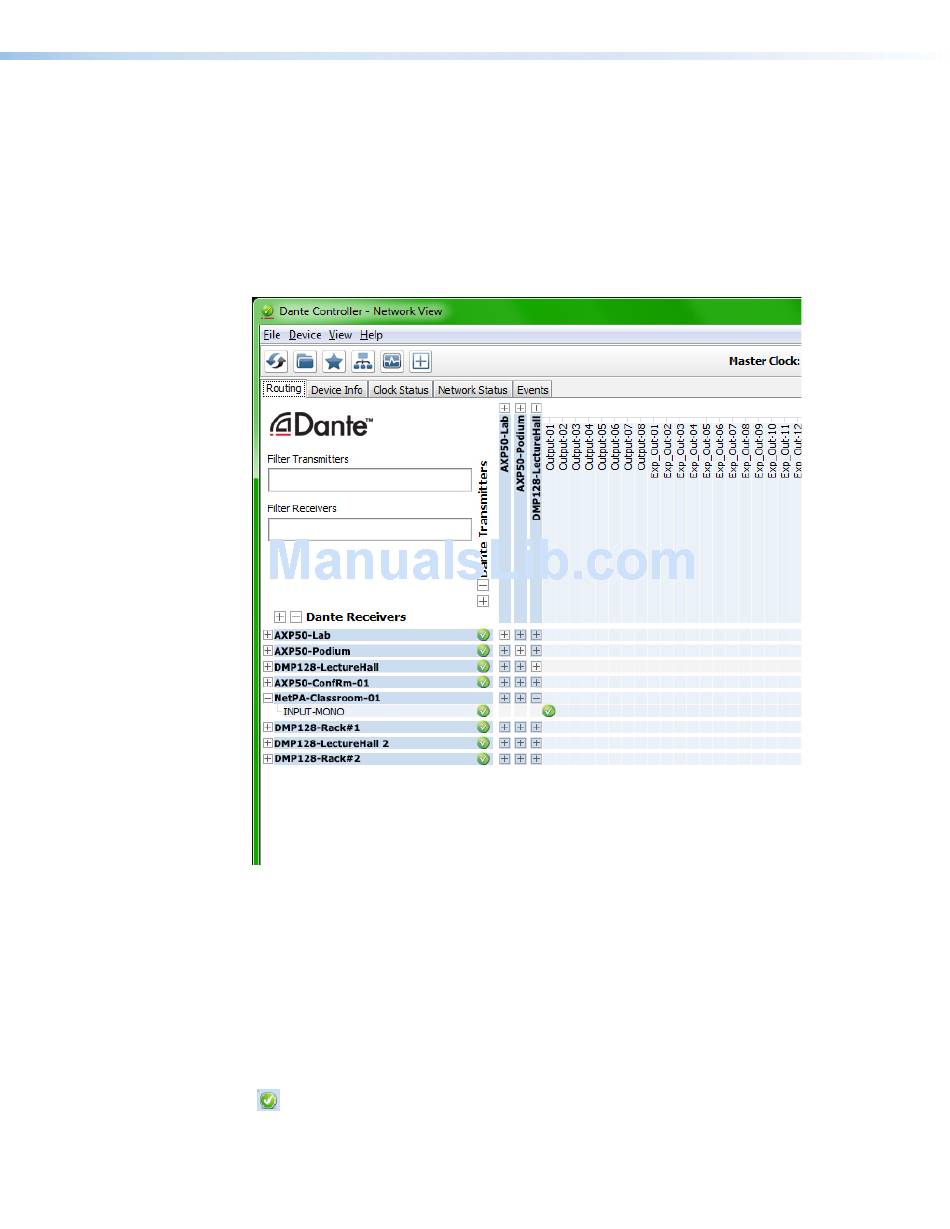

Dante Network View Screen, Routing Tab
To make the receiver-to-transmitter connection, click once on an intersection.
To break a connection, click on the icon at the intersection.
Description
Indicates an active connection (subscription).
