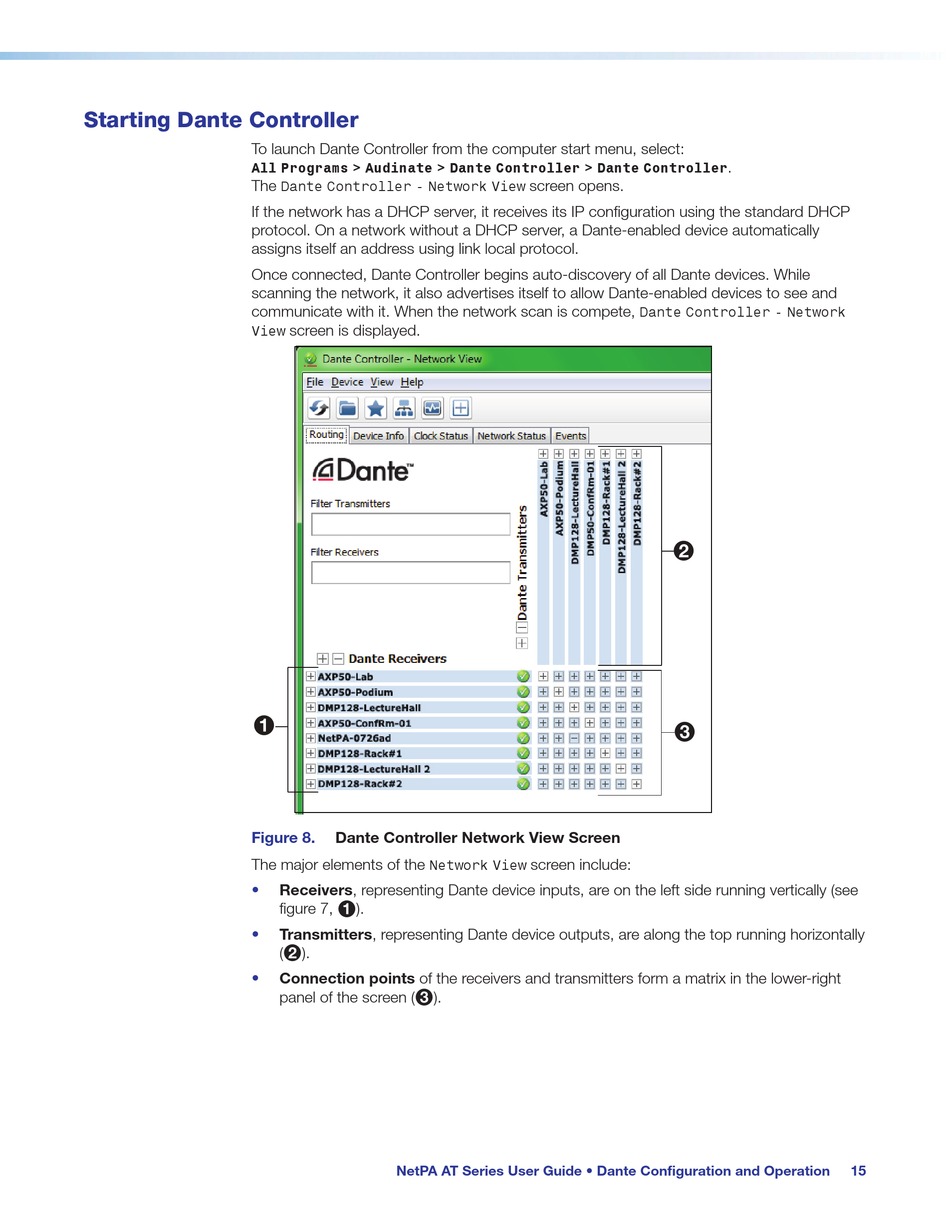

Starting Dante Controller

To launch Dante Controller from the computer start menu, select:
All Programs > Audinate > Dante Controller > Dante Controller
The
If the network has a DHCP server, it receives its IP configuration using the standard DHCP
protocol. On a network without a DHCP server, a Dante-enabled device automatically
assigns itself an address using link local protocol.
Once connected, Dante Controller begins auto-discovery of all Dante devices. While
scanning the network, it also advertises itself to allow Dante-enabled devices to see and
communicate with it. When the network scan is compete,
View
1 1
Figure 8.
The major elements of the
•
•
•
Dante Controller - Network View
screen is displayed.
Dante Controller Network View Screen
Network View
Receivers, representing Dante device inputs, are on the left side running vertically (see
figure 7, ).
1
Transmitters, representing Dante device outputs, are along the top running horizontally
( ).
2
Connection points of the receivers and transmitters form a matrix in the lower-right
panel of the screen ( ).
3
NetPA AT Series User Guide • Dante Configuration and Operation
screen opens.
Dante Controller - Network
2 2
3 3
screen include:
.
15
