Under-desk Mounting

The table or wall mounting brackets extend approximately 1/4 inch (6.4 mm) above the top
surface of the enclosure. This design allows for an air space between the enclosure and the
surface to which it is mounted.
Mount the NetPA AT under a desk or table as follows:
1. Attach the MBU 125 brackets.
2. Hold the unit with the attached brackets against the underside of the table or other
furniture. Mark the location of the screw holes of the bracket on the mounting surface.
3. Drill 3/32 inch (2 mm) diameter pilot holes, 1/4 inch (6.4 mm) deep in the mounting
surface at the marked screw locations.
4. Insert #8 wood screws into the four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4 inch of the screw's head protrudes.
5. Align the mounting screws with the slots in the brackets and place the unit against the
surface, with the screws through the bracket slots.
6. Slide the unit slightly forward or back, then tighten all four screws to secure it in place.

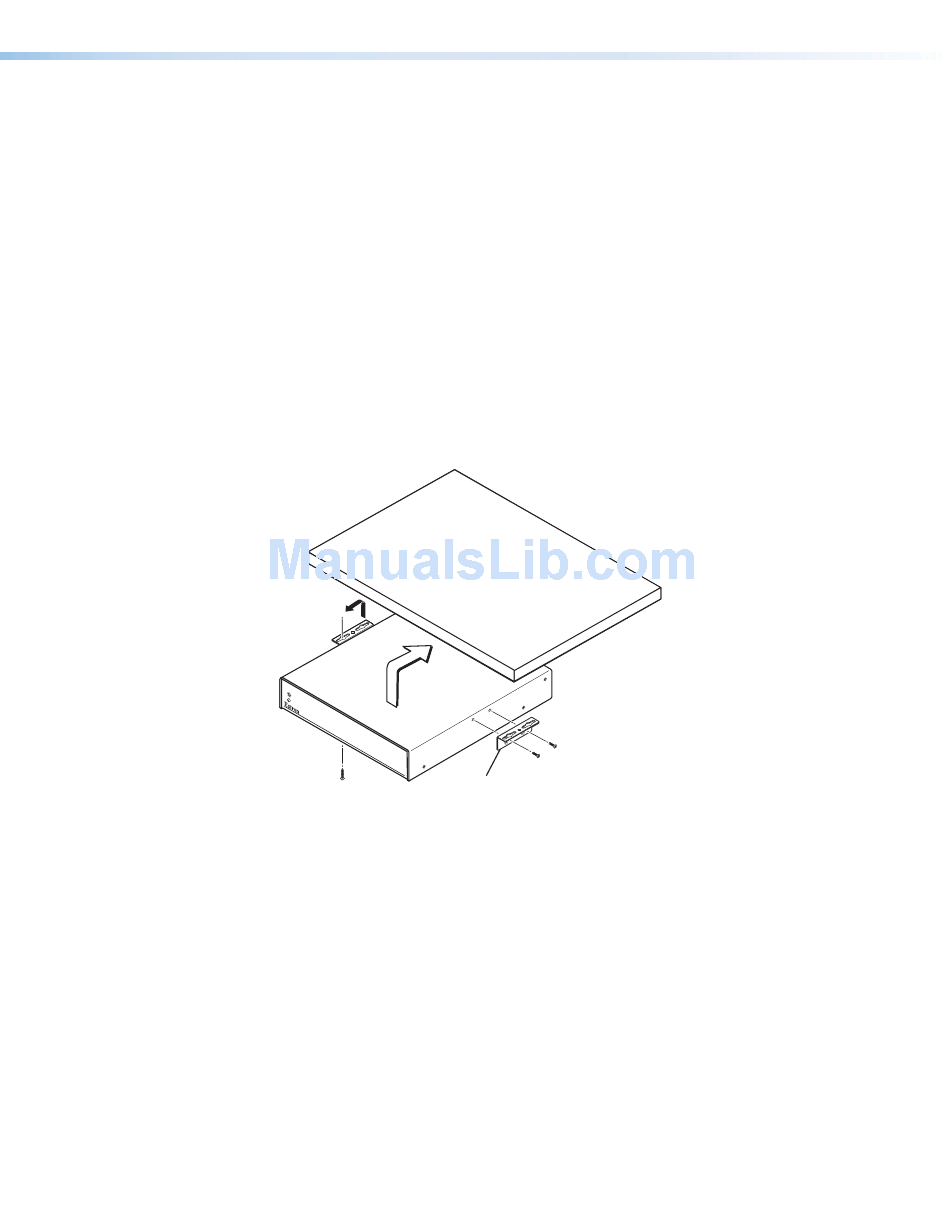

Figure 18.

Other Mounting Options

The NetPA AT can also be installed under furniture using the UTS 100 and
UTS 150 under-table shelf system.
MBU 125
Under-furniture Mounting
