2.2 Device components

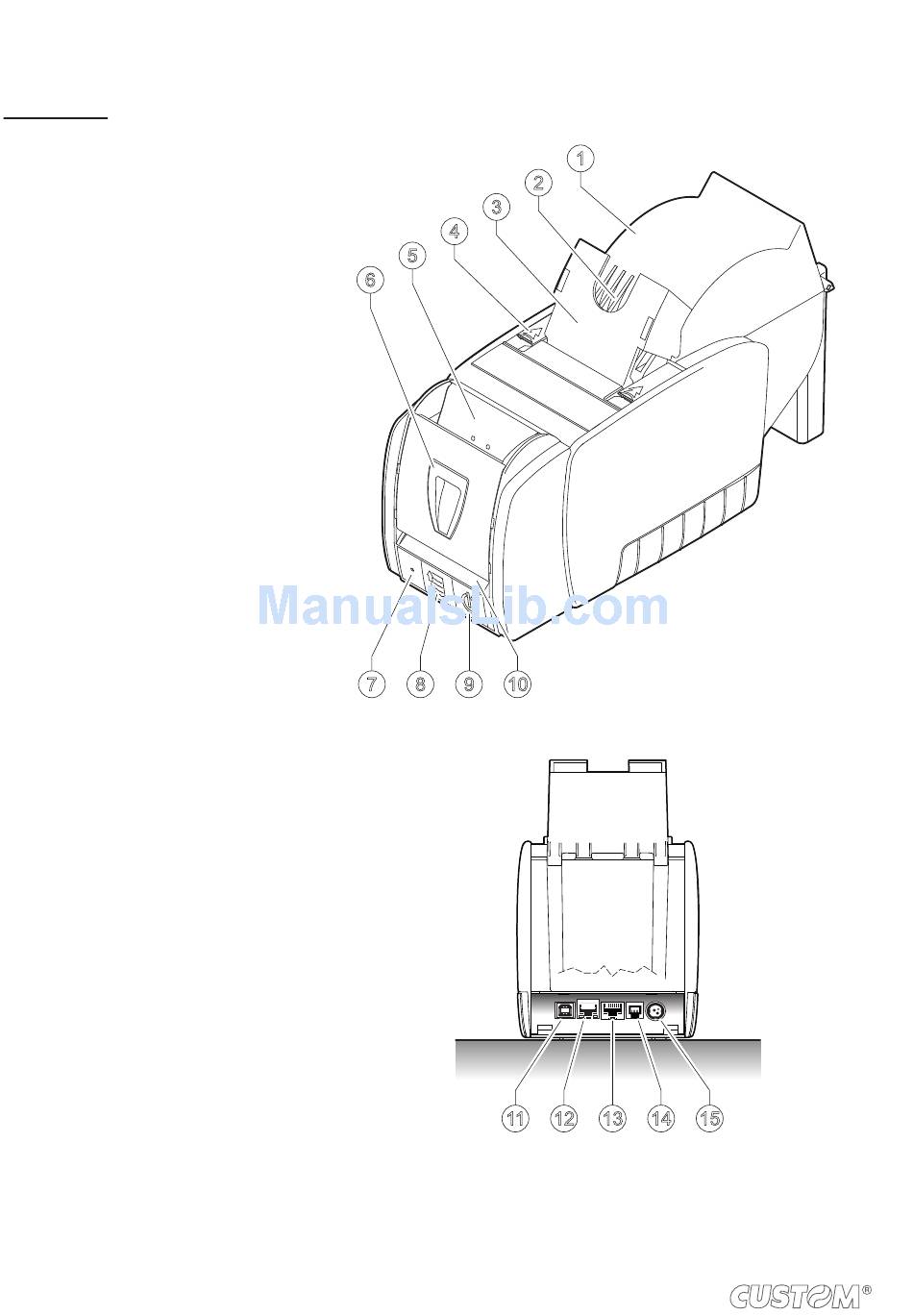

External view
1. Paper compartment
1
2. Paper out (Printer)
2
3
3. Stacker
4
4. Opening lever (Printer)
5
5. Paper in (Scanner)
6
6. Opening key (Scanner)
7. Status led
8. FEED key
9. ON/OFF key
10. Paper out (Scanner)
11. USB potr
12. Ethernet port
13. RS232 serial port
14. Drawer port
15. Power supply port
7
8
9
10
11
12
13
14
15
