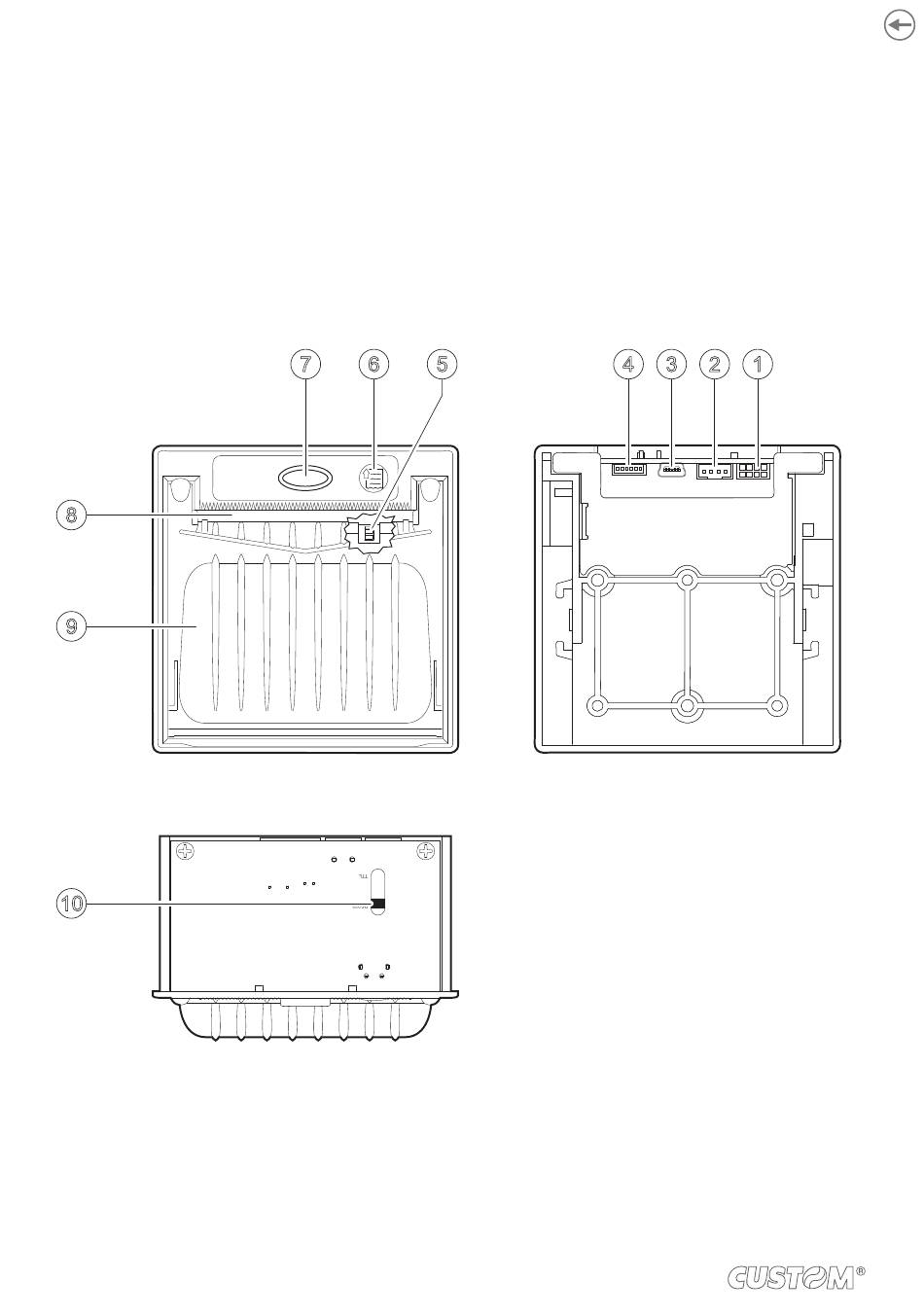

3.2 Device components
1. Connector for 8÷42 Vdc extended range module
2. Power supply port
3. USB port
4. RS232/TTL serial port
5. Paper presence and black mark alignment sensor
8
9
10
14
6. FEED key
7. OPEN key and status LED
8. Paper out with serrated blade
9. Paper compartment
10. Switch for RS232/TTL serial communication
7
6
5
4
3
2
1
