11.3 Embedded Web Server: access

To enter the Embedded Web Server, type the IP address assigned to the device into Web browser. To know the IP address
of the device, print the Set-up report of the device (see chapter 5) or use "Locator". For example, if IP address of the device
is 192.168.10.37, type in the Web browser:
http://192.168.10.37

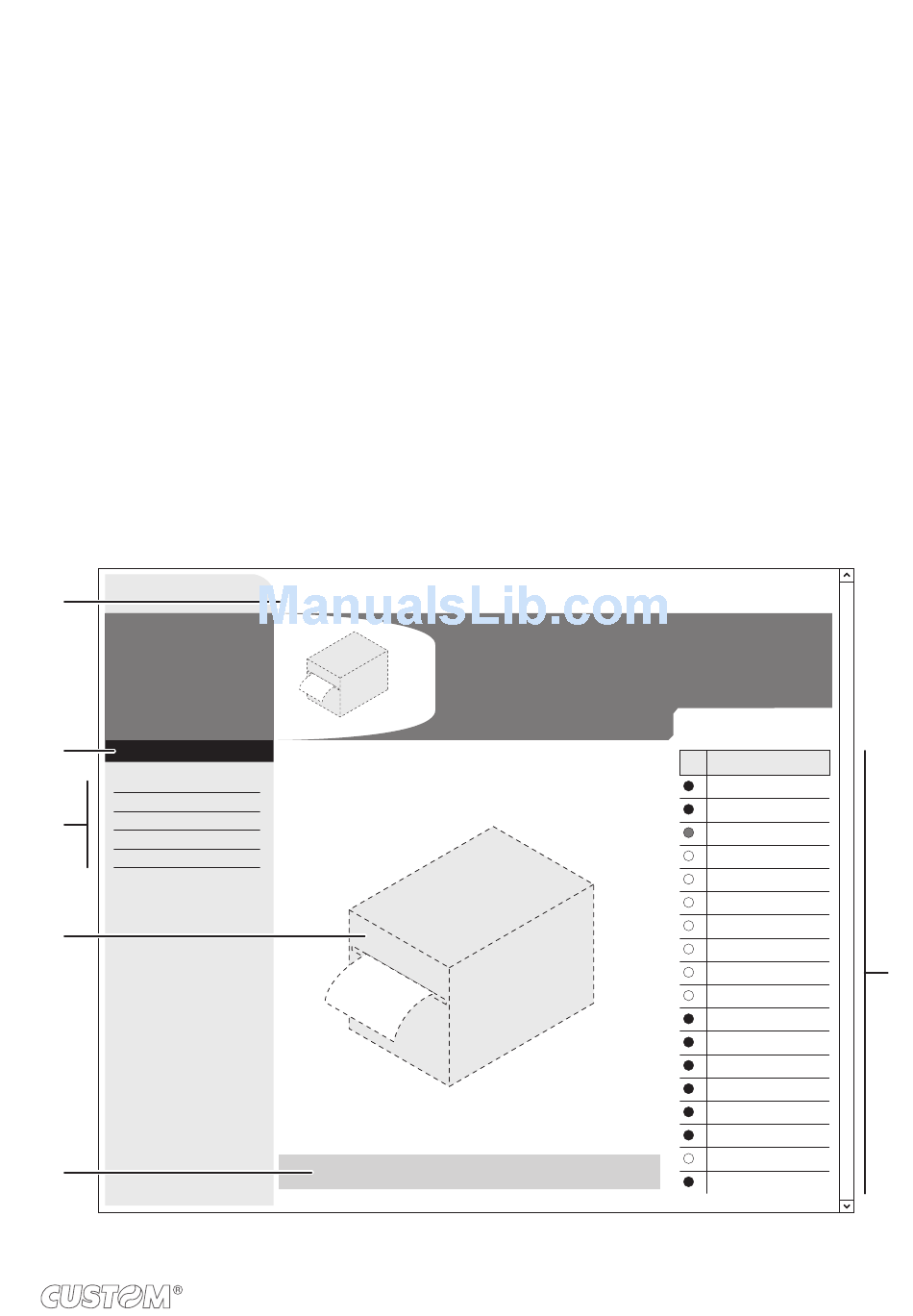

On the screen will appear the internal default page that corresponds to the section "Device Info" The home page is divided
into 6 areas whose functions are dribed below:
1. SECTIONS:
2. CURRENT PAGE
3. TOOLS
4. PRINTER PICTURE
5. REAL TIME STATUS
6. TIME AND DATE
1
Web Site
2
DEVICE INFO
RealTime Status
Model Information
Printer Parameter
3
Network Settings
Advanced Status
4
6
The web server has three sections listed within each web page. These sections are:
Device Info, Printer Settings, Printer Support.
Reports section currently displayed.
Lists the tools available within the chosen section.
Displays a picture representative of the device operational status. The picture changes
depending on the parameters reported in area number 5.
Report a list of operating parameters controlled and monitored in real time (with a regular
refresh from 5 to 15sec).
Displays the current time and date.
DEVICE INFO │ PRINTER SETTINGS │ PRINTER SUPPORT
R >
T E
R I N
< P
12:00 01-01-14
< Device name >
R >
T E
R I N
< P
Cover Open
Cover Open
Paper End
Near Paper End
Paper rolling
Paper End
Ticket Out
LF key pressed
FF key pressed
S1 key pressed
S2 key pressed
Over temperature
Supply Voltage error
Cutter error
Cutter Open
Memories Error
Paper Jam
Notch Search...
Notch Error
75
