1 1
6 6

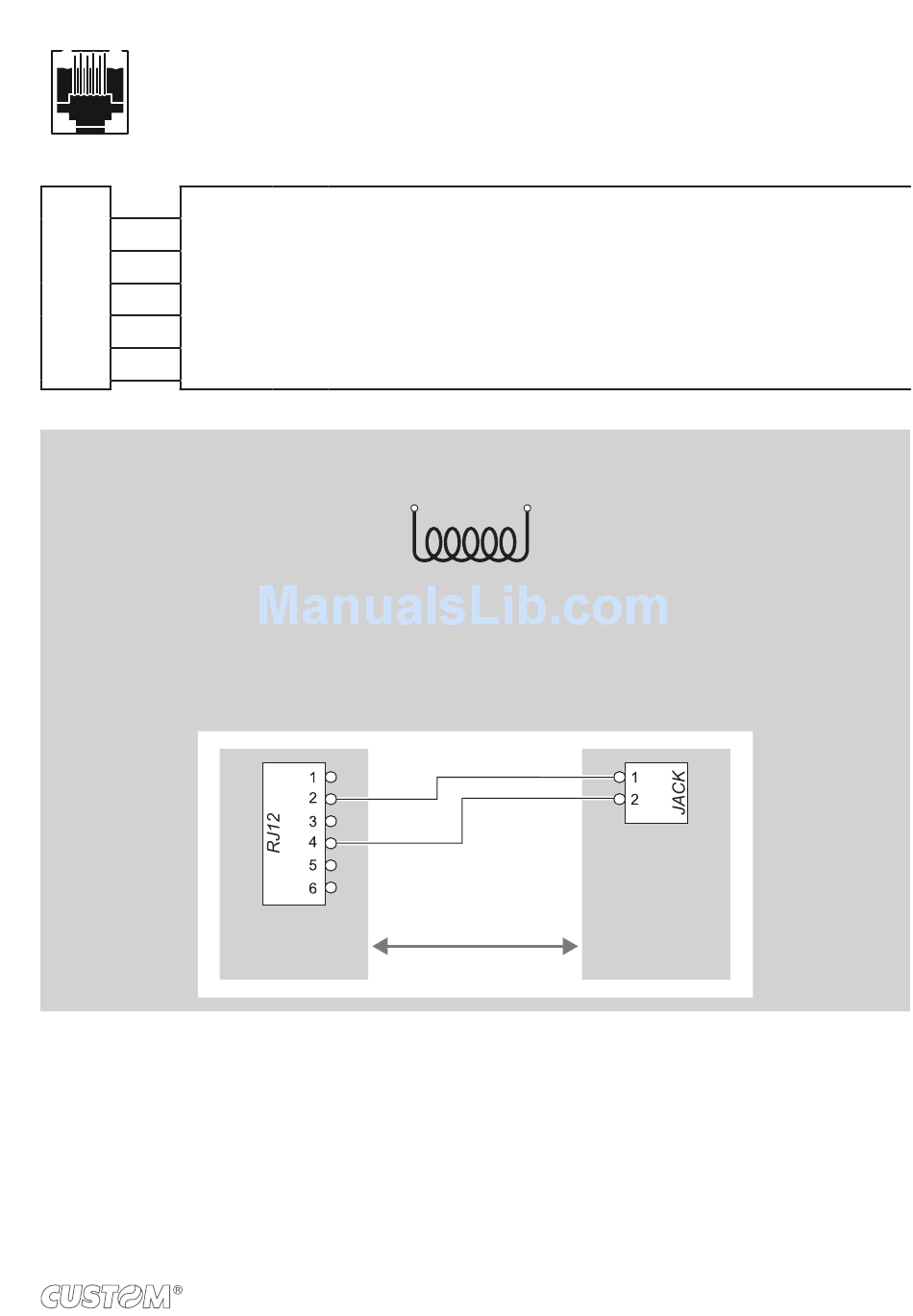

DRAWER CONNECTOR

Female RJ12 connector
1 GND
2 SOL1
3 CASS
J7
4 +24 Vdc
5 n.c.
6 GND
NOTES:
The solenoid of the drawer 1 must be connected from Pin 2 to Pin 4 on the drawer connector
KUBE II SCANNER VERIPRINT > CASH DRAWER (optional) connection
Use an optional adapter cable RJ12-Jack to connect the device to a cash drawer. Refer to the picture below for the
connector pin signals
(out)
Drawer 1 command (open collector)
(in)
Drawer status
PIN 4
SOL
+24Vdc
DEVICE
PIN 2
DRAWER 1
(-)
(+)
CASH
DRAWER
23
