Procedure in NEC ESMPRO Manager
1.
Select the target component in the [ft] tree.
2.
Check the current state with the "State" display on the target component screen. If the
component is operating, stop the component.
3.
Click the [Diagnostics] button in the [Maintenance] screen for the target component.
The diagnosis result can be verified by "Result" of the diagnosis on the target component
screen. The result of the diagnosis is reported by the NEC Express5800/ft series as an
alert.
The result of diagnosis executed last is displayed in the [Diagnosis Information] column.
In addition, if a fault is detected by the result of the diagnosis, the state of the [General]
tree of the component is changed.

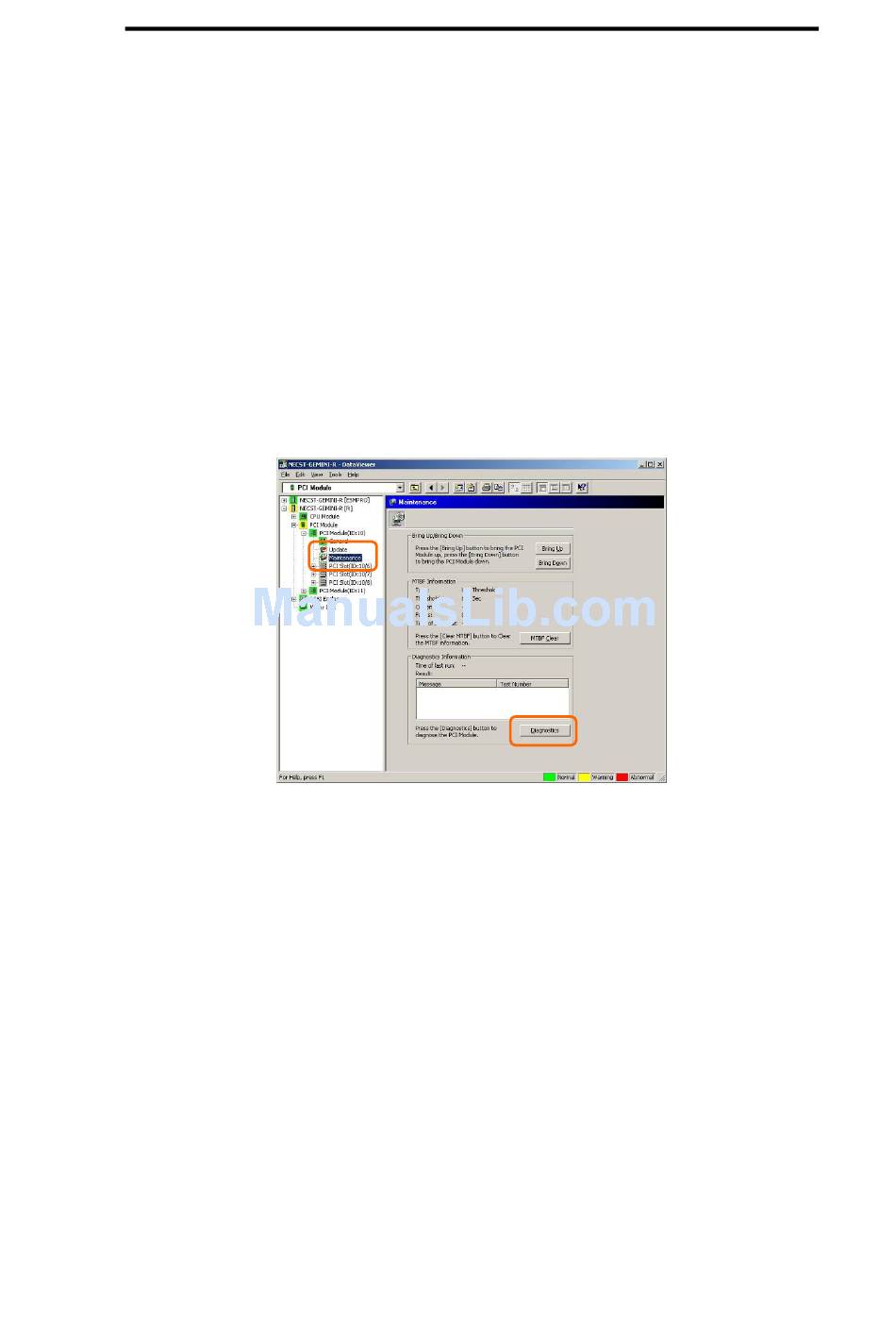

Sample screen of NEC ESMPRO Manager
[Maintenance] screen of PCI module
[PCI Module] – [Maintenance]
