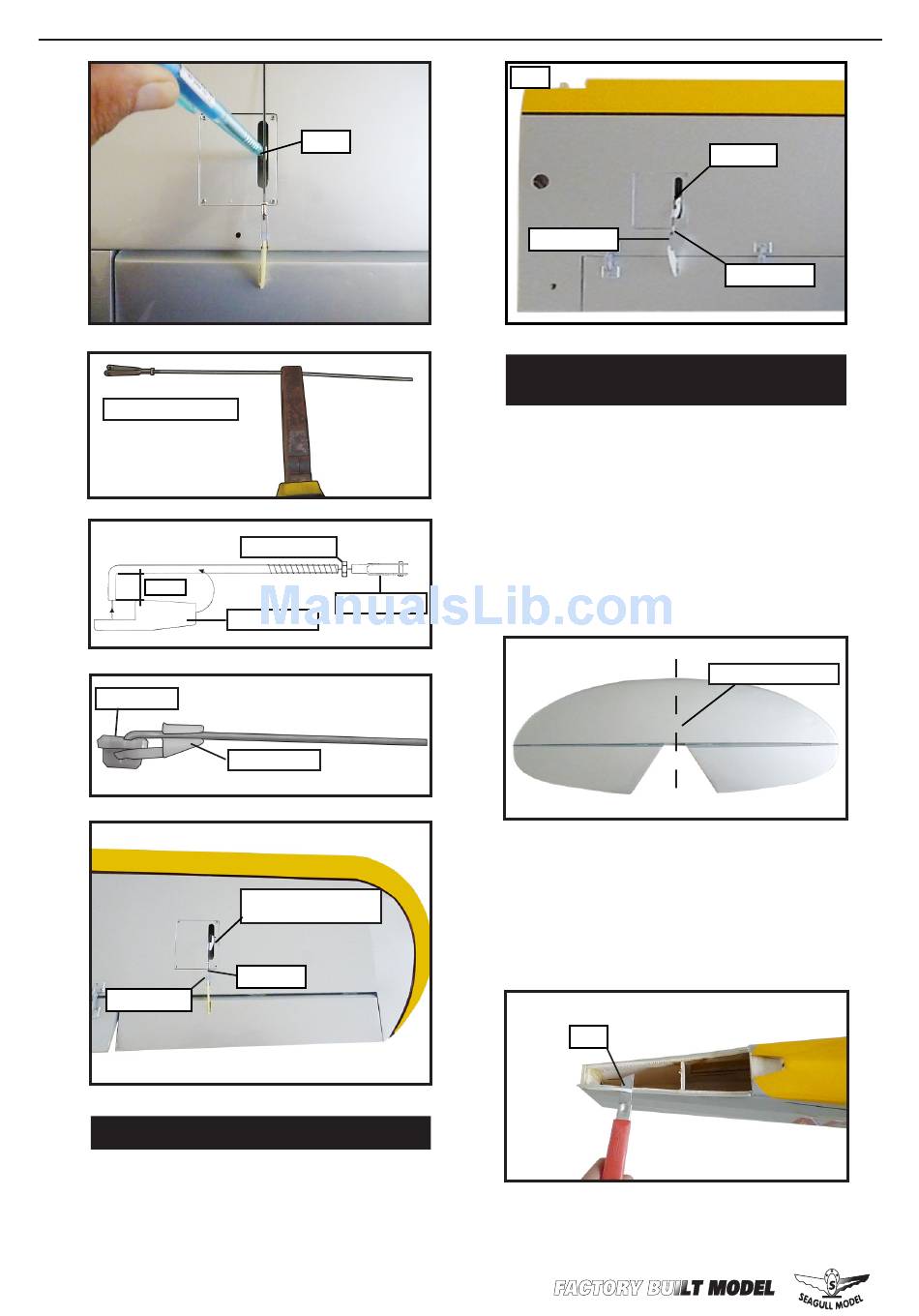

FUNKY CUB 10cc-15cc
Bend at the mark
8mm
Servo arm.
Fuel tubing.
INSTALLING THE FLAP PUSHROD.
Repeat the procedure for the aileron
pushrod.
18
Mark.
M2 lock nut.
Metal clevis.
Snap keeper.
Snap keeper.
Nylon Snap keeper.
Hex Nut.
Instruction Manual.
Flap.
M2 clevis.
INSTALLING THE HORIZONTAL
STABILIZER.
1) Using a ruler and a pen, locate the cen-
terline of the horizontal stabilizer, at the
trailing edge, and place a mark. Use a tri-
angle and extend this mark, from back to
front, across the top of the stabilizer. Also
extend this mark down the back of the
trailing edge of the stabilizer.
2) Using a modeling knife, carefully re-
move the covering at mounting slot of
horizontal stabilizer ( both side of fuse-
lage).
Cut.
Hex nut.
Fuel tubing.
Draw center line
.
18
