FUNKY CUB 10cc-15cc
3) Carefully bend the second nylon tube up
at a 45º angle. This tube is the vent tube.
4) Test fit the stopper assembly into the tank.
It may be necessary to remove some of the
flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
5) With the stopper assembly in place, the
weighted pick-up should rest away from the
rear of the tank and move freely inside the
tank. The top of the vent tube should rest just
below the top of the tank. It should not touch
the top of the tank.
6) When satisfied with the alignment of the
stopper assembly tighten the 3 x 20mm ma-
chine screw until the rubber stopper expands
and seals the tank opening. Do not over-
tighten the assembly as this could cause the
tank to split.

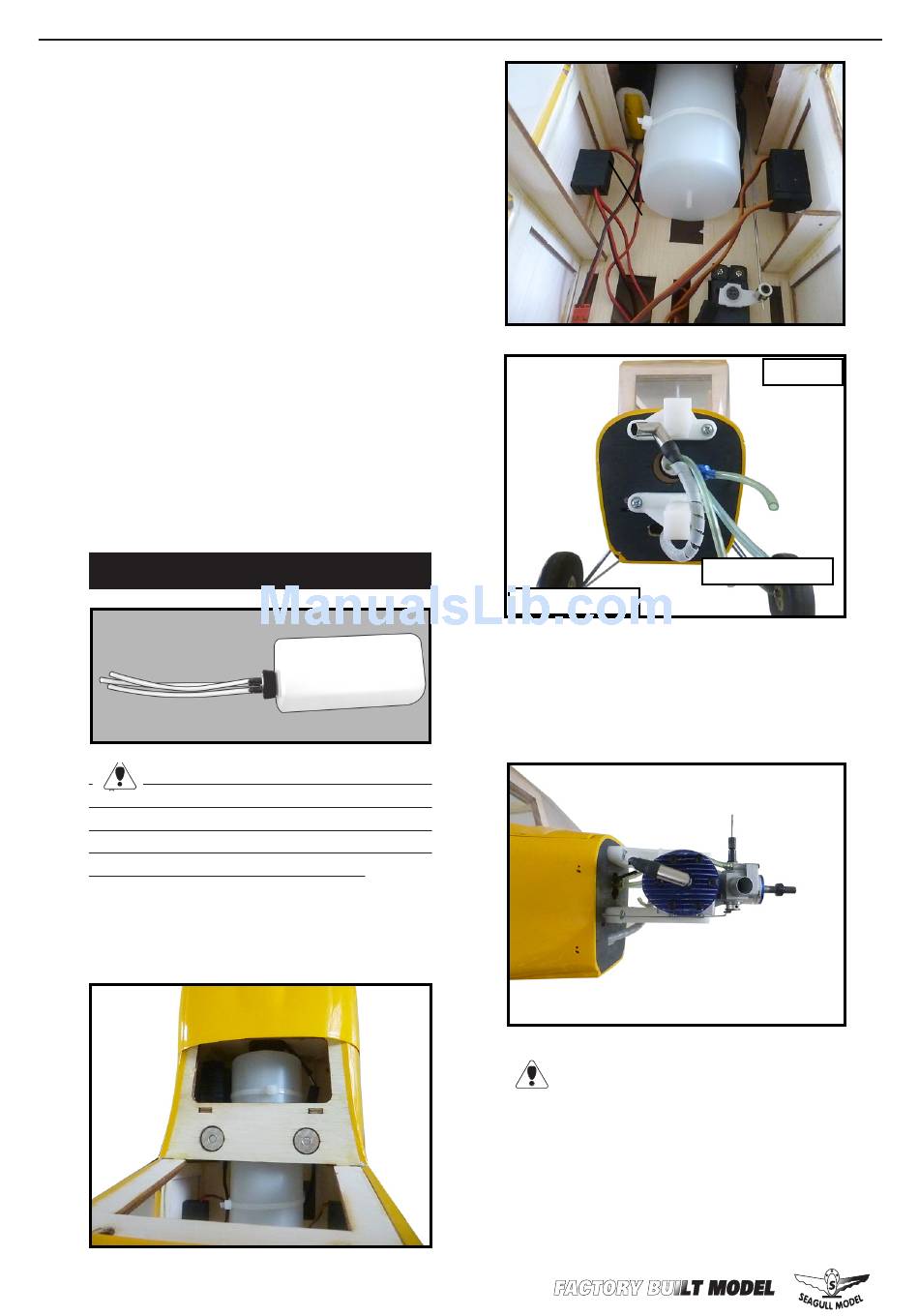

FUEL TANK INSTALLATION.

You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once the
tank is installed inside the fuselage, it may be
difficult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in
the firewall.
8
Instruction Manual.
Fuel pick up tube.
8) Connect the lines from the tank to the en-
gine and muffler. The vent line will connect
to the muffler and the line from the clunk to
the carburetor.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
through easily.
Vent tube.
Fuel fill tube.
