EPSON Stylus Photo RX900

4.2 Removal of Exterior Parts

4.2.1 Panel Assy

C A U T I O N Take care not to damage any cables with any screw that is
projecting from the Shield of the Main Board.
1. Raise the LCD, and remove the Panel Cover while opening it longitudinally outward
with your thumbs placed in the central space for the LCD.
2. Remove the screws (x4) securing the Panel Assy.
3. Open the Scanner Unit, and remove the USB Cable Cover.
4. Remove the screws (x2) securing the Middle Cover.
5. Release the hooks of the Middle Cover and Panel Assy from the printer.
6. Disconnect the FFCs of the LCD and Panel Board from the Main Board.
Before installing the Middle Cover, make sure that the cables
are routed properly without any of them placed over the post
on the bottom of the Middle Cover.
Install the Middle Cover while engaging its rear-side hooks (x3)
with the printer body.
Disassembly and Assembly
Panel Cover
Panel Assy
USB Cable Cover
Post
Middle Cover
Removal of Exterior Parts
C.B.P-Tite 3x8 F/ZN-3C (x4)
⋅
Torque: 0.6 ± 0.1N m
Hook (left)
C.B.P-Tite 3x10 F/ZN-3C (x2)
Torque: 0.6 ± 0.1N

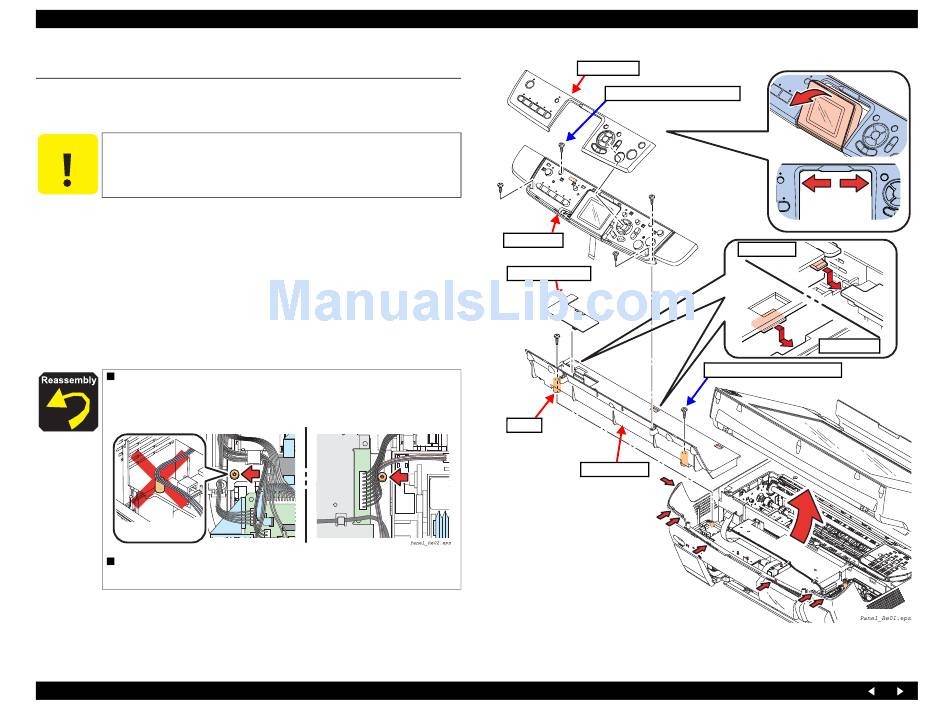

Figure 4-1. Removing the Panel Assy
Revision A
Remove while
opening here left
and right
Hooks (x2)
⋅
m
80
