EPSON Stylus Photo RX700

2.1 Overview

This Chapter describes the operating principles of the mechanism and electric circuits
of Stylus Photo RX700.

2.1.1 Mechanical Components

The printer of Stylus Photo RX700 consists of the following major mechanisms:
Printhead (p.21)
Carriage Mechanism (p.22)
APG Mechanism (p.23)
Paper Feed Mechanism (p.26)
CD-R Mechanism (p.28)
Paper Loading Mechanism (p.30)
Ink Supply System (p.36)
Pressure Pump Mechanism (p.38)
Ink System (p.40)
In addition to the mechanisms mentioned above, the following mechanisms and circuit
boards constitute Stylus Photo RX700:
Scanner Unit (p.41)
Main Board (p.44)
Panel Board (p.47)
Power Supply Board (p.48)
Operating Principles for "ECOS"
Paper Eject Roller
E/J Assy
CR Assy
Printhead
Ink System Assy
CR Guide Shaft

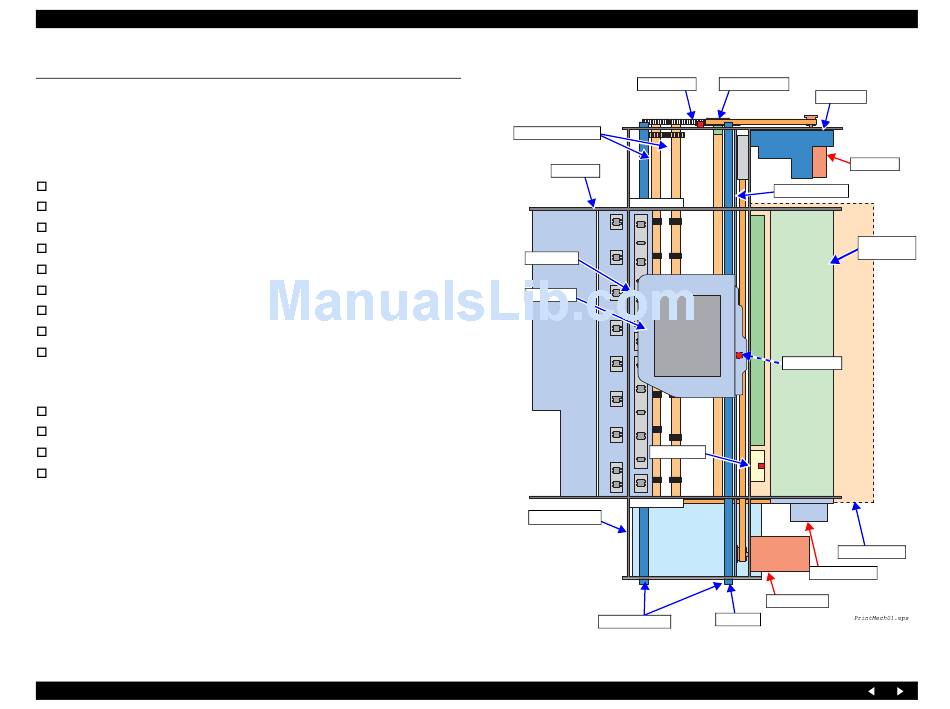

Figure 2-1. Schematic Printer Mechanism
Overview
PF Encoder Encoder Scale
APG Assy
Encoder Scale
CR Encoder
PE Sensor
ASF Motor
CR Motor
CR Belt
Revision A
PF Motor
Rear Paper
Guide Assy
ASF Rear Assy
18
