4.4.1 ASF Rear Assy

1. Remove the Middle Housing. (p.88)
2. Remove the screw, and remove the LD Roller Guide and spacer.
3. Remove the Paper Block Levers (x2) upward.
4. Remove all the connectors connected to the Relay Connectors.
5. Remove the screw, and remove the Nylon Clip.
6. Disconnect all the cables from the ASF Rear Assy.
7. Remove the right and left screws (x2).
8. Disengage the hooks (x2) on the CR Motor side and the hooks (x2) on the front side,
and remove the ASF Rear Assy.
(Continued to next page)
Disassembly and Assembly
Disconnect the
lead wires
Hooks (x2)
Torque: 0.8 ± 0.1N
C.B.S-Tite 3x6 F/ZN-3C
Spacer
Disassembly and Assembly of Major Parts of Printer
Nylon Clip
Screw SHAFT ATTACHMENT BOARD CR-3C
ASF Rear Assy
⋅
m
LD Roller Guide
Paper Block Lever (x2)

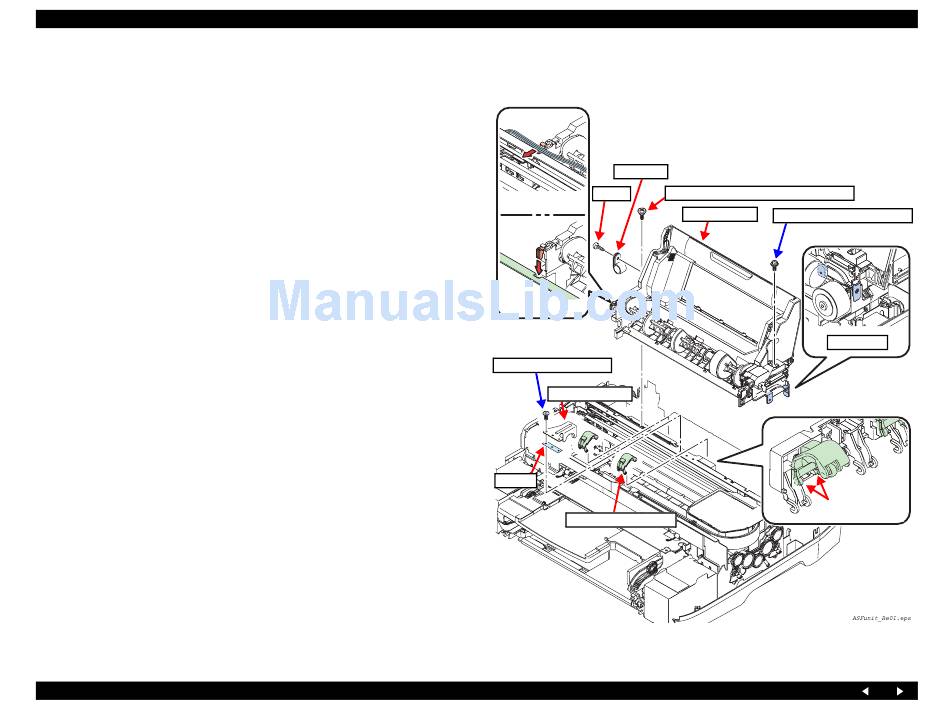

Figure 4-35. Removing the ASF Rear Assy
