19 | VMAX IP Plus™ NVR

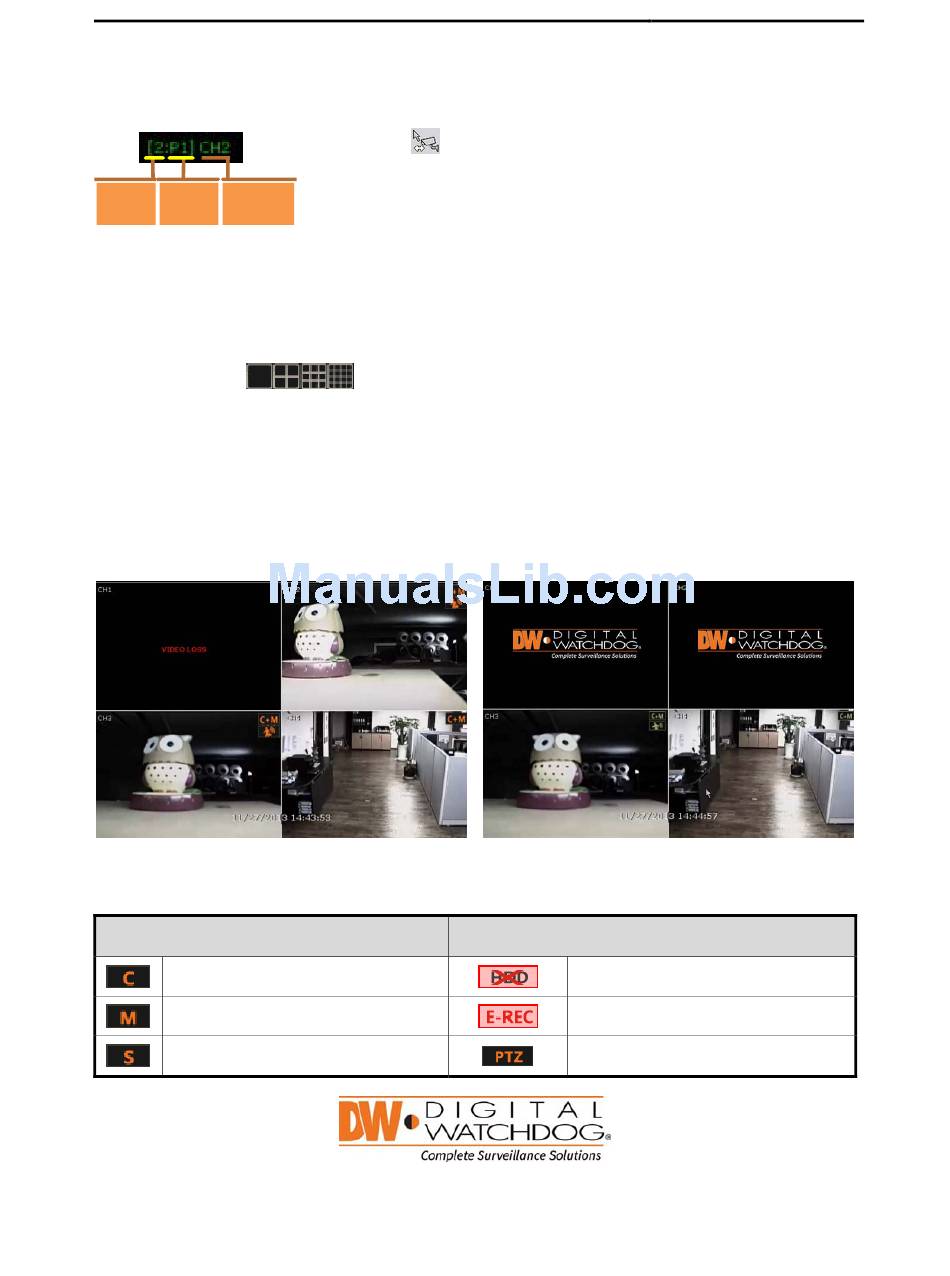

3.4.3. Change channel
User can change channel by drag & drop from the live display screen.
Select a camera by clicking on it and dragging it to its new channel. During the dragging, the mouse pointer
Channel PoE Port Channel
No. No. Title
3.5

Live Display Mode

3.5.1. Channel Selection
Live image can be seen by easy button operation after power-up. The images can be seen in 1, 4, 9 and 16
screen splits (some split options may not be available according to the NVR's number of channels). Whenever
the up/down arrow button on the front panel or IR remote controller is pressed, and whenever the screen
display mode button (
channel or sequence of channels.
To switch from a multi-channel view to a single camera, click on the selected channel. To return to previous
screen mode, click of the left mouse button again.
"VIDEO LOSS" is shown on the display screen when no camera is connected or disconnects suddenly. When
a camera is disconnected, a warning sound shall be generated depending on the system setting.
Admin users can set different level of authorization for each user, granting them specific access to specific
channels. If a certain user is not authorized to view a channel, no image is shown on the display screen as
below.
3.5.2. Icons
In live mode, icons will appear on the screen to notify of the system mode or status.
Icon shown at the right-upper corner on each
channel screen
Continuous Recording
Motion Detection Recording
Sensor Activated Recording
will change to . In case of a PoE camera, channel title will be shown as in
the example below.
In Live mode, user can check the status of PoE cameras by selecting [PoE
STATUS] menu in the pop up menu window.
) on the tool bar is clicked, the screen will change to display the next
Icon shown at the right-bottom corner on full screen
No HDD detected
Emergency Recording is in use
PTZ is enabled
