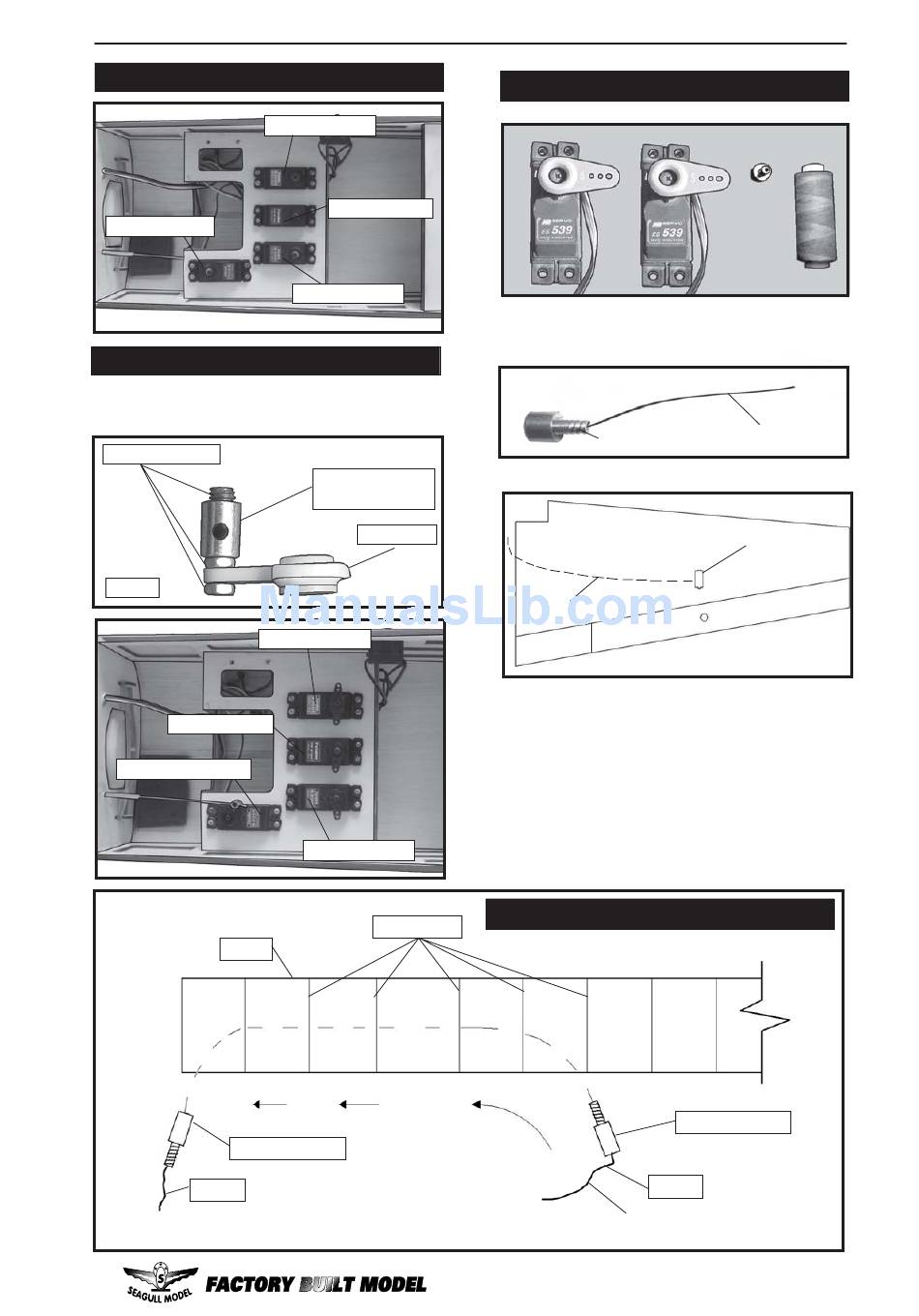

Installing The Aileron Servos - Seagull Models CAP 232 Assembly Manual

INSTALLING THE FUSELAGE SERVO.
Throttle servo .
THROTTLE SERVO ARM INSTALLATION.
Install adjustable servo connector in the servo
arm .
Loctite secure.
1 PCS.
Elevator servo .
Rudder servo .
Throttle servo arm.
Wing.
Small Weight.
String.
Attach the string to the servo lead and carefully thread it though the wing.
www.seagullmodels.com
Elevator servo .
Rudder servo .
Elevator servo .
Adjustable Servo
connector.
Servo arm.
Elevator servo .
Wing rib.

INSTALLING THE AILERON SERVOS.

Servos.
Installing the aileron servo in place using the
same techniques used to flap servo.
Small weight.
Electric wire.
INSTALLING THE AILERON SERVOS.
String.
Small weight.
Thread.
String.
Aileron
Servo.
Small Weight.
13
