To customize the chart layers:
1. Select Chart Detail Level from the Chart Menu Tab. Press the RIGHT Cursor key to select
Custom. Selecting Custom adds the Custom Chart Layers menu to the Chart menu.
2. Press the DOWN Cursor key to select Custom Chart Layers, and press the RIGHT Cursor
key to access the submenu.
3. Use the 4-WAY Cursor key to select a layer and turn it on (visible) or off (hidden). All
changes take place immediately.
1

Map Borders

2 Other Points of Interest (POI)
3 Navaids
4 Navigable Canals (thin, dark blue lines)
5 Roads
Map Borders allows you to display or hide map borders. The dotted lines of a Map Border indicate
an area which contains a different map. Use the 4-WAY Cursor Control key to move the active
cursor within a map border, and press the ZOOM + key to view the different map.
Spot Soundings allows you to display or hide spot soundings, which are depth measurements
shown on the chart.
NOTE: This feature is only available with an optional-purchase microSD card.
Chart Menu Tab

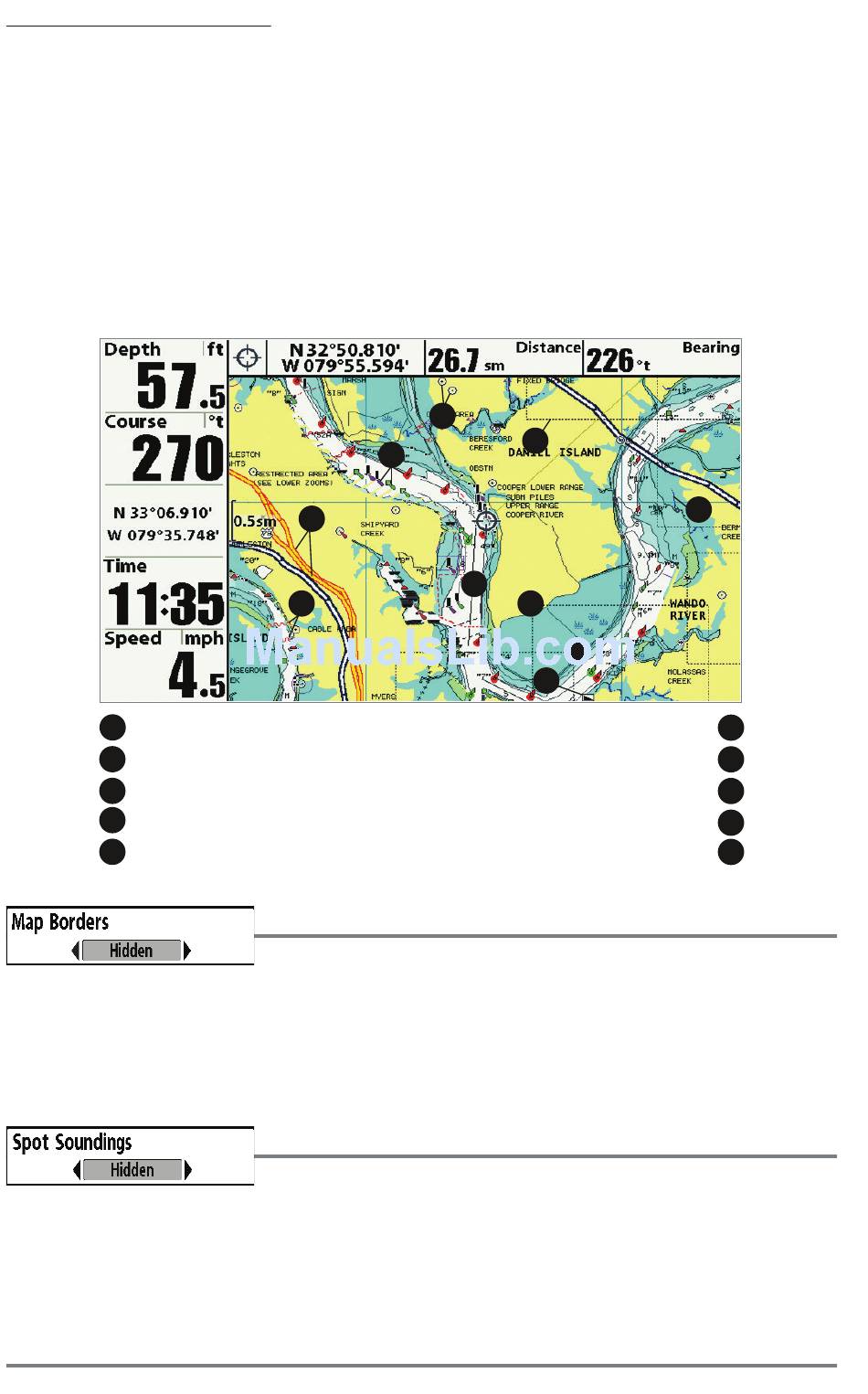

Map Borders, shown with optional-purchase
Navionics Cartography with Custom Chart Layers
3
5
8
Map Borders
Settings: Hidden, MMC/SD Only, All Visible; Default = MMC/SD Only

Spot Soundings

Settings: Hidden, Visible; Default = Visible
2
1
6
7
10
Restricted Area (dotted red lines)
Isolated Danger: Boat Ramp
128
4
9
6
Coastline 7
Bridge (wavy red lines) 8
Drying Lines
9
