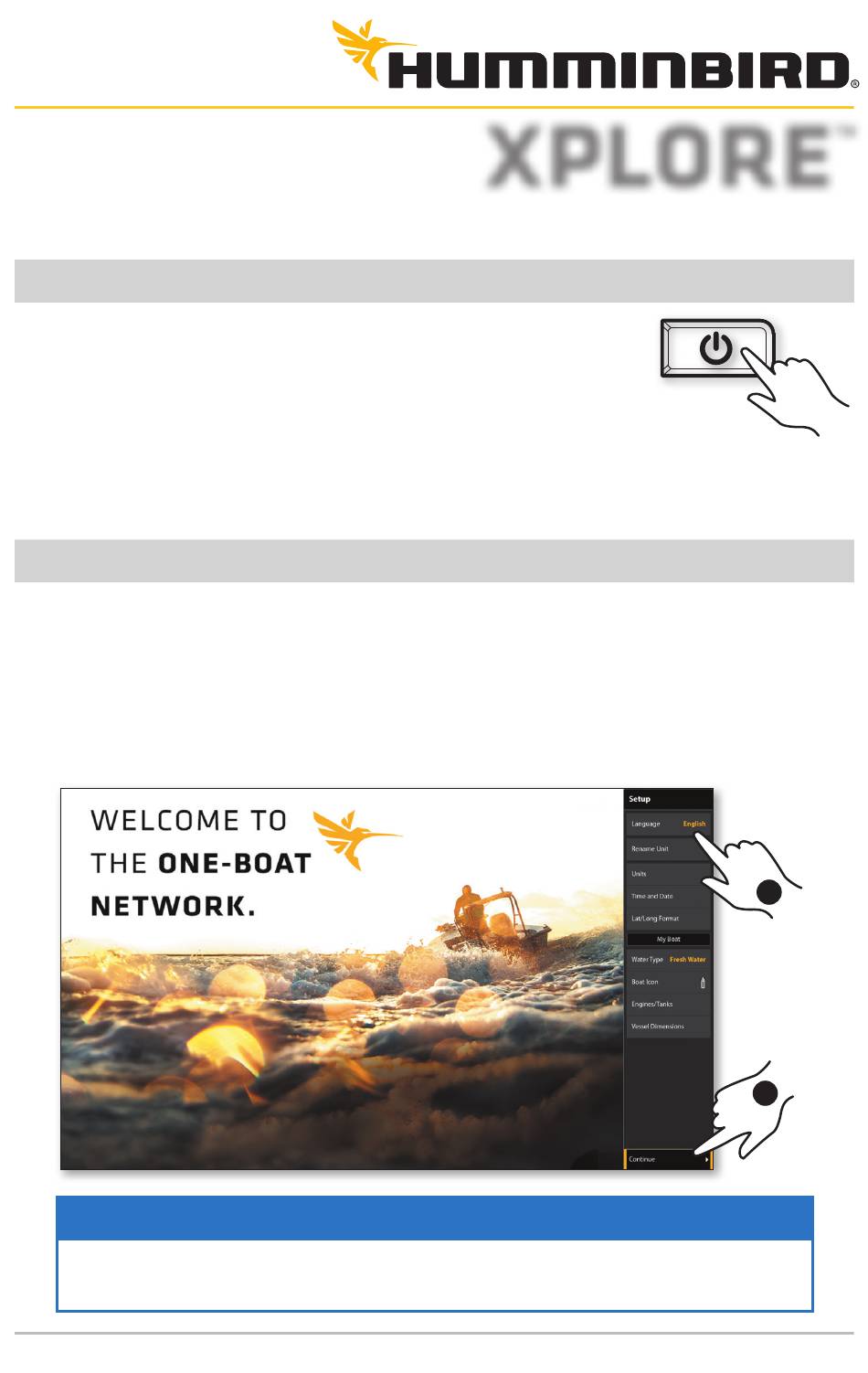

QUICK START GUIDE
Power On/Off
Power On/Off: Press the POWER key.
Power Off: During operation, press the POWER key, select
Power Off, and then select Continue.
OR
Press and hold the POWER key.
First Time Setup
When you power on the fish finder for the first time, use the Setup Guide to configure
the unit. These settings can be adjusted from the Home screen later.
1. Tap each section to configure your unit.
2. Select Continue.
For additional information, download the XPLORE Operations Manual from
our Web site at
Setup Screen
humminbird.johnsonoutdoors.com
xplore
NOTE
.
1
™
1
2
532995-1_A

Advertisement

loading
Need help?

Need help?

Do you have a question about the XPLORE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Humminbird XPLORE

Summary of Contents for Humminbird XPLORE

  • Page 1 These settings can be adjusted from the Home screen later. 1. Tap each section to configure your unit. 2. Select Continue. Setup Screen NOTE For additional information, download the XPLORE Operations Manual from our Web site at humminbird.johnsonoutdoors.com 532995-1_A...

  • Page 2: The Home Screen

    One-Boat Network connections, and other tools. Press the HOME key to open the Home screen from any view. Tools and views available on the Home screen are determined • by the equipment attached to the Humminbird network. Home Screen status bar mark waypoint...
  • Page 3 Icon Name Function Select My Data to manage your saved waypoints, spot-locks, routes, tracks, and itracks. You can My Data create new navigation data from this screen or edit your saved navigation data. Select One-Boat Network to pair your fish finder to the One-Boat App on your phone.

  • Page 4: Adjust A Menu Setting

    Select a Tool, Widget, View, or Main Menu Use the touch screen, CURSOR pad, or the ENTER key to make selections. Tap to Select Open Select Adjust a Menu Setting Drag the slider. Tap the +/- buttons. Press the +/- ZOOM keys. Close a Menu Tap the Back icon to go back one level.
  • Page 5 Tips for Using the Top Bar The Top Bar is located at the top of the screen. The Top Bar changes to match the on-screen view. touch menus change to match the on-screen view Tap the Home icon or press the Tap the Menu icon or press the HOME key to return to the Home MENU key to open the Menu for...
  • Page 6 Display a View from the Home Screen Use the touch screen to open a view from the Views menu or the Favorites menu. Use the Views menu or Favorites menu to display a view from the Home screen. Display a View from the Favorite Views Widget 1.

  • Page 7: Create A New View

    Create a New View Use the New View tool to create your own custom view. 1. Press the HOME key. 2. Select New View. 3. Select a Pane Layout from the Layout tab. 4. Tap a circle to adjust the pane size. 5.
  • Page 8 Edit the Favorite Views Favorite Views can be added (total number of Favorite Views is dependent on the fish finder model) or changed at any time. Add a New Favorite View 1. From the Favorite Views Home screen or Side Bar, tap an open view box. 2.

  • Page 9: Edit The On-Screen View

    Edit the On-Screen View (X-Press Menu) The X-Press Menu displays menu options for the on-screen view and the selected pane. 1. Single-Pane View: Tap the Menu icon in the Top bar, or press the MENU key. Multi-Pane View: Tap a pane. Tap the Menu icon in the Top bar, or press the MENU key.

  • Page 10: Activate The Cursor

    Activate the Cursor Tap a position on the view, or move the CURSOR pad, to activate the Cursor. When the Cursor is active, the Cursor menu will display in the Top bar. Cursor Menu Use the Cursor menu to mark a waypoint, create a route, open the Go To menu, or start a search.
  • Page 11 Set Up Humminbird® Charts: Set the Water Level Offset When you start your trip for the day using a Humminbird CoastMaster™ or LakeMaster® VX chart card, it is important to note if the water level is higher or lower than usual. For example, if the digital depth on your fish finder is showing 3 feet less than the related depth contour for your location, set Water Level Offset to -3 feet.

  • Page 12: Mark Waypoints

    Mark Waypoints Waypoints can be marked from any view. 1. Tap the Mark button on the Top Bar or press the MARK key. If the cursor is not active, the waypoint will be marked at the boat position. If the cursor is active, the waypoint will be marked at the cursor position.
  • Page 13 Use the following instructions to pair the fish finder to the One-Boat Network App on your phone using Bluetooth wireless technology. (Available with Bluetooth supported Humminbird products and mobile devices only. Wifi or data connection required.) Enable Bluetooth on the Phone 1.

  • Page 14: Update Software

    Support > Software Updates. Select the software update for your XPLORE model and follow the on-screen instructions to save the software file to the card. Then, power on the fish finder and install the microSD card in the card slot.
  • Page 15 Key Functions Press the POWER key to power on the fish finder. During operation, press the power key to open the Power X-Press Menu. Press and hold the power key to power off the fish finder. Press the ENTER key to start a command or turn on a setting. The ENTER key also opens the Info menu and the Cursor menu.

  • Page 16: Contact Humminbird

    Contact Humminbird Contact Humminbird Technical Support through our Help Center at https://humminbird-help.johnsonoutdoors.com/hc/en-us or by writing to the address below: Humminbird Service Department 678 Humminbird Lane Eufaula AL 36027 USA Social Media Resources: Facebook.com/HumminbirdElectronics Twitter.com (@humminbirdfish) Instagram.com/humminbirdfishing YouTube.com/humminbirdtv...
