Chart Select - Humminbird HELIX 5 SERIES Operation Manual

Lat/Lon Grid allows you to display or hide a grid showing latitude and longitude lines.
Navaids on Bird's Eye View allows you to display or hide additional navigational aids in Bird's
Eye View, such as lights and buoys.
NOTE: You will see more navigational aids with an optional-purchase microSD card.
Chart Select allows you to choose which chart to use if you have built-in charts or a map card.
If you select Auto, your unit will select a chart automatically (see microSD Card Slot: Add Maps
to your Control Head).
NOTE: The microSD Card requires a separate purchase. For more information, visit our Web site at
humminbird.com or contact Humminbird Customer Service at 1-800-633-1468.
Set Simulation Position allows you to set the position of the boat used in the Simulator. Press
any arrow on the 4-WAY Cursor Control key to activate the cursor and move it to the coordinates
where you want start the simulation. Then confirm the position using the Set Simulation menu
setting.
NOTE: The cursor must be active in order for this procedure to work. If the cursor was not active before
you began this procedure, an error message will appear. Exit the menu, set the cursor, then try again.

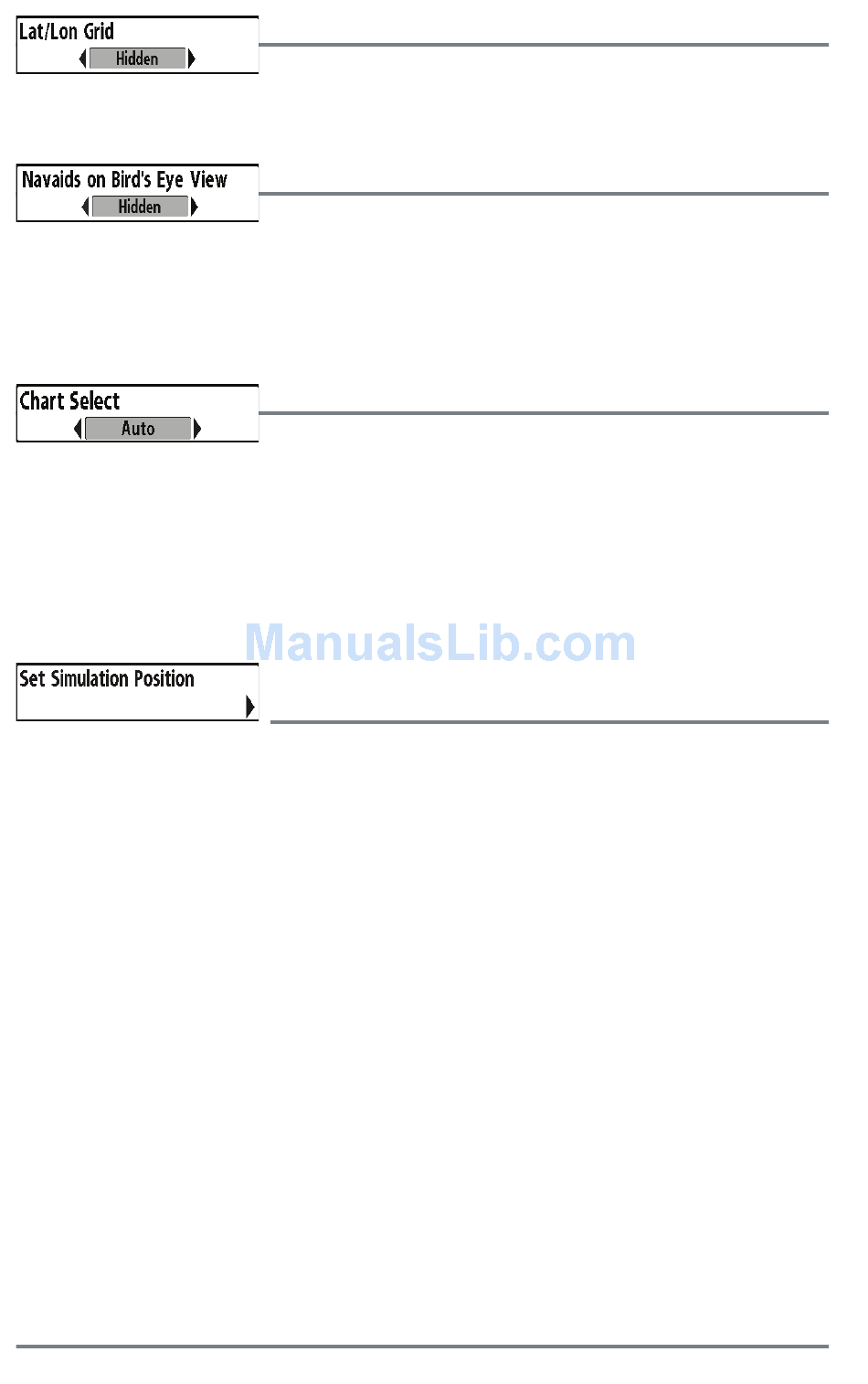

Chart Menu Tab
Lat/Lon Grid
Settings: Hidden, Visible; Default = Hidden
Navaids on Bird's Eye View
Settings: Hidden, Visible; Default = Visible

Chart Select

Settings: Various, Default = Auto
Set Simulation Position
(Advanced)
Settings: Press the RIGHT Cursor key and follow screen instructions to
activate.
