Fish ID Sensitivity adjusts the threshold of the Fish ID+ detection algorithms. Selecting a higher
setting allows weaker returns to be displayed as fish. This is useful for identifying smaller fish
species or baitfish. Selecting a lower setting displays fewer fish from weak sonar returns. This is
helpful when seeking larger species of fish.
Fish ID Sensitivity is used in conjunction with Fish ID+. Fish ID+ must be On for Fish ID Sensitivity
to affect the ability of the Fishfinder to identify sonar returns as fish.
RTS Window sets the RTS Window to Wide or Narrow, or turns it off in the Sonar View. The RTS
Window always updates at the fastest rate possible and only displays returns that are within the
transducer beam. See What's on the Sonar Display for more information.
RTS Window (Wide)
NOTE: The Wide RTS Window does not use grayscale.
Sonar Colors allows you to select which color palette you would like to use for the display. The
palette you choose will be applied to the Sonar Views.
• Gray: Light Gray (weak) to Black (strong)
• Green: Dark Green (weak) to Light Green (strong)
• Inverse: Black (weak) to White (strong)
• Original Palette: Cyan (weak) to Red (strong)
• Palette 1: Navy Blue (weak), Purple (medium), Yellow (strong)
• Palette 2: Navy Blue (weak), Green (medium), Yellow (strong)
• Palette 3: Navy Blue (weak) to Red (strong)

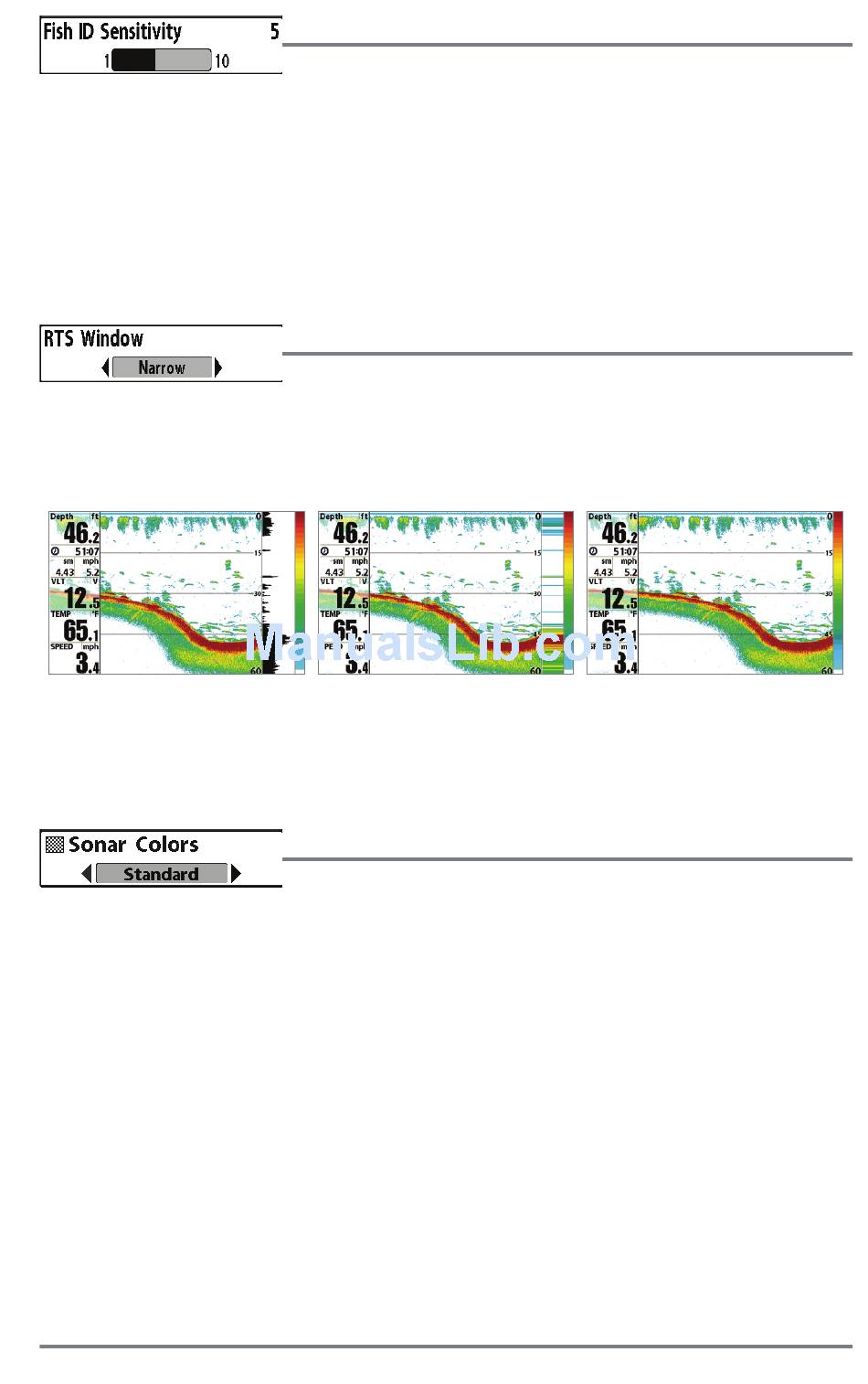

Fish ID Sensitivity

Settings: Low = 1, High = 10; Default = 5
Real Time Sonar (RTS) Window
Settings: Wide, Narrow, Off; Default = Narrow
RTS Window (Narrow)

Sonar Colors

Settings: Gray, Green, Inverse, Original Palette, Palette 1, Palette 2, Palette
3; Default = Palette 1
113
RTS Window (Off)
Sonar Menu Tab
