Bottom View; Zoom Width - Humminbird HELIX 5 SERIES Operation Manual

Bottom View selects the method used to represent bottom and structure on the display.
• Structure ID represents weak returns in blue and strong returns in red. If the Sonar Colors
palette is changed, the Structure ID will display the strongest return as specified by the
palette.
• WhiteLine highlights the strongest sonar returns in white, resulting in a distinctive
outline. This has the benefit of clearly defining the bottom on the display.
See What's on the Sonar Display: Sonar Colors and Bottom View for more information.
Zoom Width adjusts the width of the zoomed view on the Sonar Zoom View, which is on the left
side of the display. See Views: Sonar Zoom View for more information.
50 kHz Sensitivity changes the sensitivity of the 50 kHz beam. Increasing the 50 kHz Sensitivity
will display additional weak returns, and decreasing the 50 kHz Sensitivity will display fewer
weak returns.
NOTE: 50 kHz Sensitivity is particularly useful for adjusting the sensitivity of the 50 kHz sonar returns in the
200/50 kHz Split Sonar View. The 50 kHz sensitivity can be adjusted without affecting the sensitivity of the
200 kHz returns shown in the 200 kHz sonar window.
83 kHz Sensitivity changes the sensitivity of the 83 kHz beam. Increasing the 83 kHz Sensitivity will
display additional weak returns, and decreasing the 83 kHz Sensitivity will display fewer weak returns.
NOTE: 83 kHz Sensitivity is particularly useful for adjusting the sensitivity of the 83 kHz sonar returns in
the 200/83kHz Split Sonar View. The 83 kHz sensitivity can be adjusted without affecting the sensitivity
of the 200 kHz returns shown in the 200 kHz sonar window.

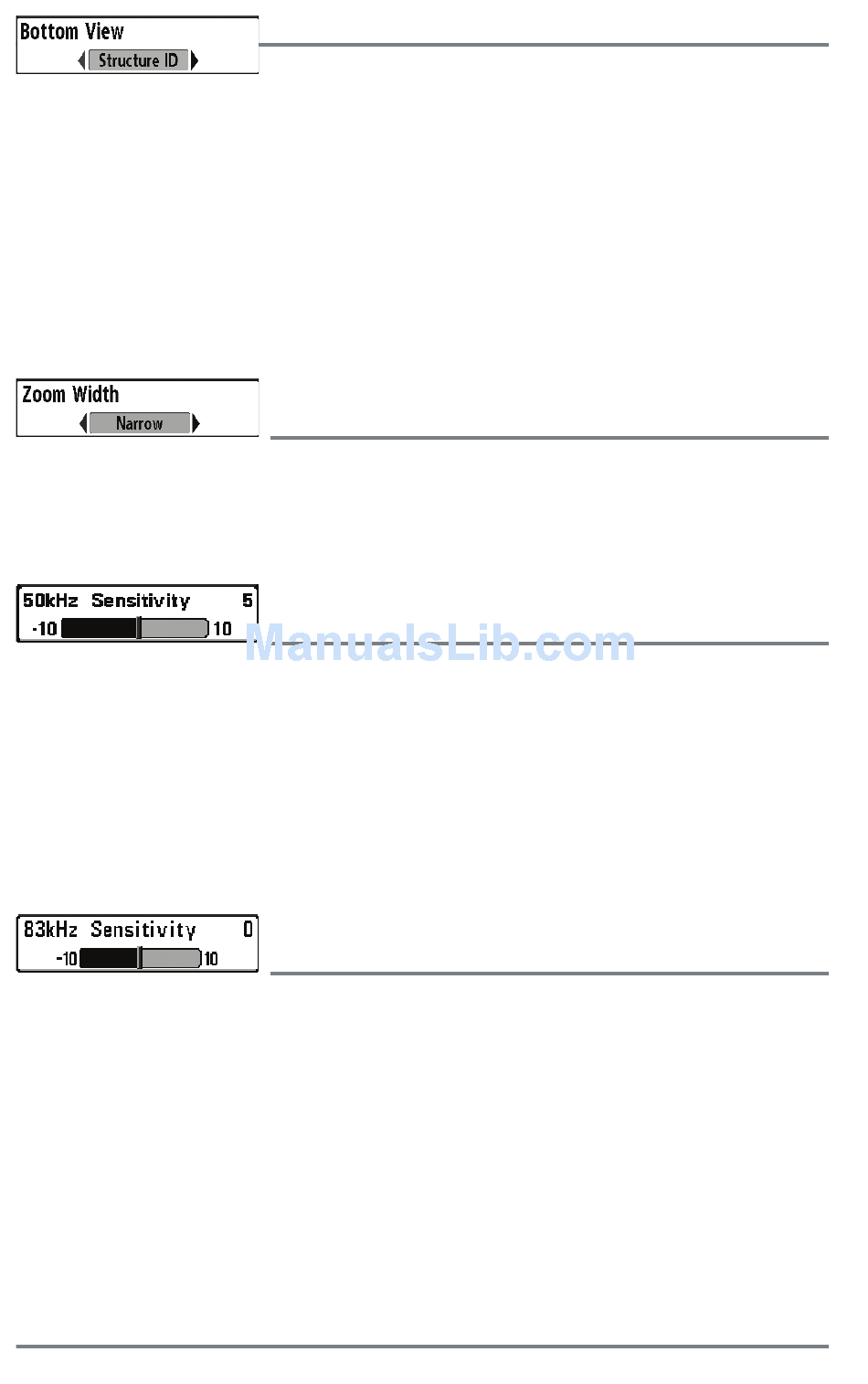

Sonar Menu Tab

Bottom View

Settings: Structure ID, WhiteLine; Default = Structure ID

Zoom Width

(Sonar Zoom View only)
Settings: Narrow, Medium, Wide; Default = Narrow
50 kHz Sensitivity
(Advanced, HELIX XD GPS only)
Settings: -10 to +10, Default = 0
83 kHz Sensitivity
(Advanced, HELIX SONAR GPS only)
Settings: -10 to +10, Default = 0
114
