GPS NMEA Y-CABLE Installation Guide
Overview

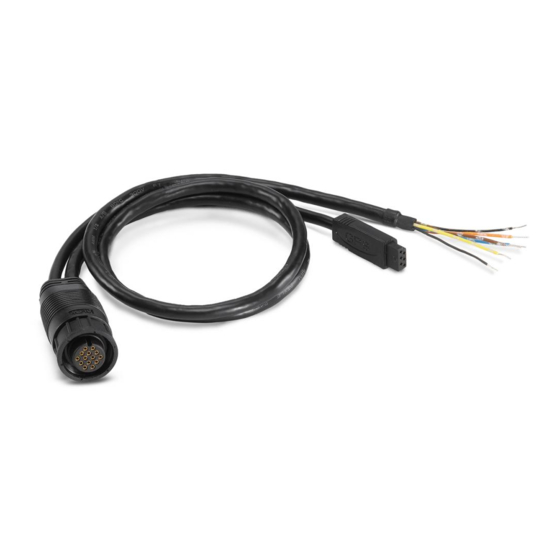

Use the GPS NMEA Y-Cable to connect the Humminbird® GPS Receiver and a NMEA 0183 accessory
to the SOLIX® and ONIX® control heads. We encourage you to read this guide completely before you
start the installation so you may understand the installation requirements.
Technical Support: Contact Humminbird Technical Support through our Help Center at https://
humminbird-help.johnsonoutdoors.com/hc/en-us.
NOTE: Product specifications and features are subject to change without notice.
1
| Connecting to the GPS Receiver
Use the instructions in this section to connect the Humminbird GPS Receiver to the Y-Cable.
1. Turn off the power for the SOLIX or ONIX control head and each accessory.
WARNING! Turn off power for all related equipment before you start the installation.
2. See the installation guide included with your GPS Receiver to install it on your boat. Make sure
the cable is long enough to accommodate the planned route to the control head. See the GPS
Receiver installation guide for details.

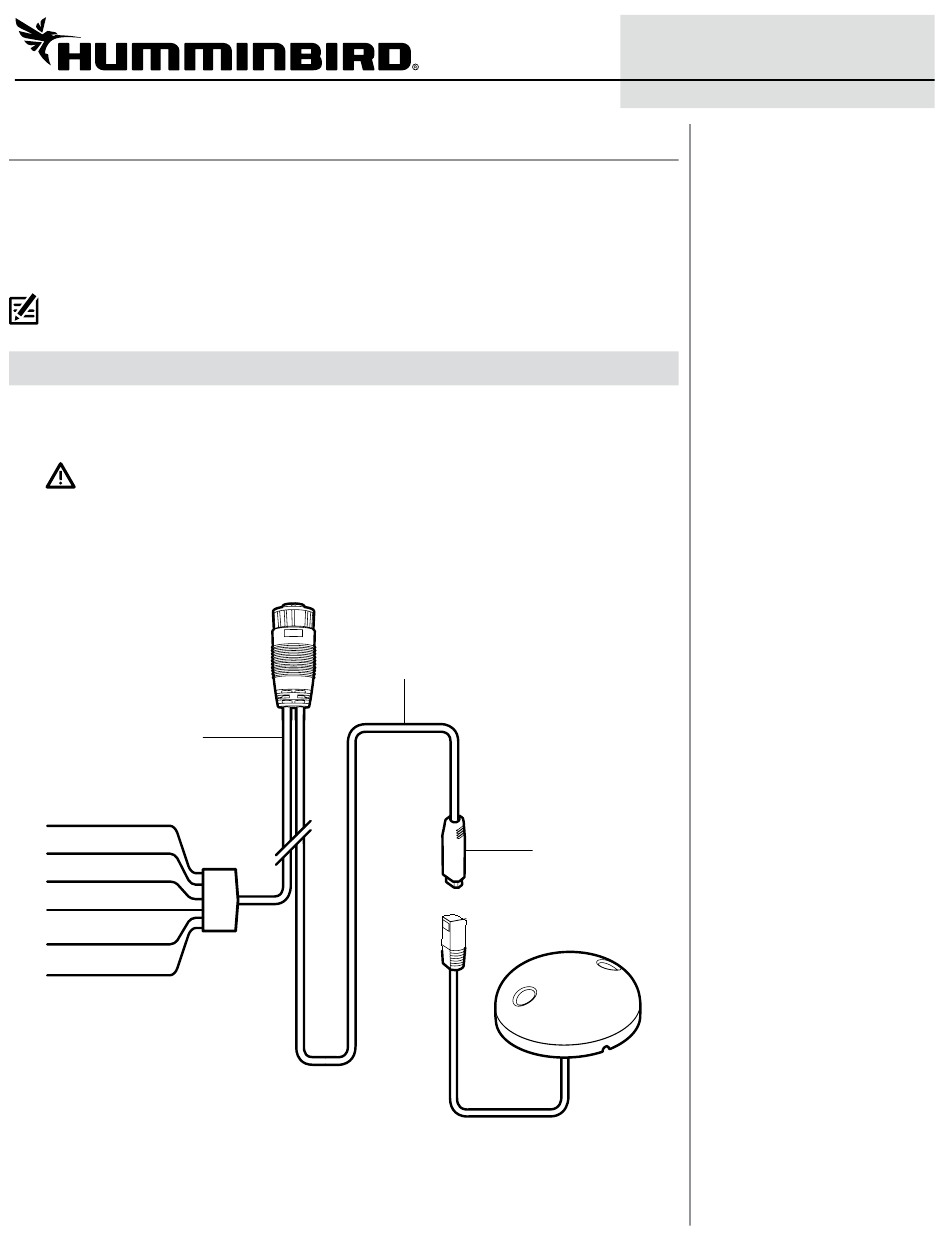

3. Connect the GPS Receiver connector to the connector on the Y-Cable.
NMEA 0183 (2)
ORANGE
BLUE
YELLOW
BROWN
BLACK
DRAIN
NMEA 0183 (1)
Y-Cable
Connector
GPS Receiver
1
532139-2_D
Advertisement
Table of Contents
Related Manuals for Humminbird GPS NMEA Y-CABLE
Summary of Contents for Humminbird GPS NMEA Y-CABLE
- Page 1 532139-2_D Overview Use the GPS NMEA Y-Cable to connect the Humminbird® GPS Receiver and a NMEA 0183 accessory to the SOLIX® and ONIX® control heads. We encourage you to read this guide completely before you start the installation so you may understand the installation requirements.
- Page 2 The accessory should include a NMEA 0183 data cable with bare wires for connecting to the Humminbird Y-Cable. Refer to the accessory’s user manual for information about the data cable. WARNING! Turn off power for all related equipment before you start the installation.
- Page 3 532139-2_D Survol Utilisez le câble en Y GPS NMEA pour brancher le récepteur GPS Humminbird® et l’accessoire NMEA 0183 aux têtes de commande SOLIX® et ONIX®. Nous vous encourageons à lire l’intégralité de ce guide avant de commencer l’installation afin de prendre connaissance des exigences.
- Page 4 | Branchement de l’accessoire 0183 NMEA aux fils nus L’accessoire doit comprendre un câble de données 0183 NMEA avec fils nus pour le branchement au câble en Y Humminbird. Reportez-vous au manuel de l’utilisateur de l’accessoire pour des informations sur le câble de données.
