Depth Offset; Speed Calibration - Humminbird HELIX 5 SERIES Operation Manual

NOTE: The availability of the digital readout information corresponds with the view selected, the
accessory attached, and whether or not you are navigating.

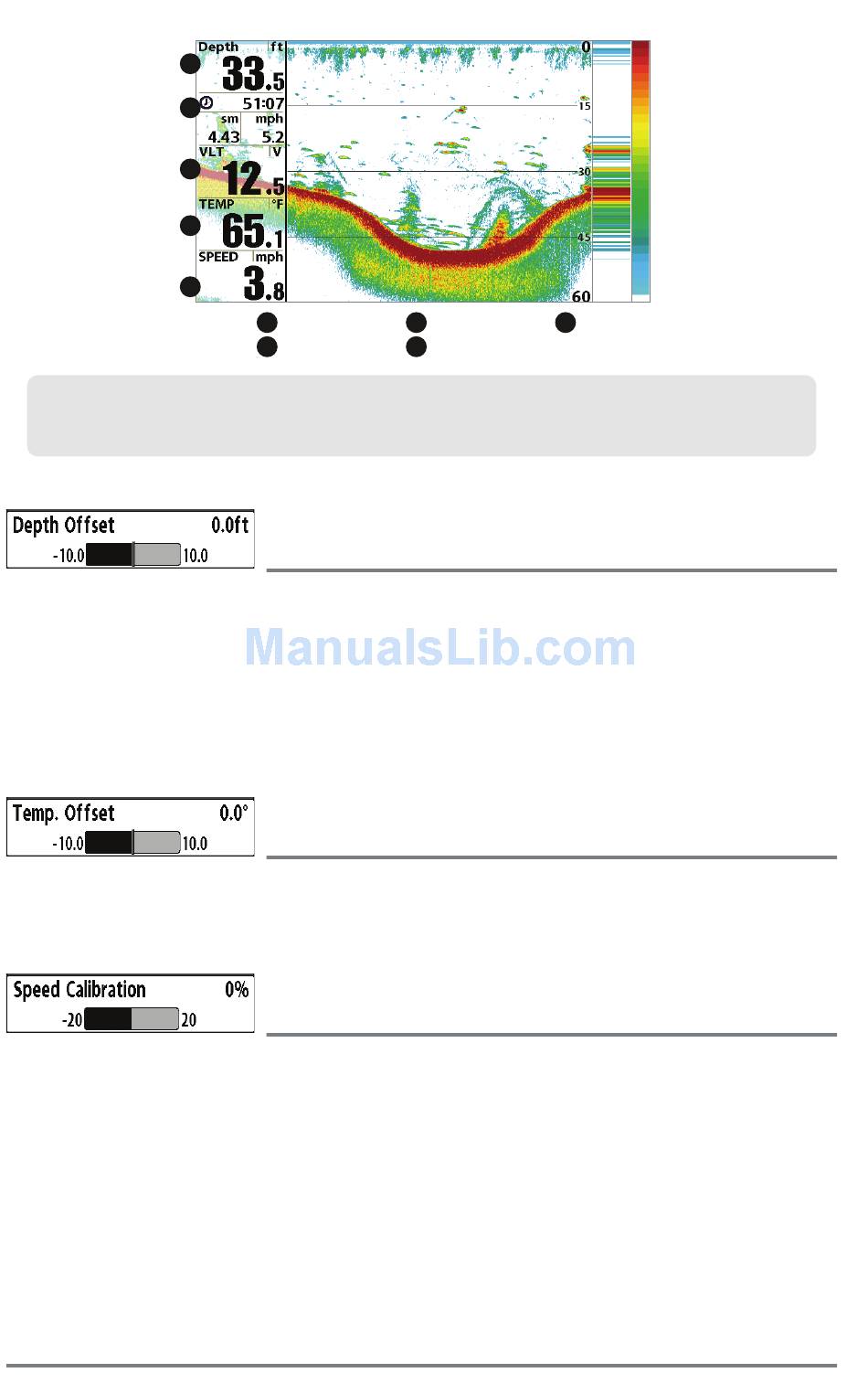

Depth Offset will adjust the digital depth readout to indicate depth from the waterline or boats
keel. Enter a positive vertical measurement from the transducer to the waterline to read the depth
from the waterline. Enter a negative vertical measurement from the transducer to keel to read the
depth from the keel.
Temp Offset will adjust the temperature readout by the amount entered.
Speed Calibration will adjust the speed readout by the percentage entered, and will appear in
the menu if a Speed accessory is connected and the paddlewheel has moved at least once.
Setup Menu Tab
1
2
3
4
5
1 Readout 1
2
Readout 2

Depth Offset

(Advanced, HELIX SONAR GPS, HELIX DI GPS, HELIX XD GPS only)
Settings: -10.0 to +10.0 feet or -3.0 to +3.0 meters [International models
only]; Default = 0.0, or Off
Temp. Offset
(Advanced,
Settings: -10.0 to +10.0 degrees, Default = 0.0, or Off

Speed Calibration

(Advanced, with Speed paddlewheel only)
Settings: -20% to +20%, Default = 0%
Sonar View
3 Readout 3
4
Readout 4
temperature input required
136
5 Readout 5
)
