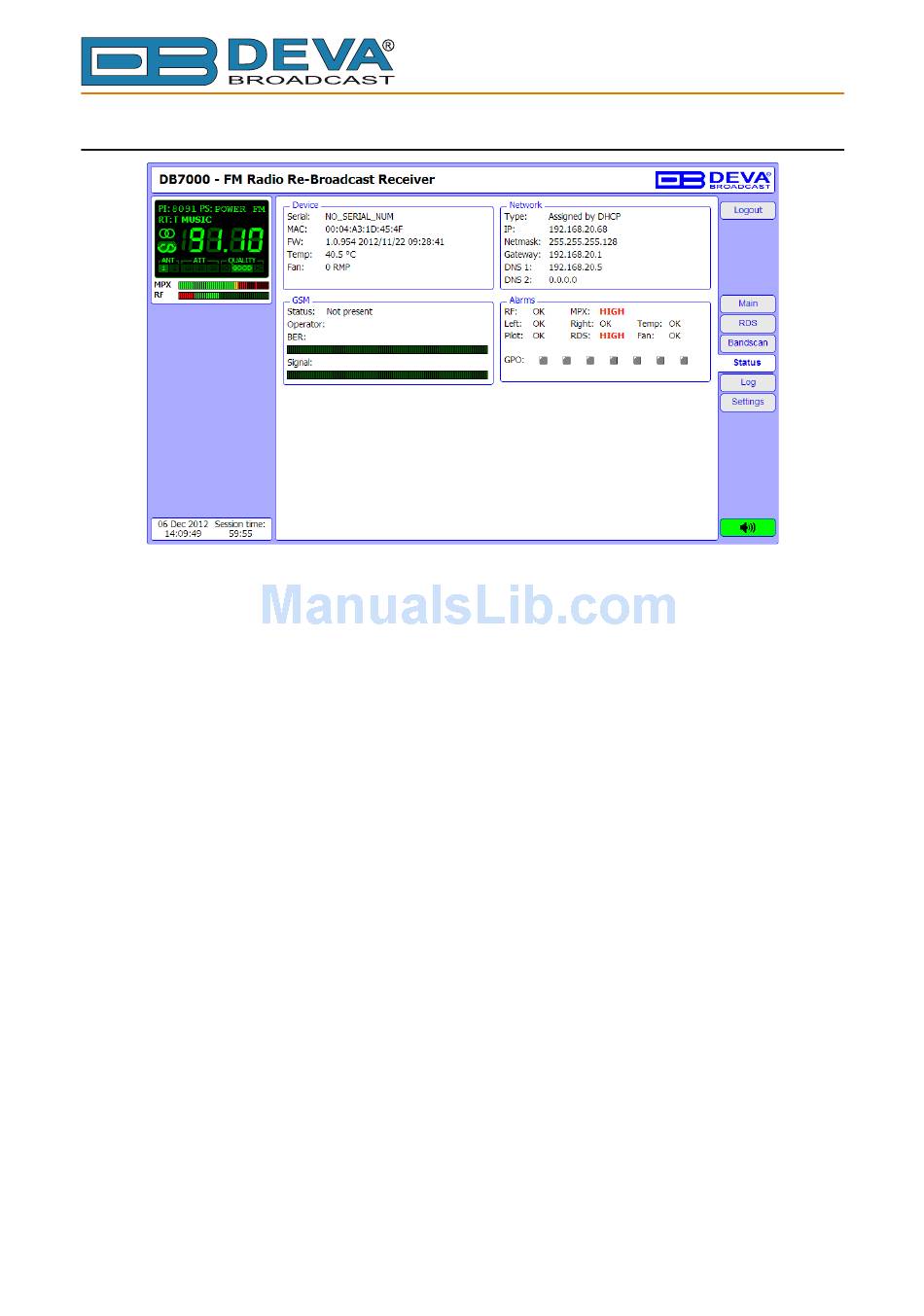

STATUS SCREEN

The status tab shows the alarm status of each parameter, along with the basic device and network

status (IP address, MAC, etc.).

The Alarm parameters (RF, MPX, Pilot etc.) have several conditions:

- In range - green OK;

- Out of range - red LOW or HIGH;

- Signal monitoring is not enabled - n/a.

- 56 -
