- Page 1 MAINTENANCE AND OPERATION INSTRUCTION MANUAL DB46 Compact DAB/DAB+ Monitoring Receiver Publish Date: 06-Mar-2018...
-
Page 2: Table Of Contents
Technical Specifications ........................8 Block Diagram ..........................9 Factory Default Settings ........................10 How to reset the DB46 to its factory defaults without having access to the WEB interface? Safety Precautions ..........................11 Panel Indicators and Appointments ....................12 Front Panel............................ 12 Rear Panel ............................. - Page 3 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 4: Introduction
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Introduction DEVA Broadcast Ltd. is an international communications and high-technology manufacturing organization, its corporate headquarters and facility located in Burgas, Bulgaria. The company serves the broadcast and corporate markets worldwide – from consumers and small businesses to the largest global organizations. -
Page 5: Typographic Conventions
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Typographic conventions This manual uses the following typographic conventions: Style Used for NOTE Important notes and recommendations Example Used when example text is cited “Menu”... -
Page 6: General Information
Users can also easily control and set up their DB46 unit remotely through their PC, tablet or smart phone via a standard web browser; iOS and Android devices are also supported. -
Page 7: Product Features
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Product Features • DAB/DAB+ compliant receiver • Support for Program Associated Data (PAD) • Predefined DAB channels scan or manual tune •... -
Page 8: Technical Specifications
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com TECHNICAL SPECIFICATIONS DAB/DAB+ RADIO RF frequency range 168 - 240 MHz DAB/DAB+ Band III Channels 5A - 13F Sensitivity 18 dBµV Input connector BNC 50Ω... -
Page 9: Block Diagram
Communication Front panel Ethernet Because of the all-digital, minimalist-discrete-component nature of device circuitry, we have not provided schematic diagrams of the DB46 in this Manual. Please, note that: NO USER-SERVICEABLE COMPONENTS INSIDE. REFER ALL SERVICING TO QUALIFIED TECHNICAL PERSONNEL. - 9 -... -
Page 10: Factory Default Settings
BUTTON Afterwards, connect the power supply cable to the unit and keep the RESET button hold until the POWER led starts blinking. Release the RESET button and wait for DB46 to reboot with the factory default settings. - 10 -... -
Page 11: Safety Precautions
DEVA Broadcast Ltd. declines all responsibility if any one of the safety rules given herein is not observed. DEVA Broadcast Ltd. declines all responsibility if the end-user resells the product. -
Page 12: Panel Indicators And Appointments

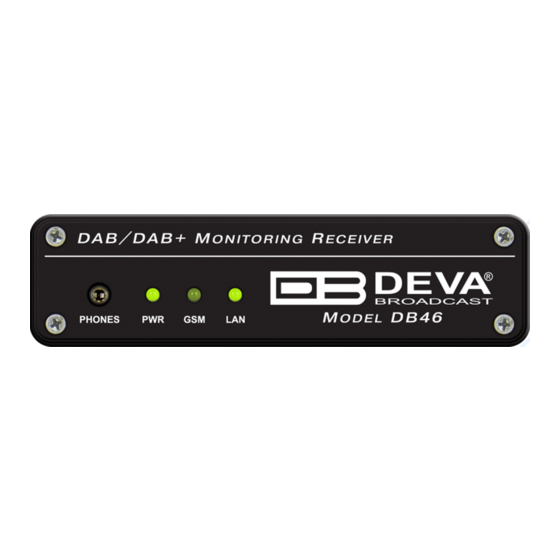

Panel Indicators and Appointments FRONT PANEL DAB/DAB+ M ONITORING ECEIVER DB46 ODEL PHONES 1 - Phones Output – Audio signal from the tuned frequency. 2 - Power LED Indicator 3 - GSM LED Indicator. This LED can in one of the following states: Off –... -
Page 13: Rear Panel
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REAR PANEL POWER 12V / 2A ANTENNA MAX 120 dBµV MODEM 1 - Power Supply (12V, 2A); 2 - Antenna Input – BNC connector for FM Antenna; 3 - GSM Modem Connector –... -
Page 14: Getting Started
Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Getting Started In order for the normal operation of the DB46 to be guaranteed, you will need fulfill the following conditions: 1. Standard Ethernet 10/100M connection; 2. Correctly assigned Network configuration and device settings. -
Page 15: Network Settings
Assigned by DHCP HTTP Port The DB46 is controlled trough a build in WEB Server and a standard Web browser can be used to monitor its status or to make some adjustments. To operate the device you need to know its IP Address. -
Page 16: Web Interface Menu Pages
This section of the WEB interface is constant part of each screen, hence allowing immediate tuner interactions. The section will not be visible when the Settings tabs are opened. DB46 “dashboard” content: 1. DAB+ Logo 2. Frequency indicator showing currently tuned frequency;... - Page 17 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Drop-down Select Service menu options: A list containing all services available in the current Ensemble. - 17 -...
-
Page 18: Main
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com MAIN The Main Screen of the WEB Interface shows all the mandatory parameters represented as LED readings and the current DAB station status (DAB Station). You can easily select the preferred audio frequency by using the selection buttons, placed on the left part of the screen. -
Page 19: Ensemble
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com ENSEMBLE Ensemble Information as regards the currently selected ensemble as regards the Channel, Label, Ensemble ID, Workload, number of available Services and Sub-channels, SNR (signal-to-noise) and CNR (carrier-to-noise) indicators in dB can be found in this section. -
Page 20: Service
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SERVICE This page contains information on all the mandatory parameters of the currently selected service. Slideshow is also displayed (if available). - 20 -... -
Page 21: Band Scan
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com BAND SCAN The bandscanning mode could be customized by setting range of the scan. Once you have set range and specified whether all results or the Valid only will be shown, the [Start] button should be pressed in order for the Bandscan process to be initiated. -
Page 22: Status
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com STATUS The status tab shows the alarm status of each parameter of the preset frequencies, along with the basic device and network status (IP address, MAC, etc.). If a GSM modem is connected, the status of the modem will also be depicted in the relevant section. -
Page 23: Log
Here are listed all the Device System Events. The local measurements and logs are saved in the internal device memory. All log files can be downloaded via the built-in FTP server. For information on how the connection between the DB46 and an FTP Client should be configured, please refer to “Download files via FTP”... -
Page 24: General Settings
Settings bar remains locked. In order for the security of DB46 to be enhanced, a new username and password could be set from the Security section. By choice, you can change the name of the device (General section). -
Page 25: Tuner Settings
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com TUNER SETTINGS The Tuner Section gives control over Tuner settings, allowing you to select a DAB channel and service. All available services will be listed below once the list is collected from the multiplex data. - 25 -... -
Page 26: Service Settings (Services 1 To 6)
E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com SERVICE SETTINGS (SERVICES 1 TO 6) The DB46 can monitor up to 6 preset DABServices at regular intervals and send alarm notification via E-mail, SMS, SNMP and GPO. Every Channel consists of a group of settings (explained in details below), which are used when monitoring and alerting. - Page 27 In order for the applied settings to be used press the [Save] button, placed on the bottom right part of the screen. [Export] will export the currently applied alarms settings. [Import] allows you to import the Service settings from other DB46. - 27 -...
-
Page 28: Communication Settings
DHCP client to be activated, the function should be enabled. When the DHCP client is activated, all assigned values will be shown in the relevant fields on the Status Screen. If due to any reason, the DHCP procedure cannot be completed, DB46 will use AutoIP and will generate an IP Address. - Page 29 Once all needed settings are applied, use the [Test] button to generate a test notification, which upon success will be received by the SNMP Manager. Press the [Download] button to download the latest available DB46 SNMP MIB file. NOTE: The MIB file may vary from one firmware revision to another. Downloading this file from the device, guarantees that you have the proper MIB file.
-
Page 30: Outputs Settings
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com OUTPUTS SETTINGS The general purpose outputs settings are applied through this page. Function, type and pulse time for each of the GPOs could be set individually. You can choose between the available functions. Type is used for specifying of the active level. -
Page 31: Other Settings
[All except IP] – all settings, except for the Network settings (IP Address) will be deleted. To restore DB46 to its Factory Defaults, press [All except IP]. A new window will appear – confirm that you want to restore the factory defaults and wait for the process to be completed. On completion of the process, the settings should have the proper default values. -
Page 32: Alarm Triggers
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX A ALARM TRIGGERS After collecting all the data, the DSP-based core compares the values measured with the predefined by the user threshold levels, for all the alarms monitored. In case that a parameter is beyond limits, the device will initiate the sending of an alarm notification via the selected communication path. - Page 33 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com When an observation event takes place, the Alarm Trigger’s State will refresh, if necessary. Should we consider an instance when the Alarm Trigger is in Idle state, having in mind that an alarm is not triggered immediately when a parameter level passes beyond threshold: If the parameter level becomes stable, within Thresholds, and the Alarm Trigger Time is not elapsed, then the Alarm Trigger remains in Idle state.
-
Page 34: Alarm Notifications
Alias, date and time of Alarm triggered, channel number, frequency and information about the Alarm activation/deactivation. The basic signal parameters are also included. Example for E-mal Notification: Date: 04 Nov 2013, 07:31:11 DB46 reports ACTIVE alarm on 91.10MHz – Power FM (CH1) Alarm: RDS > 6.5kHz Signal parameters: RF: 51.5dBuV MPX Total: 89.9kHz... -
Page 35: Gsm Modem Option - Features And Usage
The DEVA DAB/DAB+ Monitoring receivers supports a very wide range of GSM Modems. However, we suggest the usage of the following model - Sierra Wireless AirLink. This is the modem that is provided from DEVA Broadcast if the feature has been ordered along with the DEVA Units. -
Page 36: Remote Audio Listening
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com REMOTE AUDIO LISTENING Type the following text and send it as SMS to the Device’s GSM number: Listen F Upon receiving your ‘Listen’ request via SMS, the device will call you back. When you take the call, you will hear the audio on the service F IMPORTANT: F is the service number (preset number set in the device). -
Page 37: Initialization Procedure For Sierra Wireless Airlink Fxt009 Gsm Modem
INITIALIZATION PROCEDURE FOR SIERRA WIRELESS AIR- LINK FXT009 GSM MODEM in regards with the following DEVA Units: - DB46 – Compact DAB/DAB+ Monitoring Receiver - DB7012 – Professional DSP-based DAB/DAB+ Monitoring Receiver 1. Setting up the modem Prior to connecting/using the GSM modem for the first time, kindly read the manufacturer’s user manual. - Page 38 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com Upon powering on, the modem should start working with its factory settings. To see these settings type the command “AT&V”. The modem will respond with the factory default settings: Q:0 V:1 S0:000 S2:043 S3:013 S4:010 S5:008 +CR:0 +CRC:0 +CMEE:0 +CBST:0,0,1 +SPEAKER:1 +ECHO:0 &C:0 &D:2 %C:0...
-
Page 39: Connecting With Deva Unit
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com 2. Connecting with DEVA Unit Communication Cable Description: DEVA Unit port GSM modem Note DB 15 female DB 15 male –> com TX –>... -
Page 40: How Should I Configure The Connection Between My Deva Device And An Ftp Client
65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com APPENDIX C HOW SHOULD I CONFIGURE THE CONNECTION BETWEEN MY DEVA DEVICE AND AN FTP CLIENT? In order for a connection to be established the following setting should be applied: 1. - Page 41 65 Aleksandar Stamboliyski Str., 8000 Bourgas, Bulgaria Tel: +359 56 820027, Fax: +359 56 836700 E-mail: office@devabroadcast.com ,Web: www.devabroadcast.com 3. Example of FTP Client (FileZilla) Settings In some cases, FileZilla’s “Quick connect” feature is not able to connect with the DEVA unit. That is why we recommend the device to be assigned in the program manually.
-
Page 42: Warranty Terms And Conditions
A. Equipment will not be accepted for Warranty or other repair without a Return Authorization (RA) number issued by DEVA Broadcast Ltd. prior to its return. An RA number may be obtained by calling the factory. The number should be prominently marked on the outside of the shipping carton. -
Page 43: Product Registration Card
Your signature* *Signing this warranty registration form you are stating that all the information provided to DEVA Broadcast Ltd. are truth and correct. DEVA Broadcast Ltd. declines any responsibility for the provided information that could result in an immediate loss of warranty for the above specified product(s).
